analytics-publisher is crashing due to a breaking change in binderhub

[consideRatio]

@yuvipanda wrote:

https://archive.analytics.mybinder.org/ looks like it stopped last week

Inspection gave me that the pod was unhealthy and failing to start.

analytics-publisher                 0/1     1            0           2y2d

Events:
  Type     Reason   Age                     From     Message
  ----     ------   ----                    ----     -------
  Normal   Pulled   32m (x2756 over 24d)    kubelet  Container image "jupyterhub/mybinder.org-analytics-publisher:2020.12.4-0.dev.git.4529.h99dd8b0" already present on machine
  Warning  BackOff  2m51s (x64858 over 9d)  kubelet  Back-off restarting failed container

The following logs were seen

Archiving today's events 2022-10-30
Finding blobs with prefix binderhub-events-text/2022/10/30
Traceback (most recent call last):
  File "/srv/run.py", line 34, in <module>
    archive_events(
  File "/srv/archiver.py", line 54, in archive_events
    event = json.loads(json.loads(line)["jsonPayload"]["message"])
KeyError: 'message'

Understanding what caused this

The line of code that fails

mybinder.org-deploy/images/analytics-publisher/archiver.py

Lines 38 to 54 in 9ef1ae2

	storage_client = storage.Client()
	src_bucket = storage.Bucket(storage_client, source_bucket)
	dest_bucket = storage.Bucket(storage_client, destination_bucket)
	prefix = log_name + "/" + date.strftime("%Y/%m/%d")
	print(f"Finding blobs with prefix {prefix}")
	src_blobs = src_bucket.list_blobs(prefix=prefix)
	count = 0
	all_events = []
	for src_blob in src_blobs:
	with tempfile.TemporaryFile(mode="wb+") as temp:
	src_blob.download_to_file(temp)
	temp.seek(0)
	for line in temp:
	event = json.loads(json.loads(line)["jsonPayload"]["message"])

The configuration of source bucket for prod

mybinder.org-deploy/config/prod.yaml

Lines 201 to 206 in 9ef1ae2

	analyticsPublisher:
	enabled: true
	project: binderhub-288415
	destinationBucket: binder-events-archive
	events:
	sourceBucket: binder-events-raw-export

The GCP bucket

The uploaded data are lines of JSON objects, where how each object looks has changed.

Before

{
    "insertId": "d1iovxfoalkix",
    "jsonPayload": {
        "message": "{\"timestamp\": \"2022-10-16T00:10:39.415163Z\", \"schema\": \"binderhub.jupyter.org/launch\", \"version\": 5, \"provider\": \"GitHub\", \"spec\": \"spyder-ide/spyder/5.x\", \"ref\": \"a76b6f09d692ebf09049fb83d26c1e7e669fbaa6\", \"status\": \"success\", \"build_token\": true, \"origin\": \"ovh.mybinder.org\"}",
        "python_logger": null
    },
    "logName": "projects/binderhub-288415/logs/binderhub-events-text",
    "receiveTimestamp": "2022-10-16T00:10:39.482690331Z",
    "resource": {
        "labels": {
            "project_id": "binderhub-288415"
        },
        "type": "global"
    },
    "severity": "INFO",
    "timestamp": "2022-10-16T00:10:39.415195Z"
}

where the "jsonPayload.message" field is a string of JSON that would parse like this:

{
    "timestamp": "2022-10-16T00:10:39.415163Z",
    "schema": "binderhub.jupyter.org/launch",
    "version": 5,
    "provider": "GitHub",
    "spec": "spyder-ide/spyder/5.x",
    "ref": "a76b6f09d692ebf09049fb83d26c1e7e669fbaa6",
    "status": "success",
    "build_token": true,
    "origin": "ovh.mybinder.org"
}

After

With 2022-10-20 - 11:00 and onwards, a new format started showing that didn't include jsonPayload.message.

{
    "insertId": "1de0btlfd1znx0",
    "jsonPayload": {
        "build_token": true,
        "origin": "gesis.mybinder.org",
        "provider": "GitLab",
        "ref": "18b0c773b170ce45b23547f135e783174e81c18f",
        "schema": "binderhub.jupyter.org/launch",
        "spec": "comp2421-numerical-computation%2Fbook/master",
        "status": "success",
        "timestamp": "2022-10-30T00:00:37.591502Z",
        "version": 5
    },
    "labels": {
        "python_logger": "binderhub.events"
    },
    "logName": "projects/binderhub-288415/logs/binderhub-events-text",
    "receiveTimestamp": "2022-10-30T00:00:37.641295756Z",
    "resource": {
        "labels": {
            "project_id": "binderhub-288415"
        },
        "type": "global"
    },
    "severity": "INFO",
    "sourceLocation": {
        "file": "<string>",
        "function": "emit",
        "line": "25"
    },
    "timestamp": "2022-10-30T00:00:37.591546Z"
}

Hypothesis concluded

After 2022-10-20 (about 11:00), the jsonPayload changed its structure, where jsonPayload.message is unpacked directly in jsonPayload it seems.

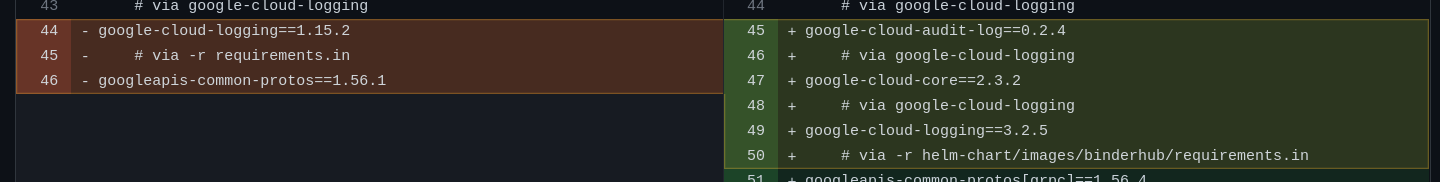

This coincides with #2369, which in turn includes this changes

That in turn comes from jupyterhub/binderhub#1536

Action points

• Open an issue about catching this failure on deployment to staging
  mybinder.org-deploy upgrade succeeded even though analytics-publisher didn't startup #2391
• Resolve failure using one option below
  1. To adjust analytics-publisher parsing uploaded data
     We could make analytics-publisher script adjust to the new format, or if needed, attempt to parse either.
     analytics-publisher: fix for breaking binderhub change, refreeze dependencies, modernize Dockerfile #2393
  2. To adjust binderhub uploads data
     We could make binderhub, using google's logger library, manage to retain the format we used previously somehow.
  3. Downgrading software in binderhubs image
     Using v1 caused a problem bound to happen sooner or later, so working around it would just give us some time at best - and be an effort to do by itself.

I suggest resolving it with adjusting analytics-publisher's parsing of uploaded data in this location

mybinder.org-deploy/images/analytics-publisher/archiver.py

Lines 38 to 54 in 9ef1ae2

	storage_client = storage.Client()
	src_bucket = storage.Bucket(storage_client, source_bucket)
	dest_bucket = storage.Bucket(storage_client, destination_bucket)
	prefix = log_name + "/" + date.strftime("%Y/%m/%d")
	print(f"Finding blobs with prefix {prefix}")
	src_blobs = src_bucket.list_blobs(prefix=prefix)
	count = 0
	all_events = []
	for src_blob in src_blobs:
	with tempfile.TemporaryFile(mode="wb+") as temp:
	src_blob.download_to_file(temp)
	temp.seek(0)
	for line in temp:
	event = json.loads(json.loads(line)["jsonPayload"]["message"])

[consideRatio]

Maybe something like this...

                event = json.loads(line)["jsonPayload"]
                # Account for time when 'message' was nested
                if "message" in event:
                    event.update(json.loads(event["message"]))
                    del event["message"]

in

mybinder.org-deploy/images/analytics-publisher/archiver.py

Lines 53 to 64 in 9ef1ae2

	for line in temp:
	event = json.loads(json.loads(line)["jsonPayload"]["message"])
	# Account for time when 'event' was nested
	if "event" in event:
	event.update(event["event"])
	del event["event"]
	event = process_event(event)
	if debug:
	print(event)
	if not dry_run:
	all_events.append(event)
	count += 1

---

Got to go for now.

[consideRatio]

Seems to work great!

• I've opened A gap of analytics data due to downtime of processing raw data #2394 to reflect that we could try to backfill the processing of raw events to avoid having a gap of processed events data.
• I've opened mybinder.org-deploy upgrade succeeded even though analytics-publisher didn't startup #2391 to reflect that we would benefit from a failure to be logged somewhere if analytics-publisher fails to start properly.
