Problem when adding custom "color_thresholds"

[pimmen85]

i have two sensors in the same card side by side in a horizontal stack, but the options for coloring the line depending on temperature is only working for one of them.

i also wonder if i can remove the points completely, i have tried all options i can find but nothing removes them.

[ildar170975]

No code is provided.

[pimmen85]

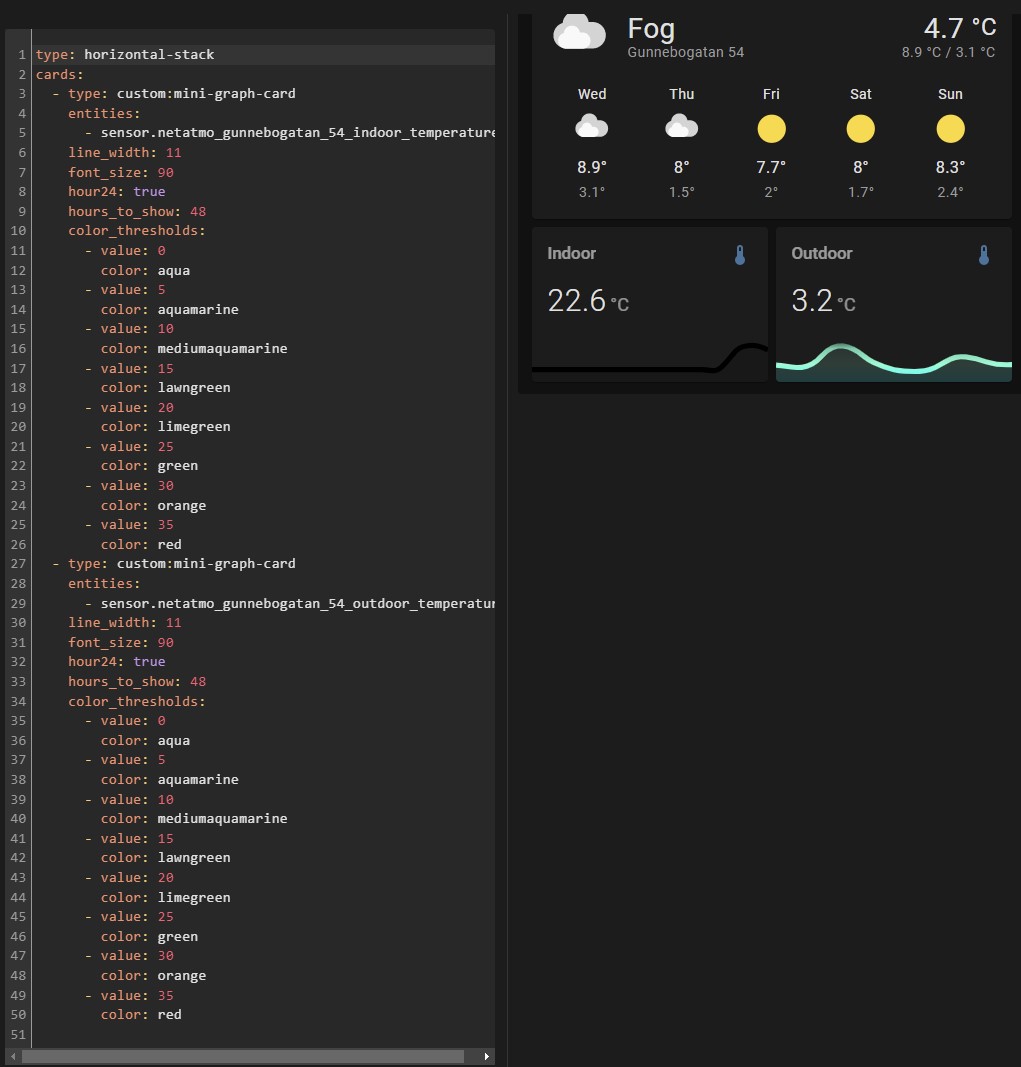

type: vertical-stack
title: Weather
cards:
  - show_current: true
    show_forecast: true
    type: weather-forecast
    entity: weather.gunnebogatan_54
  - type: horizontal-stack
    cards:
      - type: custom:mini-graph-card
        entities:
          - sensor.netatmo_gunnebogatan_54_indoor_temperature
        line_width: 11
        font_size: 90
        hour24: true
        hours_to_show: 48
        color_thresholds:
          - value: 0
            color: aqua
          - value: 5
            color: aquamarine
          - value: 10
            color: mediumaquamarine
          - value: 15
            color: lawngreen
          - value: 20
            color: limegreen
          - value: 25
            color: green
          - value: 30
            color: orange
          - value: 35
            color: red
      - type: custom:mini-graph-card
        entities:
          - sensor.netatmo_gunnebogatan_54_outdoor_temperature
        line_width: 11
        font_size: 90
        hour24: true
        hours_to_show: 48
        color_thresholds:
          - value: 0
            color: aqua
          - value: 5
            color: aquamarine
          - value: 10
            color: mediumaquamarine
          - value: 15
            color: lawngreen
          - value: 20
            color: limegreen
          - value: 25
            color: green
          - value: 30
            color: orange
          - value: 35
            color: red

[ildar170975]

options for coloring the line depending on temperature is only working for one of them.

Do not confirm.

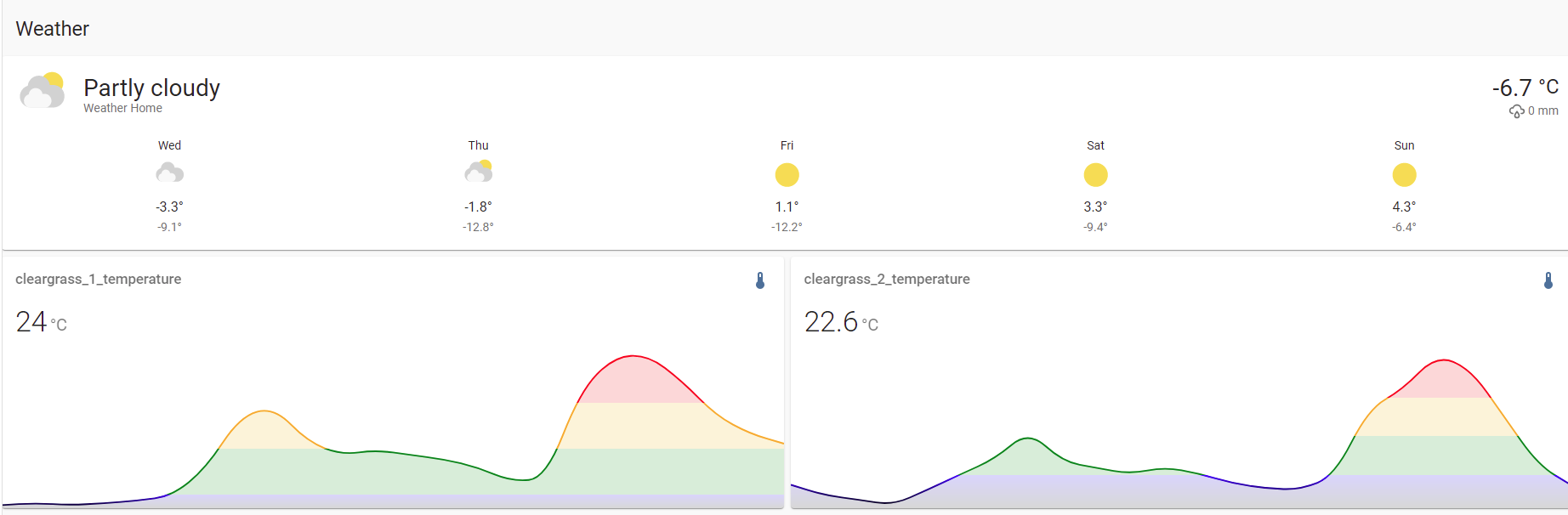

Thresholds work for both cards.

type: vertical-stack
title: Weather
cards:
  - show_current: true
    show_forecast: true
    type: weather-forecast
    entity: weather.home_met
  - type: horizontal-stack
    cards:
      - type: custom:mini-graph-card
        entities:
          - sensor.cleargrass_1_temperature
        <<: &ref_settings
          line_width: 1
          hour24: true
          hours_to_show: 48
          color_thresholds_transition: hard
          color_thresholds:
            - value: 22
              color: blue
            - value: 23
              color: green
            - value: 24
              color: orange
            - value: 25
              color: red
      - type: custom:mini-graph-card
        entities:
          - sensor.cleargrass_2_temperature
        <<: *ref_settings

[ildar170975]

i also wonder if i can remove the points completely, i have tried all options i can find but nothing removes them.

Try show_points: false (link) or points: false (link)

[pimmen85]

something is funny, its something with the entity, because if i choose another entity, it works with the colors, there is no thing like limited length for entity name right?

[ildar170975]

Seems that the graph is not displayed at all. Check with history-graph
Checked the last picture on mobile, did not notice the graph of black color...

Now I created some temperature sensor "netatmo_gunnebogatan_54_outdoor_temperature" - will come back after 24 hours (need to collect some data).

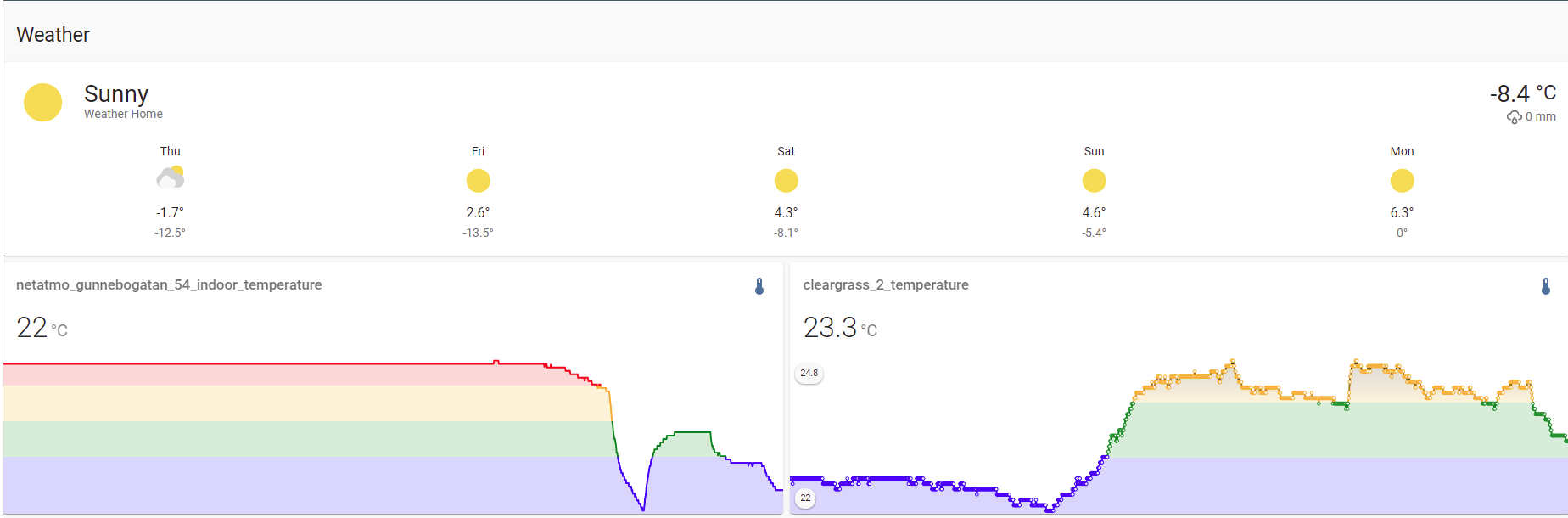

Update:
Do not see any problems:

type: vertical-stack
title: Weather
cards:
  - show_current: true
    show_forecast: true
    type: weather-forecast
    entity: weather.home_met
  - type: horizontal-stack
    cards:
      - type: custom:mini-graph-card
        entities:
          - sensor.netatmo_gunnebogatan_54_indoor_temperature
        <<: &ref_settings
          line_width: 1
          hour24: true
          hours_to_show: 24
          points_per_hour: 60
          smoothing: false
          aggregate_func: last
          color_thresholds_transition: hard
          color_thresholds:
            - value: 22
              color: blue
            - value: 23
              color: green
            - value: 24
              color: orange
            - value: 25
              color: red
      - type: custom:mini-graph-card
        entities:
          - sensor.cleargrass_2_temperature
        <<: *ref_settings
