Hello,
I propose the addition of a 6x13 font 20-character-wide display mode option in FlashFloppy CFG to accommodate the very popular mod 0.96" 128x64 OLED's capability within the factory standard Gotek display window cut-out.
(That's 6 pixels per character x 20 characters wide = 120 total pixels of display's 128 pixels/21 max characters viewable).
Using the existing CFG display option commands, this would mean the addition of a new and adjusted "-narrowest" 16-character command to the current "-narrower" and "-narrow" commands (for 18- and 20-character widths, respectively).
Otherwise, maybe a change to "16-char", 18-char", "20-char" commands (or something to that effect) might be clearer?

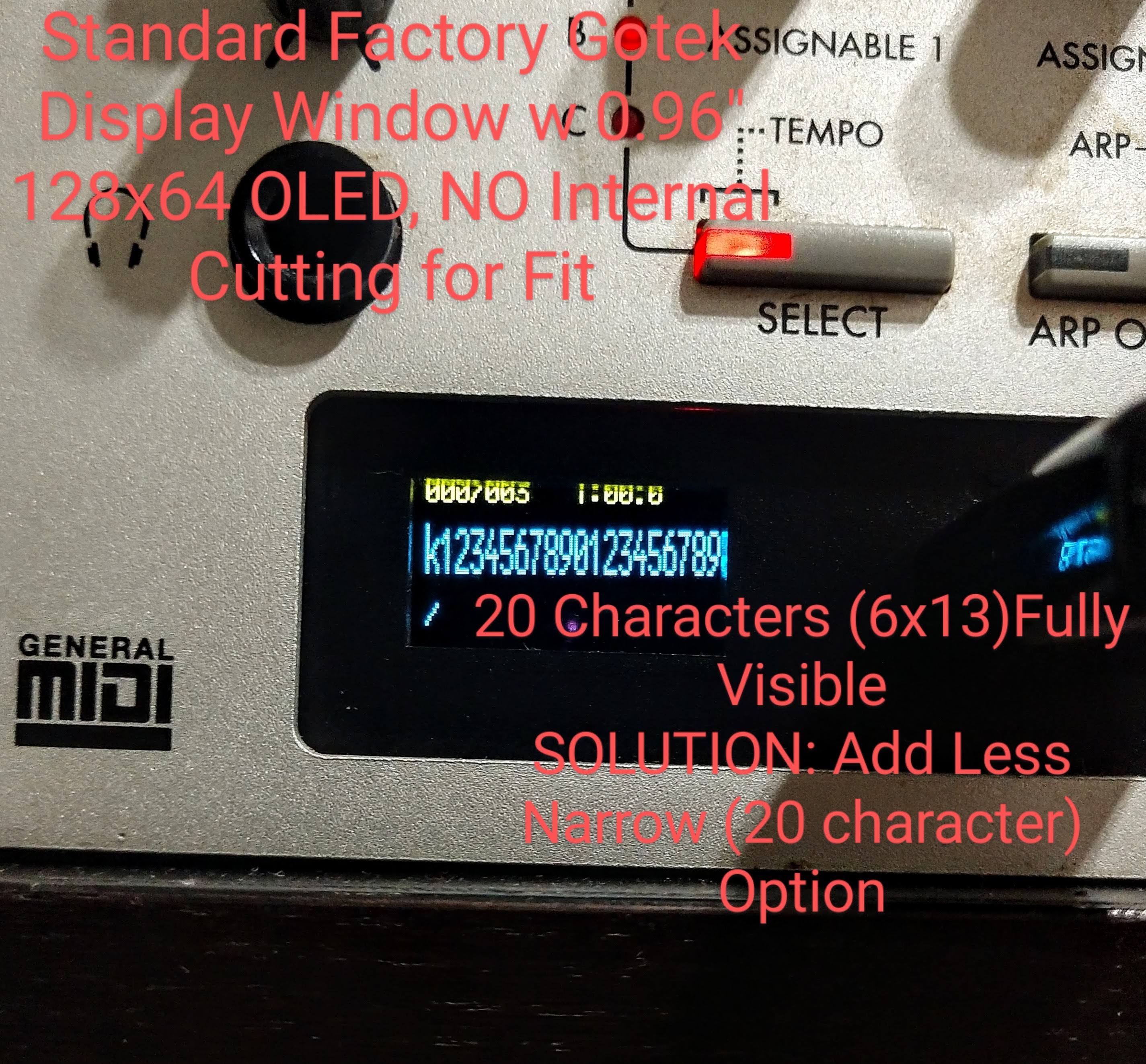

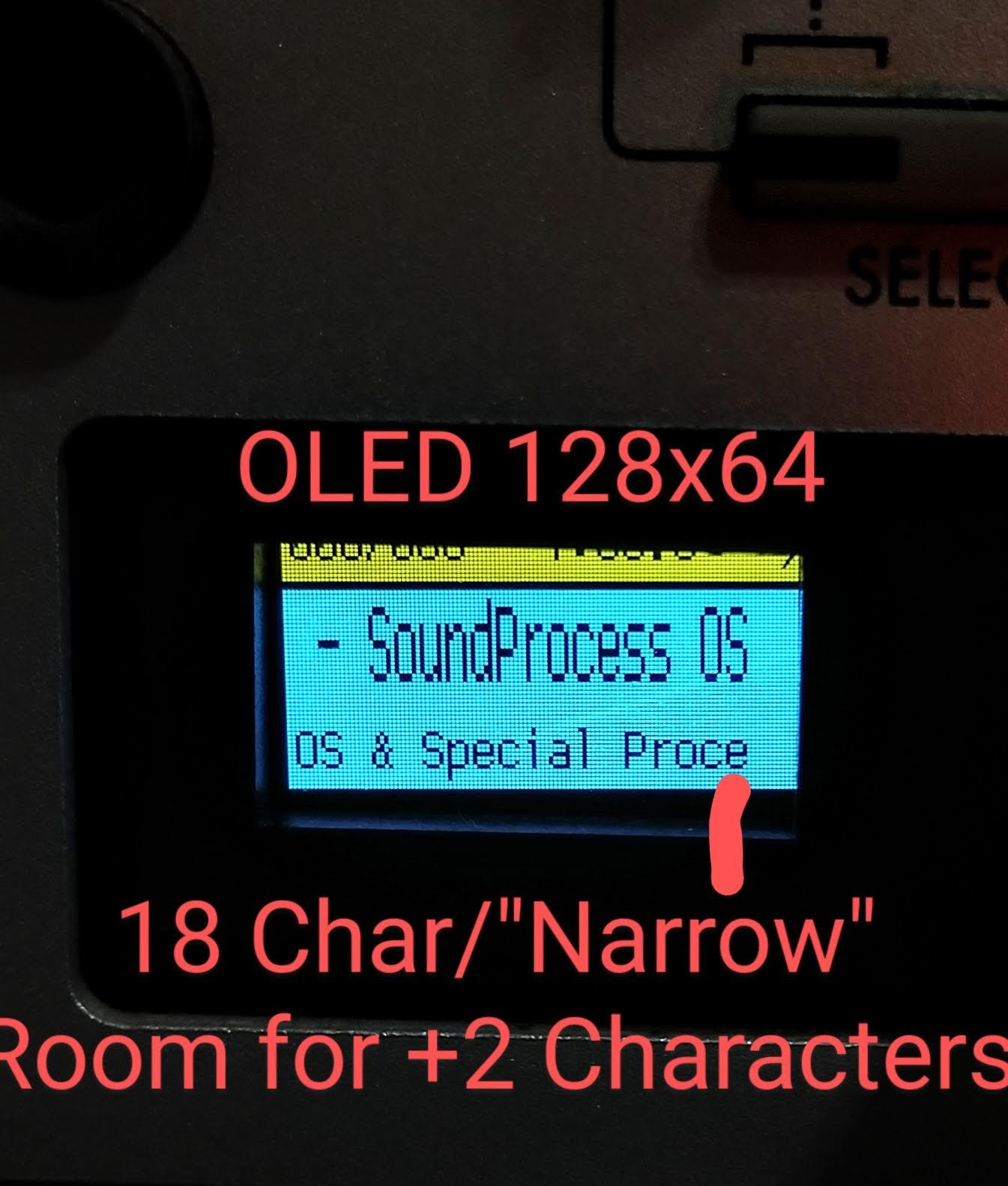

ATTACHED TO THIS POST are two photos demonstrating the 20 character 6x13 font width viewable within a standard factory Gotek housing window on a 0.96" 128x64 OLED. (Sorry, display was mounted only very slightly crooked, but amplified in the close-up pic...)
Thanks for considering, and open to suggestions.
-SynD
