Incomplete install #10067

fredczj · 2023-01-02T11:35:01Z

fredczj
Jan 2, 2023

Hello !

Now that I have validated linkerd usage using command line interface install, which is terribly efficient, I test the deployment into a traditional cluster which has an already installed prometheus/grafana stack, and which uses a private PKI (cert-manager).

So I move the install to helm chart deployment, trying to change the minimum of things, but I try to re-use cert-manager and prometheus things.

The mesh result is working fine. The viz is incomplete, and I cannot understand why and how to debug this.

Basically, all the network metrics are just absent. But when I navigate to the metrics of a specific deployment, I see the live calls metrics generated (top like).

I guess there is a problem with my prometheus binding, but I cannot see how to debug this:

prometheus URL: prometheus-server.monitioring

control-plane deployment:

helm install linkerd-control-plane -n linkerd \
  --set-file identityTrustAnchorsPEM=ca.crt \
  --set identity.issuer.scheme=kubernetes.io/tls \
  --set prometheus.enabled=false \
  --set prometheusUrl=http://prometheus-server.monitoring \
  --set proxyInit.runAsRoot=true \
  --version 1.9.4 \
  linkerd/linkerd-control-plane

viz values:

prometheus:
  enabled: false

prometheusUrl: "http://prometheus-server.monitoring"

Finally, a proxy sidecar log:

[     0.002900s]  INFO ThreadId(01) linkerd2_proxy::rt: Using single-threaded proxy runtime
[     0.003443s]  INFO ThreadId(01) linkerd2_proxy: Admin interface on 0.0.0.0:4191
[     0.003453s]  INFO ThreadId(01) linkerd2_proxy: Inbound interface on 0.0.0.0:4143
[     0.003456s]  INFO ThreadId(01) linkerd2_proxy: Outbound interface on 127.0.0.1:4140
[     0.003458s]  INFO ThreadId(01) linkerd2_proxy: Tap interface on 0.0.0.0:4190
[     0.003461s]  INFO ThreadId(01) linkerd2_proxy: Local identity is default.uidigestv2.serviceaccount.identity.linkerd.cluster.local
[     0.003463s]  INFO ThreadId(01) linkerd2_proxy: Identity verified via linkerd-identity-headless.linkerd.svc.cluster.local:8080 (linkerd-identity.linkerd.serviceaccount.identity.linkerd.cluster.local)
[     0.003466s]  INFO ThreadId(01) linkerd2_proxy: Destinations resolved via linkerd-dst-headless.linkerd.svc.cluster.local:8086 (linkerd-destination.linkerd.serviceaccount.identity.linkerd.cluster.local)
[     0.047287s]  INFO ThreadId(02) daemon:identity: linkerd_app: Certified identity id=default.uidigestv2.serviceaccount.identity.linkerd.cluster.local

What could I check to understand what is going wrong ?

All the checks from linkerd say everything is fine but…

Thank you

Answered by fredczj

Jan 6, 2023

Resolved: I missed a gotemplate replacement in the prometheus scrape configuration for linkerd-proxy:

#10086 (comment)

View full answer

fredczj · 2023-01-02T12:49:33Z

fredczj
Jan 2, 2023
Author

By the way, querying linkerd into prometheus returned no results at all…

0 replies

fredczj · 2023-01-02T15:30:46Z

fredczj
Jan 2, 2023
Author

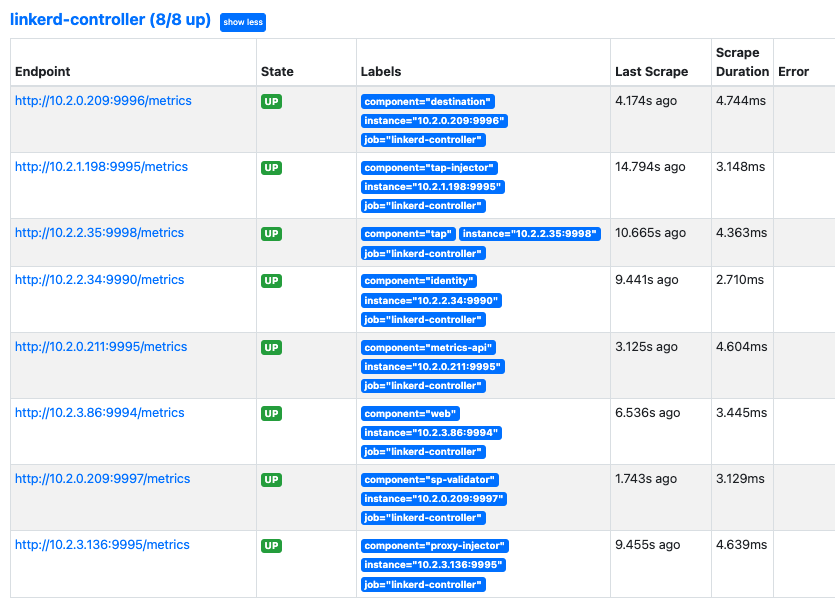

I have checked the linkerd scrape configuration. Everything seems fine. Prometheus even indicates the scrape configuration is OK:

0 replies

fredczj · 2023-01-04T12:35:14Z

fredczj
Jan 4, 2023
Author

kubectl:

Client Version: version.Info{Major:"1", Minor:"26", GitVersion:"v1.26.0", GitCommit:"b46a3f887ca979b1a5d14fd39cb1af43e7e5d12d", GitTreeState:"clean", BuildDate:"2022-12-08T19:51:43Z", GoVersion:"go1.19.4", Compiler:"gc", Platform:"darwin/amd64"}
Kustomize Version: v4.5.7
Server Version: version.Info{Major:"1", Minor:"25", GitVersion:"v1.25.4", GitCommit:"872a965c6c6526caa949f0c6ac028ef7aff3fb78", GitTreeState:"clean", BuildDate:"2022-11-09T13:29:58Z", GoVersion:"go1.19.3", Compiler:"gc", Platform:"linux/amd64"}

linkerd version

Client version: stable-2.12.2
linServer version: stable-2.12.3

Linkerd core checks
===================

kubernetes-api
--------------
√ can initialize the client
√ can query the Kubernetes API

kubernetes-version
------------------
√ is running the minimum Kubernetes API version
√ is running the minimum kubectl version

linkerd-existence
-----------------
√ 'linkerd-config' config map exists
√ heartbeat ServiceAccount exist
√ control plane replica sets are ready
√ no unschedulable pods
√ control plane pods are ready
√ cluster networks contains all node podCIDRs
√ cluster networks contains all pods
√ cluster networks contains all services

linkerd-config
--------------
√ control plane Namespace exists
√ control plane ClusterRoles exist
√ control plane ClusterRoleBindings exist
√ control plane ServiceAccounts exist
√ control plane CustomResourceDefinitions exist
√ control plane MutatingWebhookConfigurations exist
√ control plane ValidatingWebhookConfigurations exist
√ proxy-init container runs as root user if docker container runtime is used

linkerd-identity
----------------
√ certificate config is valid
√ trust anchors are using supported crypto algorithm
√ trust anchors are within their validity period
√ trust anchors are valid for at least 60 days
√ issuer cert is using supported crypto algorithm
√ issuer cert is within its validity period
‼ issuer cert is valid for at least 60 days
    issuer certificate will expire on 2023-02-02T03:56:52Z
    see https://linkerd.io/2.12/checks/#l5d-identity-issuer-cert-not-expiring-soon for hints
√ issuer cert is issued by the trust anchor

linkerd-webhooks-and-apisvc-tls
-------------------------------
√ proxy-injector webhook has valid cert
√ proxy-injector cert is valid for at least 60 days
√ sp-validator webhook has valid cert
√ sp-validator cert is valid for at least 60 days
√ policy-validator webhook has valid cert
√ policy-validator cert is valid for at least 60 days

linkerd-version
---------------
√ can determine the latest version
‼ cli is up-to-date
    is running version 2.12.2 but the latest stable version is 2.12.3
    see https://linkerd.io/2.12/checks/#l5d-version-cli for hints

control-plane-version
---------------------
√ can retrieve the control plane version
√ control plane is up-to-date
‼ control plane and cli versions match
    control plane running stable-2.12.3 but cli running stable-2.12.2
    see https://linkerd.io/2.12/checks/#l5d-version-control for hints

linkerd-control-plane-proxy
---------------------------
√ control plane proxies are healthy
√ control plane proxies are up-to-date
‼ control plane proxies and cli versions match
    linkerd-destination-5b6f4d4f78-7cbvq running stable-2.12.3 but cli running stable-2.12.2
    see https://linkerd.io/2.12/checks/#l5d-cp-proxy-cli-version for hints

Linkerd extensions checks
=========================

linkerd-viz
-----------
√ linkerd-viz Namespace exists
√ linkerd-viz ClusterRoles exist
√ linkerd-viz ClusterRoleBindings exist
√ tap API server has valid cert
√ tap API server cert is valid for at least 60 days
√ tap API service is running
√ linkerd-viz pods are injected
√ viz extension pods are running
√ viz extension proxies are healthy
‼ viz extension proxies are up-to-date
    some proxies are not running the current version:
	* metrics-api-86d75ffc69-gc7h9 (stable-2.12.2)
	* tap-8577b8b69-zpqfc (stable-2.12.2)
	* tap-injector-b7b9fc9f6-tdv5p (stable-2.12.2)
	* web-66b6b55fb7-qswl7 (stable-2.12.2)
    see https://linkerd.io/2.12/checks/#l5d-viz-proxy-cp-version for hints
√ viz extension proxies and cli versions match
√ can initialize the client
√ viz extension self-check

Status check results are √

linkerd-viz
-----------
√ linkerd-viz Namespace exists
√ linkerd-viz ClusterRoles exist
√ linkerd-viz ClusterRoleBindings exist
√ tap API server has valid cert
√ tap API server cert is valid for at least 60 days
√ tap API service is running
√ linkerd-viz pods are injected
√ viz extension pods are running
√ viz extension proxies are healthy
‼ viz extension proxies are up-to-date
    some proxies are not running the current version:
	* metrics-api-86d75ffc69-gc7h9 (stable-2.12.2)
	* tap-8577b8b69-zpqfc (stable-2.12.2)
	* tap-injector-b7b9fc9f6-tdv5p (stable-2.12.2)
	* web-66b6b55fb7-qswl7 (stable-2.12.2)
    see https://linkerd.io/2.12/checks/#l5d-viz-proxy-cp-version for hints
√ viz extension proxies and cli versions match
√ can initialize the client
√ viz extension self-check

0 replies

fredczj · 2023-01-05T09:04:05Z

fredczj
Jan 5, 2023
Author

Therefore, I try to look where the metrics are.

Using linkerd diagnostics proxy-metrics returns data. But they seem not in prometheus, even if scrape configuration sounds correct.

For instance, I cannot find tcp_read_bytes_total, but I can get http_client_in_flight_requests of linkerd-controller

Few lines from diagnostic that are not present in prometheus (when I search tcp_write_bytes_total for instance)

# HELP tcp_write_bytes_total Total count of bytes written to peers
# TYPE tcp_write_bytes_total counter
tcp_write_bytes_total{direction="outbound",peer="dst",authority="uidigest-request-cip.uidigestv2.svc.cluster.local:8081",target_addr="10.2.2.246:8081",target_ip="10.2.2.246",target_port="8081",tls="true",server_id="default.uidigestv2.serviceaccount.identity.linkerd.cluster.local",dst_control_plane_ns="linkerd",dst_deployment="uidigest-request-dep",dst_namespace="uidigestv2",dst_pod="uidigest-request-dep-8ff5567cc-hngnz",dst_pod_template_hash="8ff5567cc",dst_service="uidigest-request-cip",dst_serviceaccount="default"} 3507
tcp_write_bytes_total{direction="outbound",peer="dst",authority="uidigest-request-cip.uidigestv2.svc.cluster.local:8081",target_addr="10.2.3.126:8081",target_ip="10.2.3.126",target_port="8081",tls="true",server_id="default.uidigestv2.serviceaccount.identity.linkerd.cluster.local",dst_control_plane_ns="linkerd",dst_deployment="uidigest-request-dep",dst_namespace="uidigestv2",dst_pod="uidigest-request-dep-8ff5567cc-7bwz5",dst_pod_template_hash="8ff5567cc",dst_service="uidigest-request-cip",dst_serviceaccount="default"} 3736
tcp_write_bytes_total{direction="outbound",peer="src",target_addr="10.3.200.251:8081",target_ip="10.3.200.251",target_port="8081",tls="no_identity",no_tls_reason="loopback"} 1148004
tcp_write_bytes_total{direction="outbound",peer="dst",authority="parcontrol-request-cip.parcontrolv3.svc.cluster.local:8081",target_addr="10.2.2.21:8081",target_ip="10.2.2.21",target_port="8081",tls="true",server_id="default.parcontrolv3.serviceaccount.identity.linkerd.cluster.local",dst_control_plane_ns="linkerd",dst_deployment="parcontrol-request-dep",dst_namespace="parcontrolv3",dst_pod="parcontrol-request-dep-5b67fbd695-bqxtp",dst_pod_template_hash="5b67fbd695",dst_service="parcontrol-request-cip",dst_serviceaccount="default"} 30255
tcp_write_bytes_total{direction="outbound",peer="src",target_addr="10.3.53.42:6379",target_ip="10.3.53.42",target_port="6379",tls="no_identity",no_tls_reason="loopback"} 28567936
tcp_write_bytes_total{direction="inbound",peer="src",target_addr="10.2.3.171:8081",target_ip="10.2.3.171",target_port="8081",tls="true",client_id="contour-envoy.contour.serviceaccount.identity.linkerd.cluster.local",srv_group="",srv_kind="default",srv_name="all-unauthenticated"} 1201336

0 replies

fredczj · 2023-01-05T09:04:55Z

fredczj
Jan 5, 2023
Author

After discussion on Slack, I move this discussion to issue

0 replies

fredczj · 2023-01-05T10:23:47Z

fredczj
Jan 5, 2023
Author

#10086

0 replies

fredczj · 2023-01-06T07:41:24Z

fredczj
Jan 6, 2023
Author

Resolved: I missed a gotemplate replacement in the prometheus scrape configuration for linkerd-proxy:

#10086 (comment)

0 replies
