Set up external service profile for ingress traffics

[taind772]

Due to some reasons, I couldn't use the Linkerd proxy in Ingress mode for Ingress controllers. I tried to set up an external service profile for a service using the host header (domain name in case of ingress controller), but the config didn't seem to work well.

Currently, I have:

• Kong Ingress controller with Linkerd proxy enabled (default proxy, not in the Ingress mode)
• A service (ex: echo-kong-server.lab) which have Linkerd proxy meshed too
• Two service profiles, all in lab namespace:
  • echo-kong-server.lab.svc.cluster.local
  • echo-kong.xxx.net (the public domain)

I tried to enable external-service-profiles on both the ingress controller & the pod, but still, there weren't any route_.* metrics.

The response from the echo server:

Request served by echo-kong-server-6c85f87c4-6h4h7

HTTP/1.1 GET /

Host: echo-kong.xxx.net
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,*/*;q=0.8
Accept-Encoding: gzip, deflate, br
Accept-Language: en-US,en;q=0.5
Grpc-Metadata-Request-Id: 425970ef-97dd-4866-ab20-81a49a6e47de#13
L5d-Client-Id: ingress-kong.ingress-kong.serviceaccount.identity.linkerd.xxx.cluster.local
Sec-Fetch-Dest: document
Sec-Fetch-Mode: navigate
Sec-Fetch-Site: none
Sec-Fetch-User: ?1
Upgrade-Insecure-Requests: 1
User-Agent: Mozilla/5.0 (X11; Linux x86_64; rv:105.0) Gecko/20100101 Firefox/105.0
X-Forwarded-For: {{myIp}}
X-Forwarded-Host: echo-kong.xxx.net
X-Forwarded-Path: /
X-Forwarded-Port: 443
X-Forwarded-Proto: https
X-Real-Ip: {{myIp}}

Is it possible to get Per-route metrics from ingress traffic without using the Linkerd proxy in Ingress mode?

[adleong]

Hi @ndtai772! Unfortunately, inbound traffic into the kong ingress controller via the public domain is HTTPS which means that the Linkerd proxy can't decrypt it and apply service profiles.

[taind772]

Hi @adleong , thanks for your reply.
Actually, I mean: can I export per-route metrics (by service profile) of the traffic from the Ingress controller to Kubernetes services (which was HTTP) without using Linkerd in Ingress mode?

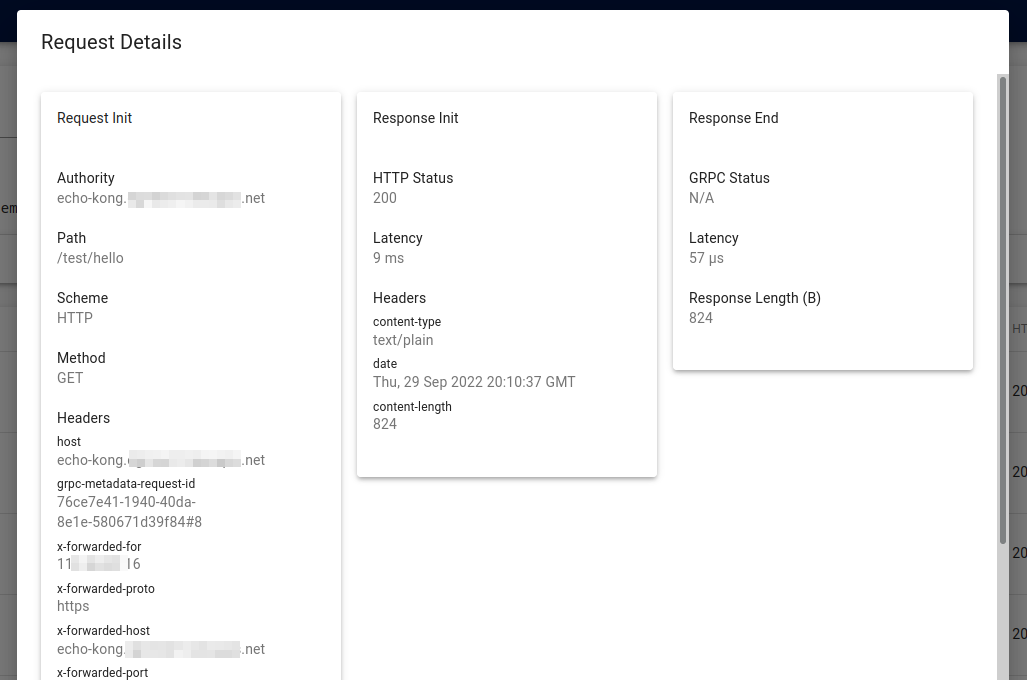

The request

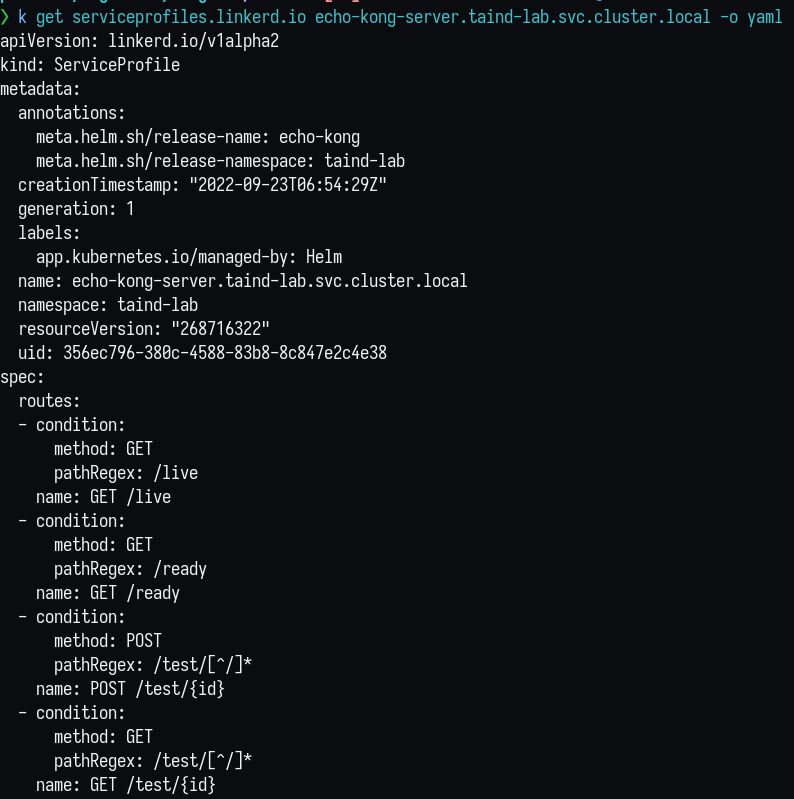

I have tried setup service profiles:

[adleong]

Where are you looking for the route_.* metrics? Keep in mind that outbound metrics are separate from inbound metrics.
