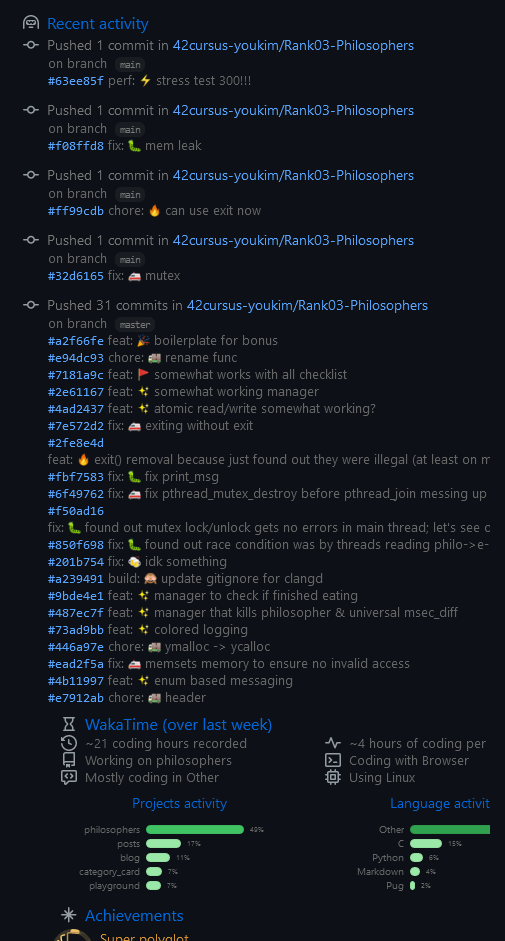

images are getting cropped

[scarf005]

actions file: yaml
maybe it's related to plugin order?

[lowlighter]

I think it's related to the activity plugin, stuff after it has an "indent" while it shouldn't so they end up getting shifted to the right outside the svg viewbox.

I'm not sure yet, but I think it's caused by one of your commit message not properly handled:

• some of them are longer than expected and should be cut with an ellipsis (...) at the end
• since you use > characters, maybe it's not properly escaped which break the html by closing a tag or something like this

[lowlighter]

The offset issue should have been fixed now 👍

[njzjz]

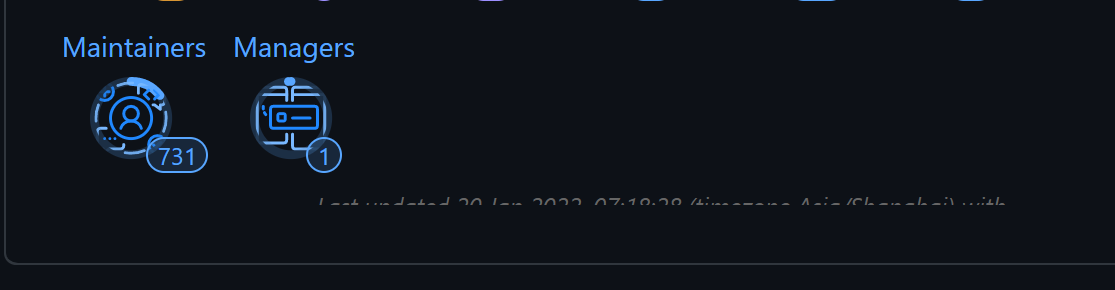

Got a similar issue. My config is here.

Note: I do not enable the activity plugin.

[lowlighter]

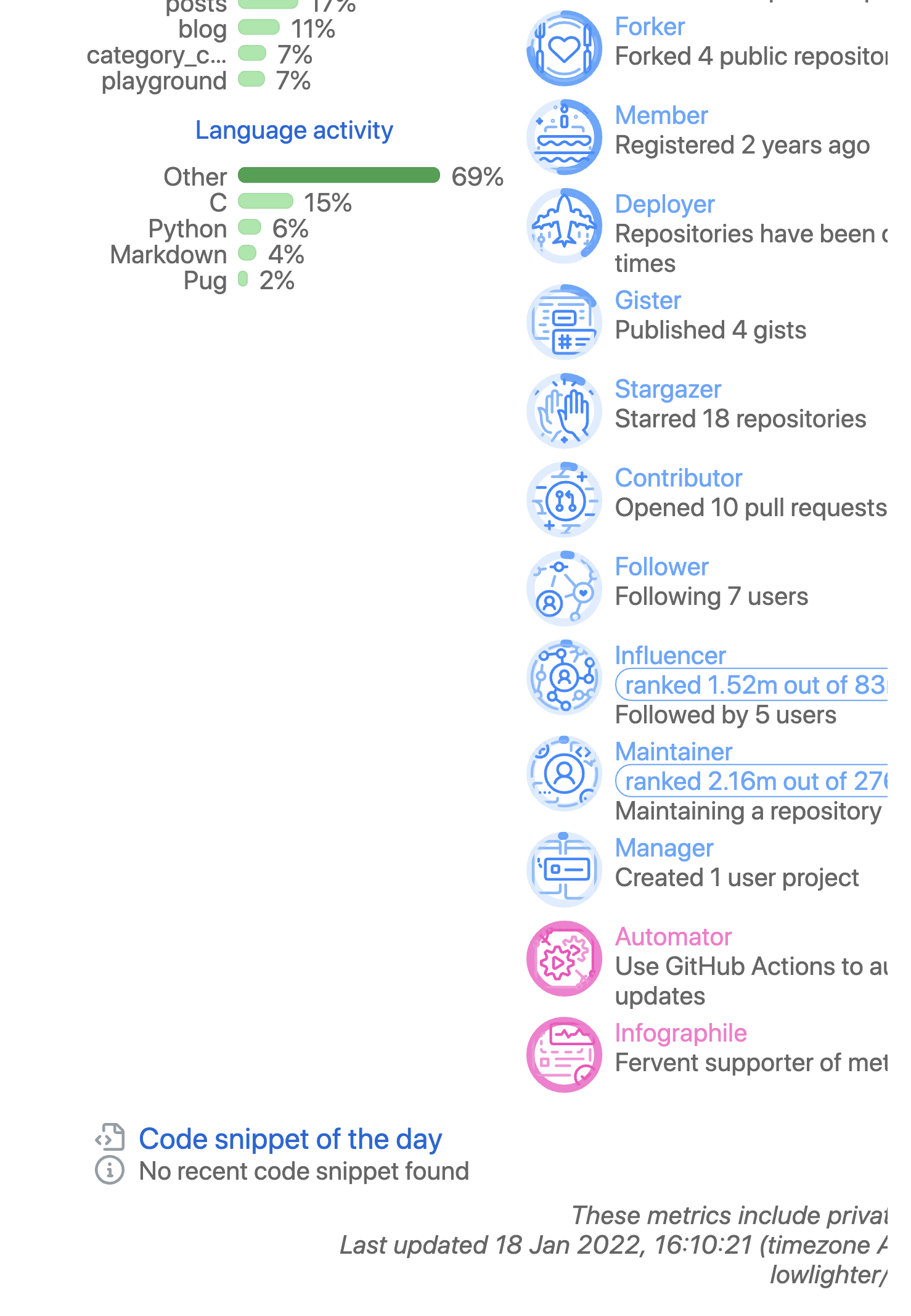

The vertical cropping issue can actually be solved by using the config_padding option. Because the SVG render ultimately depends on the OS/browser/fonts combination, it can result in slightly small changes in the height across different platforms.

To mitigate this, the config_padding already increase the height by 8px + 11% of its detected size by the puppeteer instance, but in your case it doesn't seem enough. You could try using higher values, like 0, 8 + 13% for example

Here's the full explanation of the option:

metrics/source/plugins/core/metadata.yml

Lines 255 to 273 in 0c4ce7c

	config_padding:
	description: |
	Output padding
	Although *metrics* try to auto-guess resulting height, rendering is still dependent on OS and browser settings.
	It can result in cropped or oversized outputs.
	This settings let you manually adjust padding with the following format:
	- 1 value for both width and height
	- 2 values for width fist and height second, separated by a comma (`,`)
	Each value need to respect the following format:
	- {number}
	- {number} + {number}%
	- {number}%
	Percentage are relative to computed dimensions
	type: string
	default: 0, 8 + 11%

Hope this helps 🙂 !
