Stuck on firmware 2020.08.04.1602 and in „activation“-loop

[brougs78]

Hi!

I use a CPLAY2air adapter in a KIA Ceed.

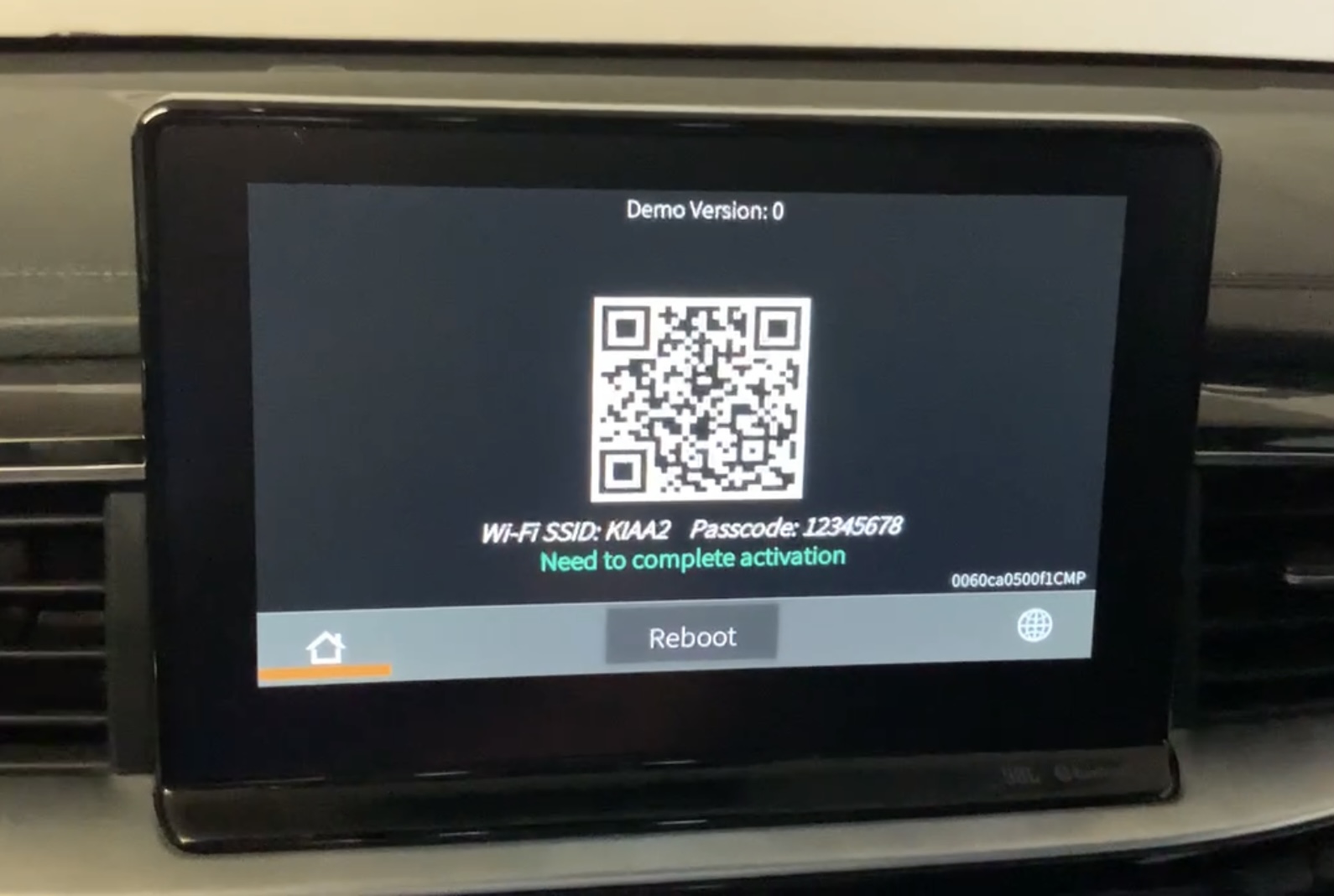

I have updated the adpater several month ago and since then after connecting to the car I get a screen to activate the dongle (see screenshot). If I do so (connect to 192.168.50.2 via the mobile phone) the screen changes to show me „Active Success“ and I have to reboot the dongle. After that the Activaton-Screen appears again.

I downgraded to the version 2020.08.04.1602 via the web interface but now I am stuck with this firmware version.
Trying to update via the web interface I only get the message, that the firmware is current.
I also tried via USB stick (tried several versions and naming conventions, several sticks and formating on Mac and Linux) but if I connect the dongle to power (not in the car) I get the solid red LED. If I then attach the USB stick nothing happens … I am not even sure what should happen (flashing red light?).

Is there a way to somehow force the firmware update?
Any ideas.

Thank you very much.

Kind regards,
Andreas

[ludwig-v]

Hello,

I'm currently working on this issue with my 2 recovered Carlinkit devices.

Try to update to last custom firmware by USB first.

--

Carlinkit can disable brands or even disable your device entirely because they are the ones sending the content of /etc/uuid_sign from their servers which is linked to your device UUID.

That's the part where the activation is broken / disabled for your device, the UUID is returned back instead of the Base64 encoded activation string to put in /etc/uuid_sign, that's why you get an activation success message but you are blocked in a forever loop.

[brougs78]

Hi Ludwig!

Thanks for the feedback. I tried updating with the latest custom firmware and it worked immediately … very cool.
But unfortunately I am still in the „forever loop“.

Is there something CPLAY2air can do on their end?

Otherwise I will have to wait if you can hack the signing process … do you see a chance?

[Didi25256]

Flash this file to get through the activation @brougs78
U2W_Update_2020.11.10.2138_ROLLBACK.img

[brougs78]

Hi Didi!

Thanks for the feedback. This really does break the loop … kind of.

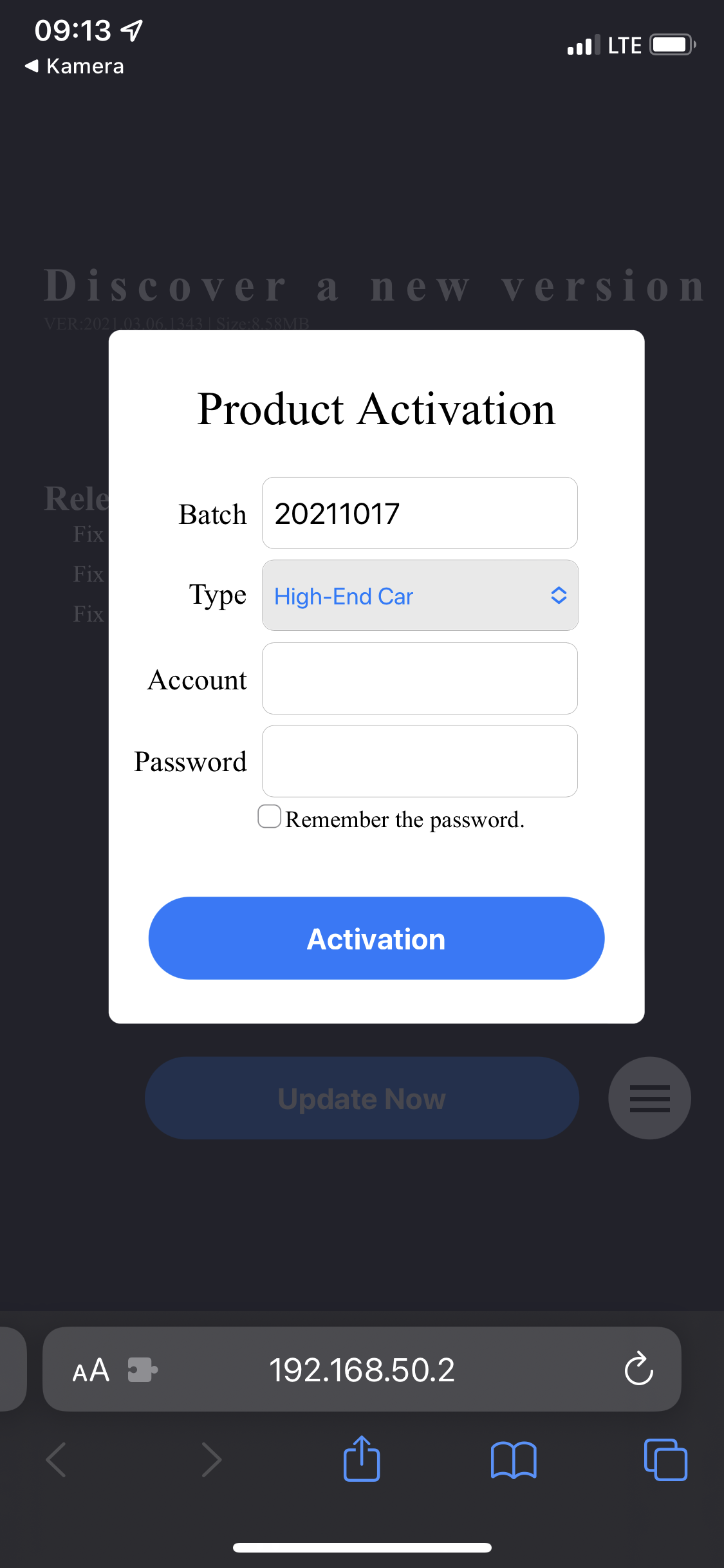

Any Idea what I have to enter here?
