CPC200-Autokit

[Ar4erR07]

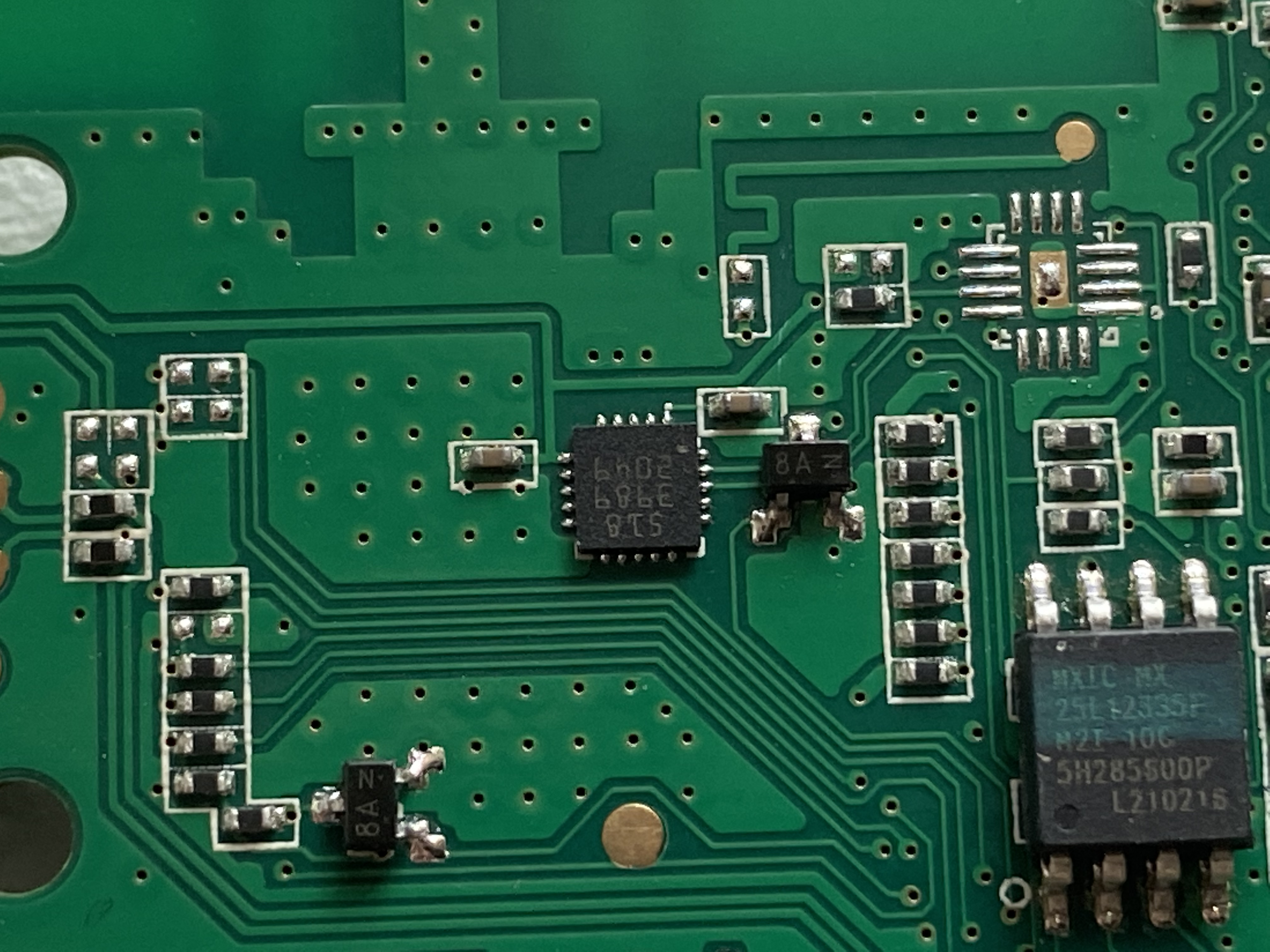

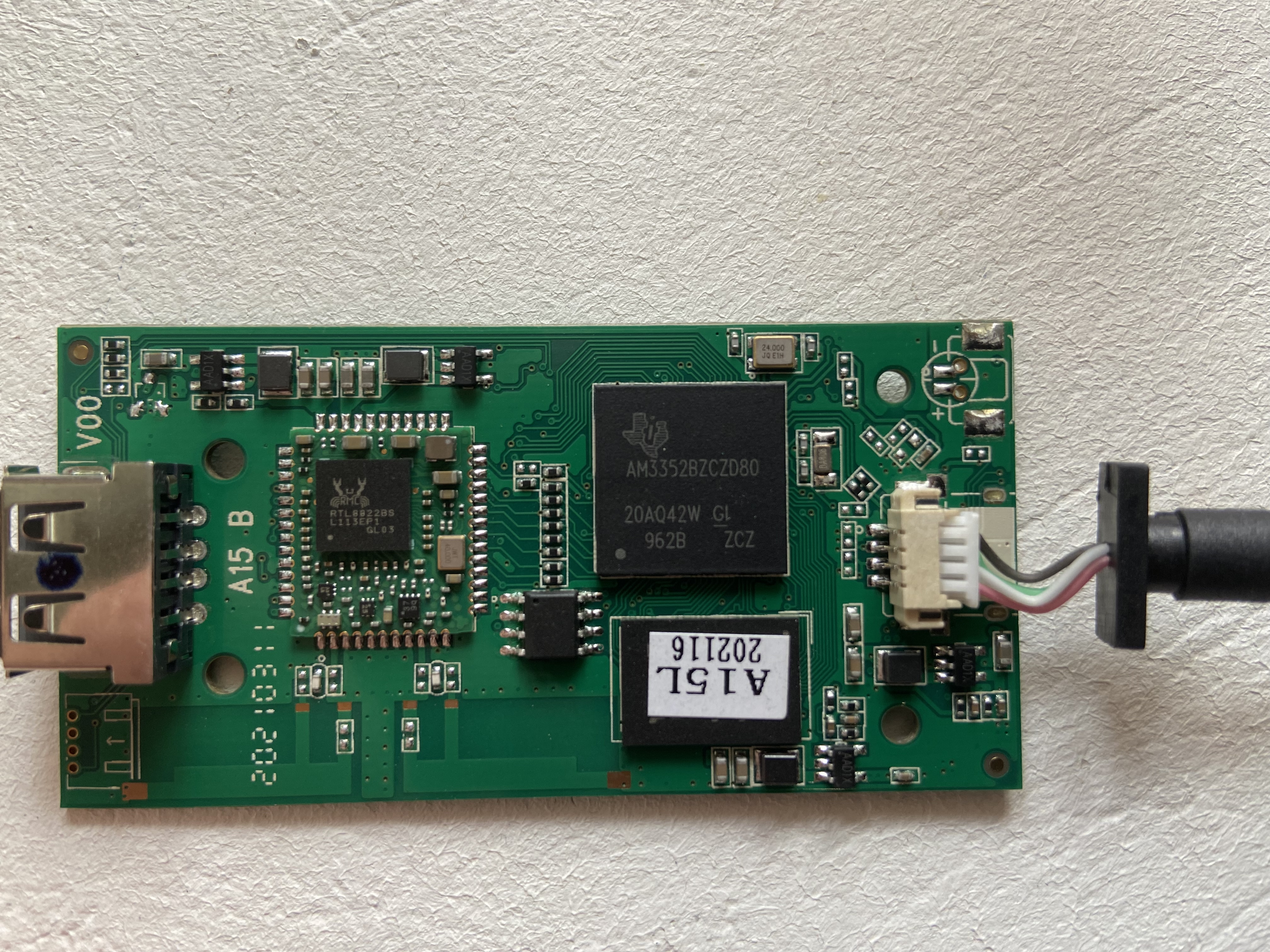

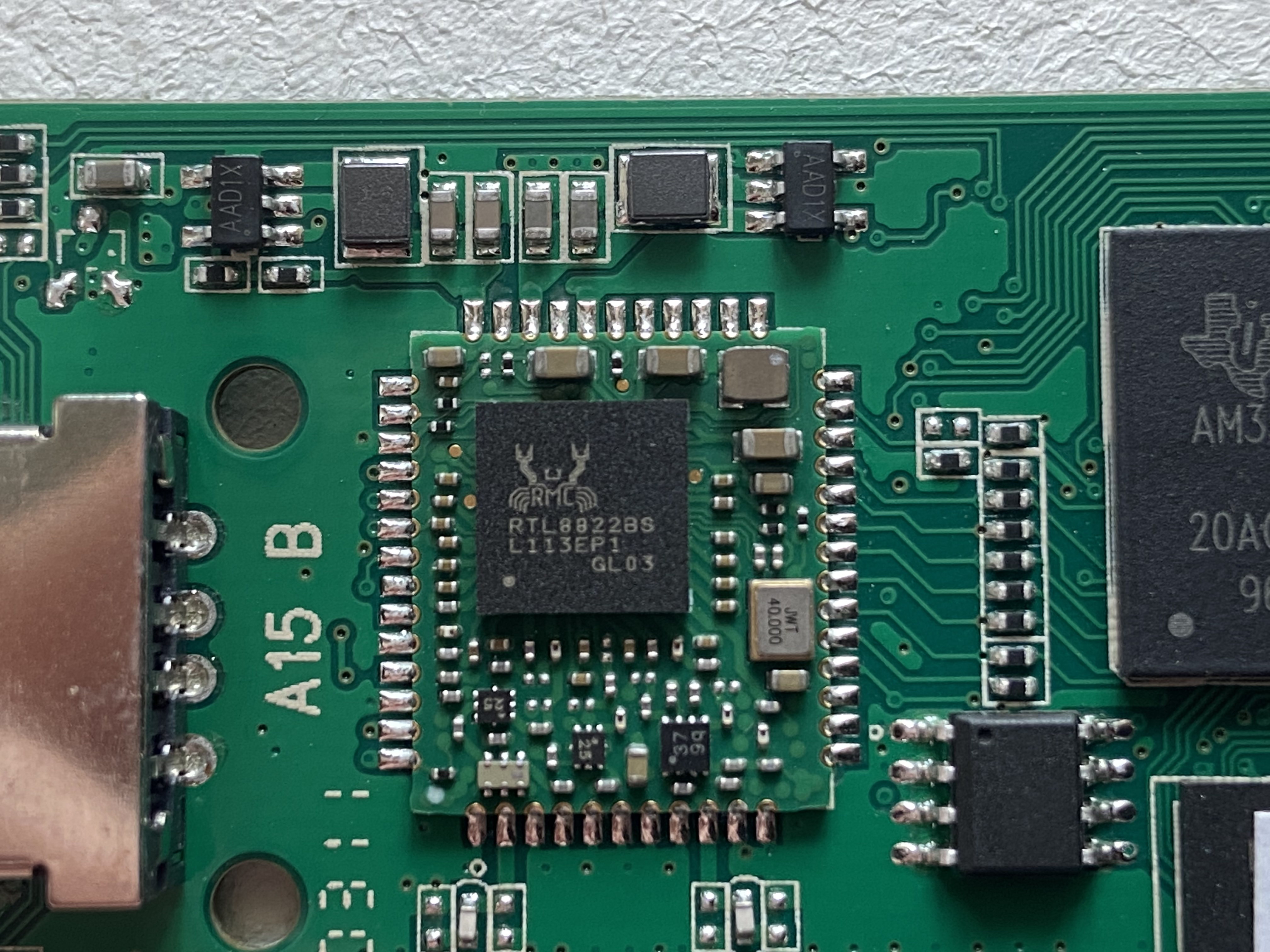

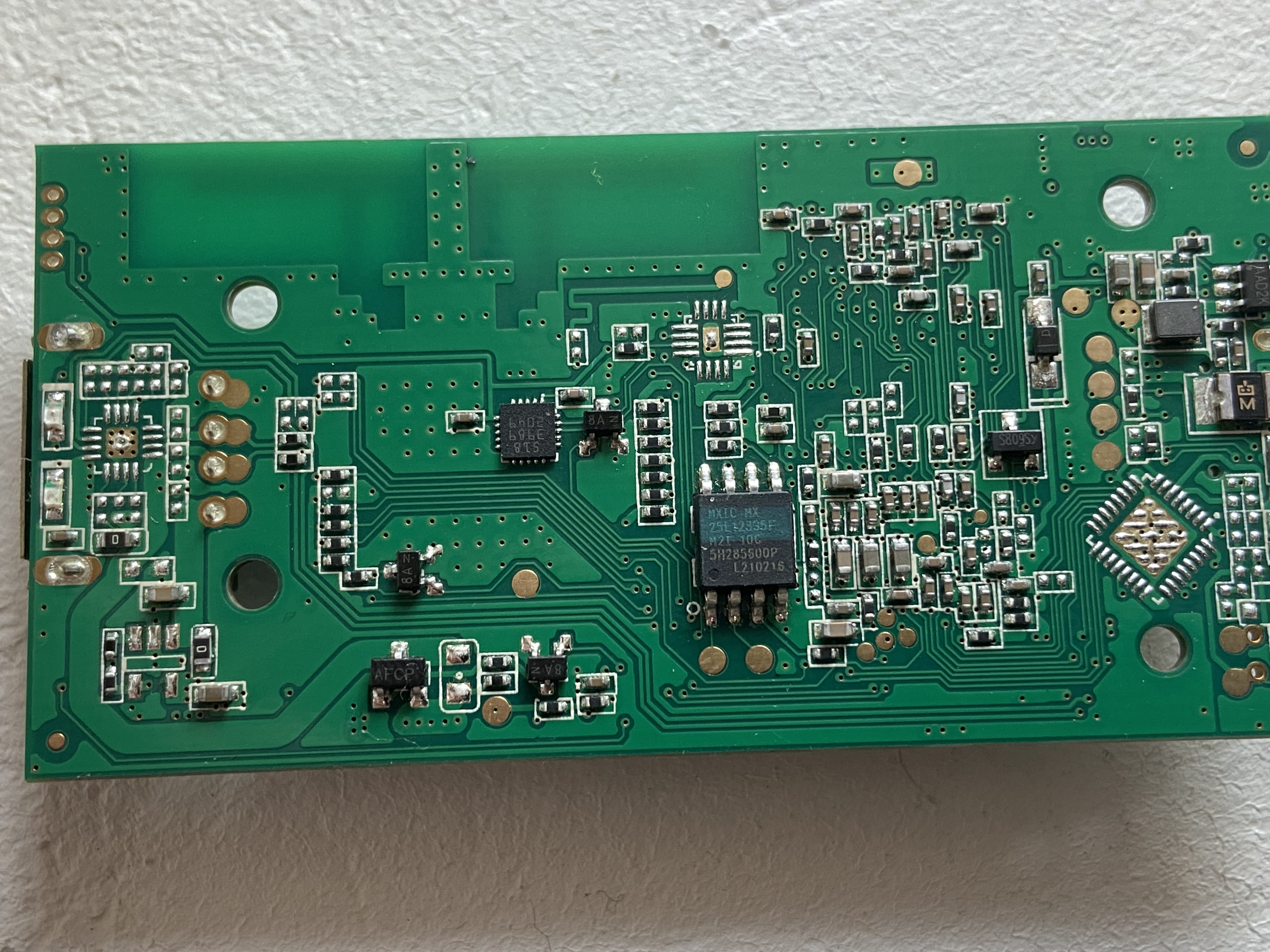

Hello. I have device as in photo. I made working dump, maybe it will come in handy for someone. I wonder if some modified firmware fits me from this repository.





Flash dump

[ludwig-v]

@jsm174 would be interested :)

[ludwig-v]

You can't convert it because your device will be missing the MFI chip to work as Carplay proxy

[Ar4erR07]

Thanks for the answer. I don't want to convert it. I want to either find or make firmware with SSH and improvements. Firmware version in the dump 2021.08.30.1821

[Ar4erR07]

I pulled out two update images for my device. Can you give advice on how to unpack them? I understand that they are encrypted using aes. And the decryption is done by ARMimg_maker on the device

[Ar4erR07]

crootfs.tar.gz
moddump.bin.zip

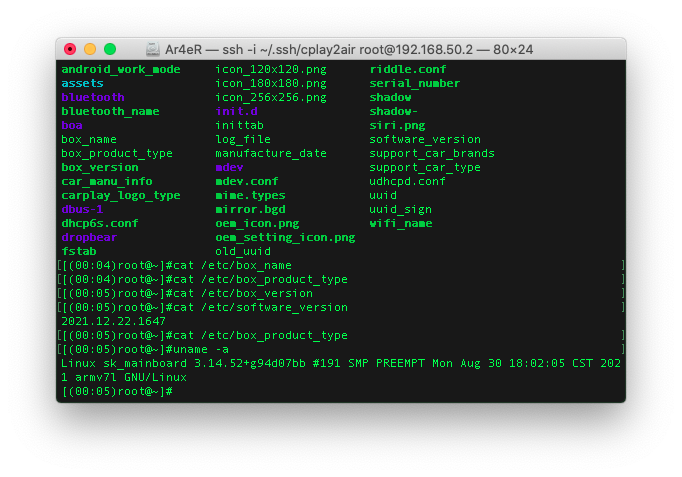

Not tested custom modded dump for Android Based Autokit dongle, firmware version 2021.12.22.1647. crootfs.tar.gz -copy from roots to create jffs2 root. In firmware enabled dropbear, wpa2, load script from usb flash drive, changed wifi password, enabled performance governor. Based on @qdk0901 version

[qba667]

@Ar4erR07 can you please provide output of cat /proc/cpuinfo?
I am wondering if this is same CPU as other unit CPU.
