LOTW Certificate Import

[jeffreycentex]

Maybe someone out there can give me a hint. I'm running the master branch of ClouldLog on Ubuntu 22.04LTS with PHP 7.4.

Everything is fine except for import my P12 cert. It gets uploaded to the ./uploads/lotw/cert folder, but I just get returned to screen where it says I need to import a certificate.

Haven't found anything here or in issues related to this.

[magicbug]

Hmm, is the p12 password protected if so the system will just dump it, if not then bit more debugging required I'd suggest making sure everything in Admin -> Debug is green, might need to turn on the logging options in Codeigniter to see whats going on deeper in the code

[jeffreycentex]

Yep. Everything there is green. I've looked through the code and don't see where the problem lies. I loaded the certificate on my computer without a password to verify that no password is found.

I wonder if this might be openssl related. I get an error when I run the update_clublog_scp URL:

A PHP Error was encountered
Severity: Warning

Message: file_put_contents(./updates/status.html): failed to open stream: Permission denied

Filename: controllers/Update.php

Line Number: 206

A PHP Error was encountered
Severity: Warning

Message: gzopen(): SSL operation failed with code 1. OpenSSL Error messages: error:0A000126:SSL routines::unexpected eof while reading

Filename: controllers/Update.php

Line Number: 238

A PHP Error was encountered
Severity: Warning

Message: file_put_contents(./updates/status.html): failed to open stream: Permission denied

Filename: controllers/Update.php

Line Number: 206

[phl0]

Looks more like a problem with permissions for the user the webserver runs under. Seems like it cannot create some files.

[cyfrax]

same thing here. P12 file gets uploaded to uploads/lotw/certs but nothing happens - it doesn't show in the lotw page
73
DL2CC

[phl0]

Any errors in the web server log?

[cyfrax]

No errors unfortunately.

[phl0]

Neither cloudlog logs nor webservers's logs?!

[cyfrax]

sorry, where do I find the cloudlog logs?

[cyfrax]

application/logs/? that directory doesn't contain log files so far

[magicbug]

Unless you turn on debugging in /application/config/config.php it wont

[cyfrax]

OK, set $config['log_threshold'] = 4;
in config.php but application/logs/ still empty after trying to upload a lotw cert.
anywhere else to enable debug logging?

[jeffreycentex]

Here is what I get there: INFO - 2022-09-19 12:55:51 --> Helper loaded: form_helper INFO - 2022-09-19 12:55:51 --> Language file loaded: language/english/lotw_lang.php INFO - 2022-09-19 12:55:51 --> Model Class Initialized INFO - 2022-09-19 12:55:51 --> Model Class Initialized INFO - 2022-09-19 12:55:51 --> Upload Class Initialized INFO - 2022-09-19 12:55:51 --> Model Class Initialized *ERROR - 2022-09-19 12:55:51 --> Severity: Notice --> Undefined index: cert /var/www/html/application/controllers/Lotw.ph* *p 392* *ERROR - 2022-09-19 12:55:51 --> error:0308010C:digital envelope routines::unsupported* INFO - 2022-09-19 12:55:51 --> Config Class Initialized INFO - 2022-09-19 12:55:51 --> Hooks Class Initialized DEBUG - 2022-09-19 12:55:51 --> UTF-8 Support Enabled INFO - 2022-09-19 12:55:51 --> Utf8 Class Initialized INFO - 2022-09-19 12:55:51 --> URI Class Initialized INFO - 2022-09-19 12:55:51 --> Router Class Initialized INFO - 2022-09-19 12:55:51 --> Output Class Initialized My cert is one that does not have a password assigned to it. However, the very first time I did this a long time ago, it did and failed. I cleared all of the old certs out of the upload folder.

…

On Mon, Sep 19, 2022 at 3:49 AM cyfrax ***@***.***> wrote: OK, set $config['log_threshold'] = 4; in config.php but application/logs/ still empty after trying to upload a lotw cert. anywhere else to enable debug logging? — Reply to this email directly, view it on GitHub <#1526 (comment)>, or unsubscribe <https://github.com/notifications/unsubscribe-auth/AANSR3BCPWGFE6M2SVQ4LJ3V7ASJTANCNFSM52X7LKAA> . You are receiving this because you authored the thread.Message ID: ***@***.***>

[phl0]

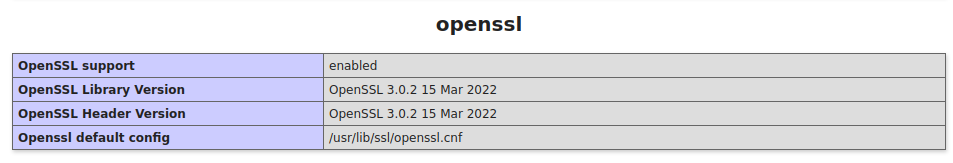

Seems that is an issue concerning the SSL cert stuff. U have OpenSSL installed and enabled for PHP? This is a sample output from phpinfo() on my system:

[jeffreycentex]

I have the same as you, except that I have two directives listed beneath it, each with no value: openssl.cafile openssl.capath

…

On Mon, Sep 19, 2022 at 8:52 AM Florian (DF2ET) ***@***.***> wrote: Seems that is an issue concerning the SSL cert stuff. U have OpenSSL installed and enabled for PHP? This is a sample output from phpinfo() on my system: [image: Screenshot from 2022-09-19 15-51-35] <https://user-images.githubusercontent.com/7112907/191033378-3f4ce373-36ab-4537-853e-6233bde46a44.png> — Reply to this email directly, view it on GitHub <#1526 (reply in thread)>, or unsubscribe <https://github.com/notifications/unsubscribe-auth/AANSR3EAL7QN5WMRRYV2DIDV7BVZLANCNFSM52X7LKAA> . You are receiving this because you authored the thread.Message ID: ***@***.***>

[phl0]

Ok so this is not the issue then .... :(

[jeffreycentex]

Fixed it.. Ubuntu 22.04 issue. diff -uN /etc/ssl/openssl.cnf\~original /etc/ssl/openssl.cnf for Nextcloud with OpenSSL 3 · GitHub <https://gist.github.com/rdh27785/97210d439a280063bd768006450c435d> Add the legacy provider to openssl.cnf On Mon, Sep 19, 2022 at 11:28 AM Jeffrey Randow ***@***.***> wrote:

…

Actually, it is... I do: openssl pkcs -clcerts -nokeys -in certfile.p12 -out cert.crt and get: error: 0308010C: digital envelope routines:innder_evp_generic_fetch:unsupported:../crypto/evp/evp_fetch.c:349:Global default library context, Algorithm (RC2-40-CBC : 0), Properties () Did ARRL update the certificate settings for new certificates? On Mon, Sep 19, 2022 at 10:57 AM Florian (DF2ET) ***@***.***> wrote: > Ok so this is not the issue then .... :( > > — > Reply to this email directly, view it on GitHub > <#1526 (reply in thread)>, > or unsubscribe > <https://github.com/notifications/unsubscribe-auth/AANSR3DQFGRB2O52QQPSWD3V7CENHANCNFSM52X7LKAA> > . > You are receiving this because you authored the thread.Message ID: > ***@***.***> >

[cyfrax]

Yeah, that did the trick for me as well. Cert uploads and activates fine now. Thanks Jeffrey!!
As for the non working logging, seems it was a permission issue with www-data.
I think it's because of missing permissions as per https://github.com/magicbug/Cloudlog/wiki/Installation - the log files directory should probably be added to the list of directories.

[jeffreycentex]

Actually, it is... I do: openssl pkcs -clcerts -nokeys -in certfile.p12 -out cert.crt and get: error: 0308010C: digital envelope routines:innder_evp_generic_fetch:unsupported:../crypto/evp/evp_fetch.c:349:Global default library context, Algorithm (RC2-40-CBC : 0), Properties () Did ARRL update the certificate settings for new certificates?

…

On Mon, Sep 19, 2022 at 10:57 AM Florian (DF2ET) ***@***.***> wrote: Ok so this is not the issue then .... :( — Reply to this email directly, view it on GitHub <#1526 (reply in thread)>, or unsubscribe <https://github.com/notifications/unsubscribe-auth/AANSR3DQFGRB2O52QQPSWD3V7CENHANCNFSM52X7LKAA> . You are receiving this because you authored the thread.Message ID: ***@***.***>

[jeffreycentex]

Nope...

…

On Fri, Sep 16, 2022 at 12:25 PM Florian (DF2ET) ***@***.***> wrote: Any errors in the web server log? — Reply to this email directly, view it on GitHub <#1526 (reply in thread)>, or unsubscribe <https://github.com/notifications/unsubscribe-auth/AANSR3AFL6WRPXGILKQVWWLV6SUSHANCNFSM52X7LKAA> . You are receiving this because you authored the thread.Message ID: ***@***.***>
