application/vnd.vega.v5+json mime type

[Quafadas]

In jupyterlab, this cell of a scala notebook, would generate a plot...

private val spec = """
{
  "$schema": "https://vega.github.io/schema/vega/v5.json",
  "description": "A basic bar chart example, with value labels shown upon mouse hover.",
  "width": 400,
  "height": 200,
  "padding": 5,

  "data": [
    {
      "name": "table",
      "values": [
        {"category": "A", "amount": 28},
        {"category": "B", "amount": 55},
        {"category": "C", "amount": 43},
        {"category": "D", "amount": 91},
        {"category": "E", "amount": 81},
        {"category": "F", "amount": 53},
        {"category": "G", "amount": 19},
        {"category": "H", "amount": 87}
      ]
    }
  ],

  "signals": [
    {
      "name": "tooltip",
      "value": {},
      "on": [
        {"events": "rect:mouseover", "update": "datum"},
        {"events": "rect:mouseout",  "update": "{}"}
      ]
    }
  ],

  "scales": [
    {
      "name": "xscale",
      "type": "band",
      "domain": {"data": "table", "field": "category"},
      "range": "width",
      "padding": 0.05,
      "round": true
    },
    {
      "name": "yscale",
      "domain": {"data": "table", "field": "amount"},
      "nice": true,
      "range": "height"
    }
  ],

  "axes": [
    { "orient": "bottom", "scale": "xscale" },
    { "orient": "left", "scale": "yscale" }
  ],

  "marks": [
    {
      "type": "rect",
      "from": {"data":"table"},
      "encode": {
        "enter": {
          "x": {"scale": "xscale", "field": "category"},
          "width": {"scale": "xscale", "band": 1},
          "y": {"scale": "yscale", "field": "amount"},
          "y2": {"scale": "yscale", "value": 0}
        },
        "update": {
          "fill": {"value": "steelblue"}
        },
        "hover": {
          "fill": {"value": "red"}
        }
      }
    },
    {
      "type": "text",
      "encode": {
        "enter": {
          "align": {"value": "center"},
          "baseline": {"value": "bottom"},
          "fill": {"value": "#333"}
        },
        "update": {
          "x": {"scale": "xscale", "signal": "tooltip.category", "band": 0.5},
          "y": {"scale": "yscale", "signal": "tooltip.amount", "offset": -2},
          "text": {"signal": "tooltip.amount"},
          "fillOpacity": [
            {"test": "datum === tooltip", "value": 0},
            {"value": 1}
          ]
        }
      }
    }
  ]
}

"""

 kernel.publish.display(
    almond.interpreter.api.DisplayData(
         data = Map(
            "application/vnd.vega.v5+json" -> spec
          )
    )
 )

In VSCode currently, it generates this;

Error loading preloads:
Could not find renderer

Does this mean that this mimetype is currently unsupported by VSCode?

If not, then I guess this would be a feature request. Perhaps, that it is not a high priority, but this mime-type makes plotting in arbitrary languages much easier because vega / lite is just JSON...

Any views / different approaches you might suggest?

[DonJayamanne]

this is a known issue, please see here #10812

[Quafadas]

@DonJayamanne Thanks for writing back. I've subscribed to that issue. As much as anything excited to find out that it's already reported and acknowledged - and looking at the notes maybe even has gotten some attention!

Thanks for the link.

[Quafadas]

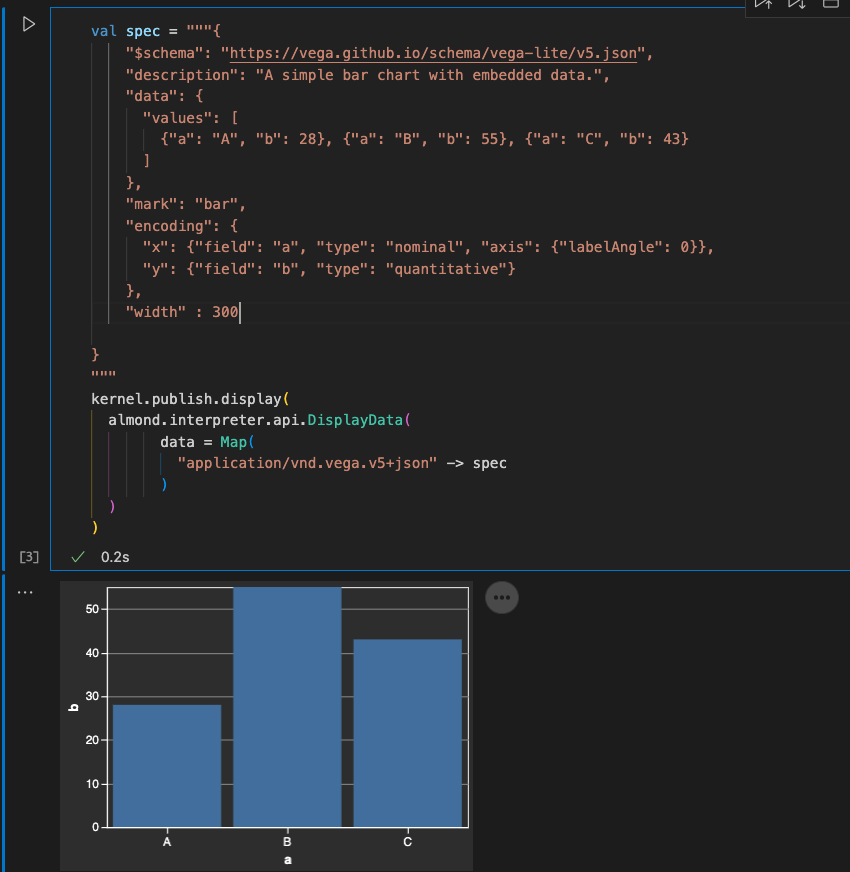

@DonJayamanne As far as I can tell, this now works.

Thanks - this is great!
