Merge pull request #94 from modelcontextprotocol/add-threejs-server

Add Three.js example server

Author: antonpk1

.gitignore

@@ -2,6 +2,7 @@
 dist/
 node_modules/
 yarn.lock
+bun.lockb
 .vscode/
 docs/api/
 tmp/

examples/basic-host/src/index.tsx

@@ -13,6 +13,7 @@ const SERVERS = [
   { name: "Customer Segmentation", port: 3105 },
   { name: "Scenario Modeler", port: 3106 },
   { name: "System Monitor", port: 3107 },
+  { name: "Three.js", port: 3109 },
 ] as const;

 function serverUrl(port: number): string {

examples/threejs-server/README.md

@@ -0,0 +1,137 @@
+# Three.js MCP Server
+
+Interactive 3D scene renderer using Three.js. Demonstrates streaming code preview and full MCP App integration.
+

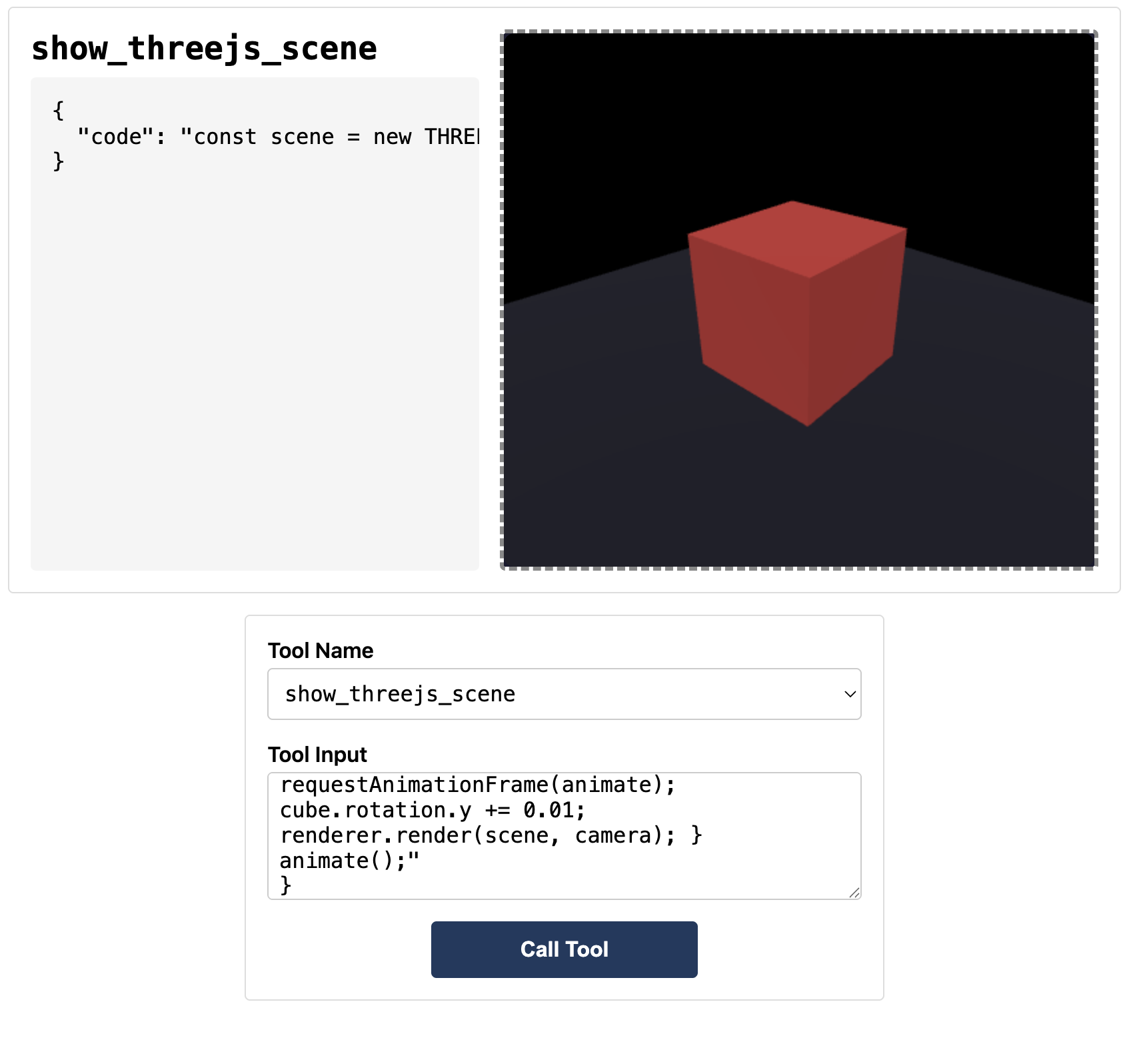

+![Screenshot](https://modelcontextprotocol.github.io/ext-apps/screenshots/threejs-server/screenshot.png)
+
+## Tools
+
+| Tool                 | Description                          |
+| -------------------- | ------------------------------------ |
+| `show_threejs_scene` | Render 3D scene from JavaScript code |
+| `learn_threejs`      | Get documentation and examples       |
+
+## Quick Start
+
+```bash
+# Build
+npm run build
+
+# Run (stdio mode for Claude Desktop)
+bun server.ts --stdio
+
+# Run (HTTP mode for basic-host)
+bun server.ts
+```
+
+## Code Structure
+
+```
+threejs-server/
+├── server.ts                    # MCP server with tools
+├── mcp-app.html                 # Entry HTML
+└── src/
+    ├── mcp-app-wrapper.tsx      # Generic MCP App wrapper (reusable)
+    ├── threejs-app.tsx          # Three.js widget component
+    └── global.css               # Styles
+```
+
+## Key Files
+
+### `src/mcp-app-wrapper.tsx`
+
+Generic wrapper handling MCP connection. Provides `WidgetProps` interface:
+
+```tsx
+interface WidgetProps<TToolInput> {
+  toolInputs: TToolInput | null; // Complete tool input
+  toolInputsPartial: TToolInput | null; // Streaming partial input
+  toolResult: CallToolResult | null; // Tool execution result
+  hostContext: McpUiHostContext | null; // Theme, viewport, locale
+  callServerTool: App["callServerTool"]; // Call MCP server tools
+  sendMessage: App["sendMessage"]; // Send chat messages
+  sendOpenLink: App["sendOpenLink"]; // Open URLs in browser
+  sendLog: App["sendLog"]; // Debug logging
+}
+```
+
+### `src/threejs-app.tsx`
+
+Widget component receiving all props. Uses:
+
+- `toolInputs.code` - JavaScript to execute
+- `toolInputsPartial.code` - Streaming preview
+- `toolInputs.height` - Canvas height
+
+### `server.ts`
+
+MCP server with:
+
+- `show_threejs_scene` tool linked to UI resource
+- `learn_threejs` documentation tool
+- stdio + HTTP transport support
+
+## Available Three.js Globals
+
+```javascript
+THREE; // Three.js library
+canvas; // Pre-created canvas
+(width, height); // Canvas dimensions
+OrbitControls; // Camera controls
+EffectComposer; // Post-processing
+RenderPass; // Render pass
+UnrealBloomPass; // Bloom effect
+```
+
+## Test Input
+
+Copy contents of `test-input.json` to test in basic-host (`http://localhost:8080`).
+
+## Example Code
+
+```javascript
+const scene = new THREE.Scene();
+const camera = new THREE.PerspectiveCamera(60, width / height, 0.1, 100);
+camera.position.set(2, 2, 2);
+
+const renderer = new THREE.WebGLRenderer({ canvas, antialias: true });
+renderer.setSize(width, height);
+renderer.shadowMap.enabled = true;
+
+const cube = new THREE.Mesh(
+  new THREE.BoxGeometry(),
+  new THREE.MeshStandardMaterial({ color: 0x00ff88 }),
+);
+cube.castShadow = true;
+cube.position.y = 0.5;
+scene.add(cube);
+
+const floor = new THREE.Mesh(
+  new THREE.PlaneGeometry(5, 5),
+  new THREE.MeshStandardMaterial({ color: 0x222233 }),
+);
+floor.rotation.x = -Math.PI / 2;
+floor.receiveShadow = true;
+scene.add(floor);
+
+const light = new THREE.DirectionalLight(0xffffff, 2);
+light.position.set(3, 5, 3);
+light.castShadow = true;
+scene.add(light);
+scene.add(new THREE.AmbientLight(0x404040));
+
+function animate() {
+  requestAnimationFrame(animate);
+  cube.rotation.y += 0.01;
+  renderer.render(scene, camera);
+}
+animate();
+```
+
+## Creating a New Widget
+
+1. Copy this example
+2. Rename `threejs-app.tsx` to your widget name
+3. Define your `ToolInput` interface
+4. Implement your widget using the `WidgetProps`
+5. Update `server.ts` with your tools

examples/threejs-server/mcp-app.html

@@ -0,0 +1,13 @@
+<!DOCTYPE html>
+<html lang="en">
+<head>
+  <meta charset="UTF-8">
+  <meta name="viewport" content="width=device-width, initial-scale=1.0">
+  <title>Three.js Widget</title>
+  <link rel="stylesheet" href="/src/global.css">
+</head>
+<body>
+  <div id="root"></div>
+  <script type="module" src="/src/mcp-app-wrapper.tsx"></script>
+</body>
+</html>

examples/threejs-server/package.json

@@ -0,0 +1,36 @@
+{
+  "name": "threejs-server",
+  "version": "1.0.0",
+  "private": true,
+  "type": "module",
+  "scripts": {
+    "build": "INPUT=mcp-app.html vite build",
+    "watch": "INPUT=mcp-app.html vite build --watch",
+    "serve": "bun server.ts",
+    "start": "NODE_ENV=development npm run build && npm run serve",
+    "dev": "NODE_ENV=development concurrently 'npm run watch' 'npm run serve'"
+  },
+  "dependencies": {
+    "@modelcontextprotocol/ext-apps": "../..",
+    "@modelcontextprotocol/sdk": "^1.22.0",
+    "react": "^19.2.0",
+    "react-dom": "^19.2.0",
+    "three": "^0.181.0",
+    "zod": "^3.25.0"
+  },
+  "devDependencies": {
+    "@types/cors": "^2.8.19",
+    "@types/express": "^5.0.0",
+    "@types/node": "^22.0.0",
+    "@types/react": "^19.2.2",
+    "@types/react-dom": "^19.2.2",
+    "@types/three": "^0.181.0",
+    "@vitejs/plugin-react": "^4.3.4",
+    "concurrently": "^9.2.1",
+    "cors": "^2.8.5",
+    "express": "^5.1.0",
+    "typescript": "^5.9.3",
+    "vite": "^6.0.0",
+    "vite-plugin-singlefile": "^2.3.0"
+  }
+}
