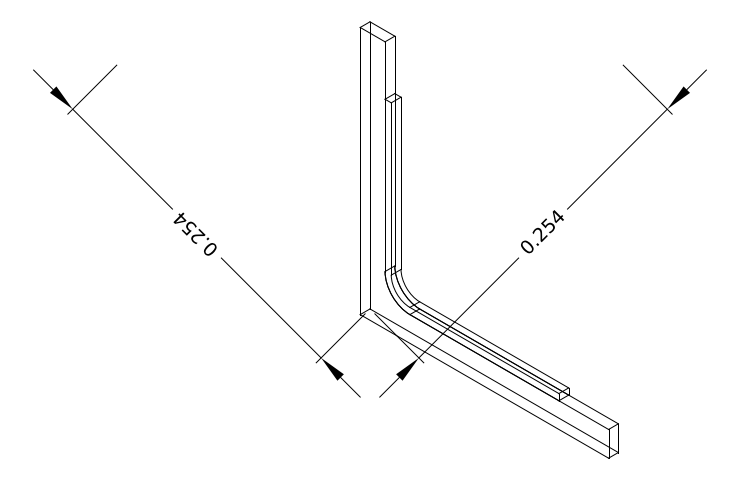

There is a bug that incorrectly displays dimensions through Matplotlib figure.show(), but it saves to a *.dxf correctly. When using ucs to translate the view from anything other than the XY plane, the dimensions shown in matplotlib figures do not rotate correctly. The white image was created using matplotlib. The black image was created using the dxf file being opened with Edrawings. I've attached two images to compare, as well as a link to my Github to access the script and it's associated dimensions csv to recreate the bug.
