JSON formatting and general trimestrip construction

[Cameronseitz]

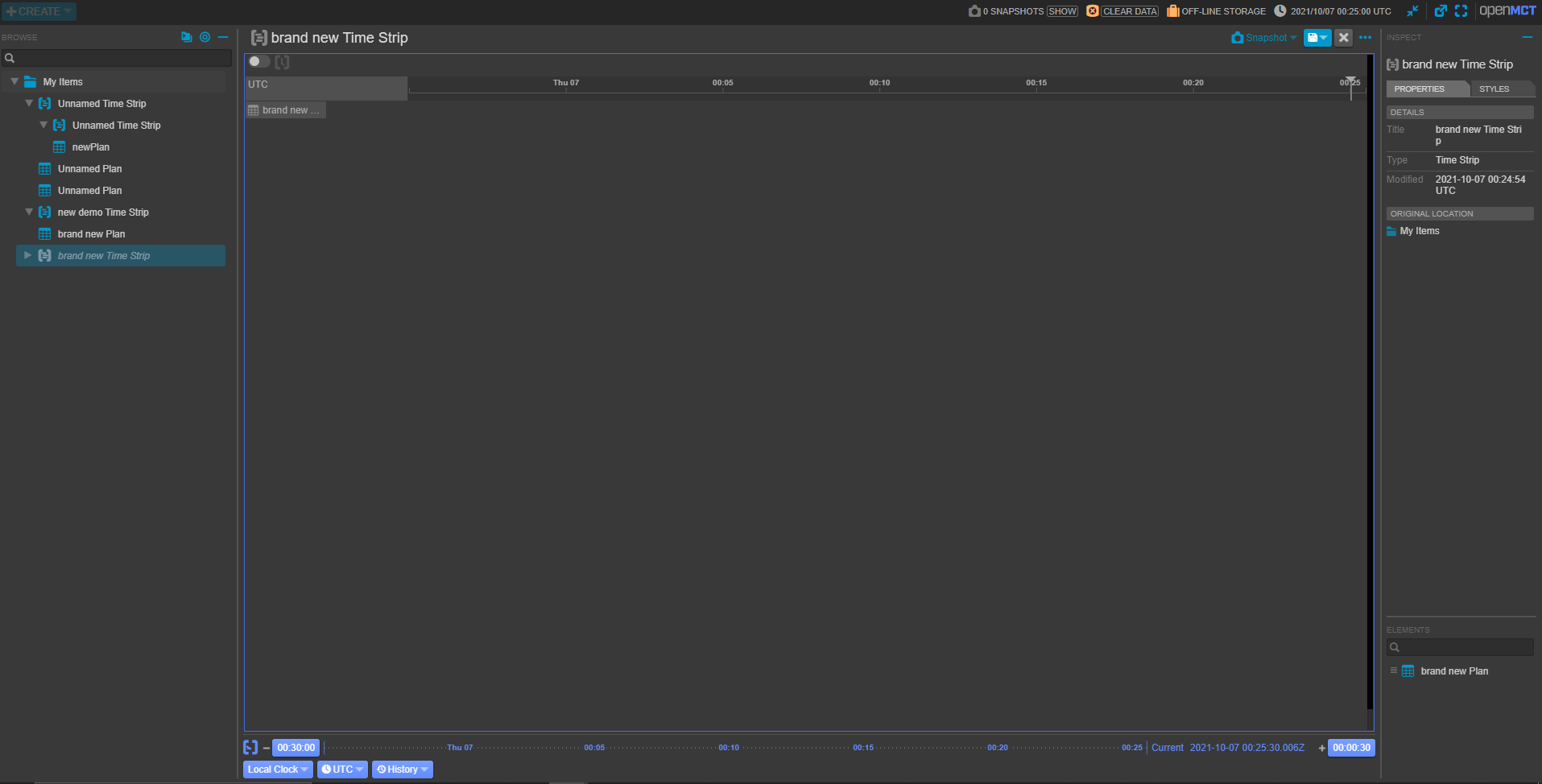

I tried following the procedure on the User Guide to create timestrips. My issue is that the plan, once created, just looks like a singular block on my time strip once dragged over. (see picture) It doesn't make a grant-type chart like in the user guide. To see if it was the JSON formatting, I tried exporting the timeline from the demo website (https://openmct-demo.herokuapp.com/#/browse/demo:root/demo:3?view=layout&tc.mode=local&tc.timeSystem=utc&tc.startDelta=900000&tc.endDelta=0) as a JSON and then importing that same file into the OpenMCT running locally, but it still appears as a block. Additionally, in the demo website mentioned earlier, it is referred to as a "Timeline", but on my local instance of OpenMCT, there is no Timeline option, just Plans, and timestrips. Is this a version difference issue? Any help would be awesome.

[shefalijoshi]

Hi @Cameronseitz

The Timeline on the demo is an older (unsupported) version.

To get sample JSON for the newer Plan, please see the JSON linked here: https://github.com/nasa/openmct/blob/master/src/plugins/plan/pluginSpec.js#L118
You will need to change time of your Open MCT view to match the timestamp of the JSON there.

[Cameronseitz]

Thank you. Does it start from line 118 and end in 135, or without the "Test Group" part from 119 to 134?

[shefalijoshi]

Hi @Cameronseitz ,

The JSON in your file should look something like below (I've changed the time stamps to a span between 2021-10-12 20:00:00.000Z and 2021-10-12 22:00:00.000Z

{ "TEST-GROUP": [ { "name": "Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua", "start": 1634068800000, "end": 1634072400000, "type": "TEST-GROUP", "color": "fuchsia", "textColor": "black" }, { "name": "Sed ut perspiciatis", "start": 1634070600000, "end": 1634074200000, "type": "TEST-GROUP", "color": "fuchsia", "textColor": "black" } ] }

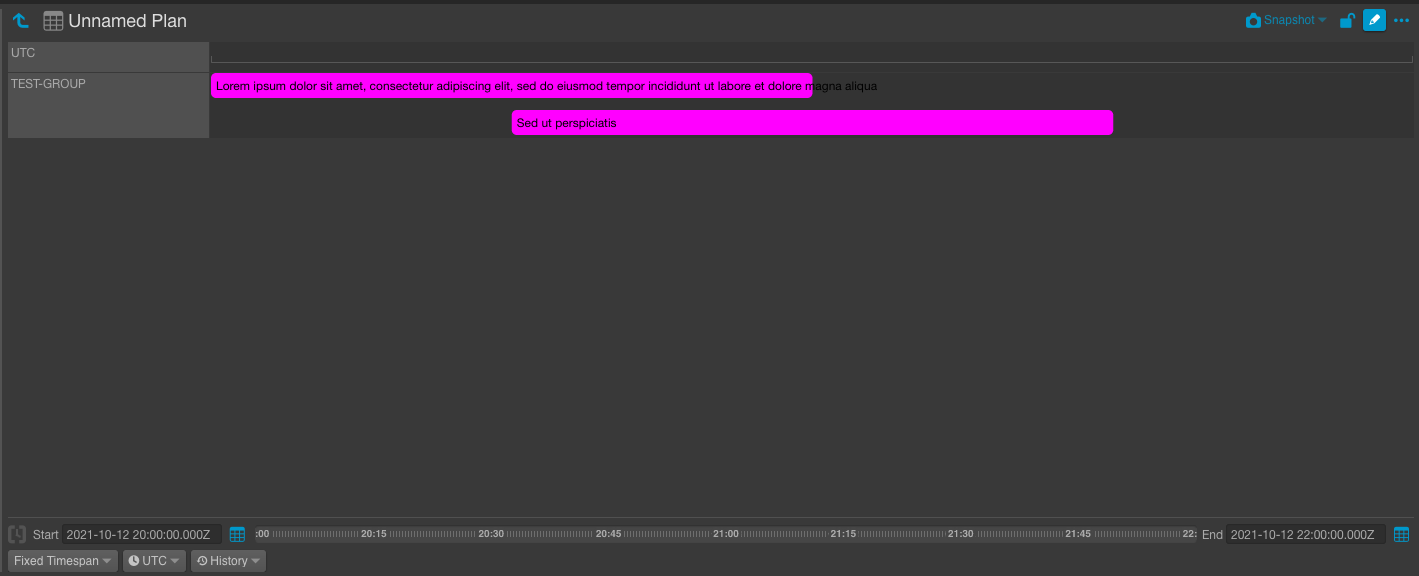

Resulting in a plan similar to:

[Cameronseitz]

Thank you!

[Cameronseitz]

Are there additional, optional parameters that can be included in the Plan JSON similar to how the demo plan has a start and duration parameter?

[jvigliotta]

Hi @Cameronseitz I haven't worked with the timestrip itself, but I wouldn't see any issues included additional properties if you need them. The only caveat being that during future development, there could be a conflict if more properties are added on our end. @shefalijoshi feel free to add more information if you see fit.
