‎docs/index.md‎

Lines changed: 1 addition & 0 deletions
Original file line numberDiff line numberDiff line change
@@ -148,6 +148,7 @@ This documentation is organized into 3 parts:
148148

149149
### Third-party Methods
150150

151+
- [UnMix-NeRF](nerfology/methods/unmix_nerf.md): Spectral-Unmixing Meets Neural Radiance Fields
151152
- [BioNeRF](nerfology/methods/bionerf.md): Biologically Plausible Neural Radiance Fields for View Synthesis
152153
- [Instruct-NeRF2NeRF](nerfology/methods/in2n.md): Editing 3D Scenes with Instructions
153154
- [Instruct-GS2GS](nerfology/methods/igs2gs.md): Editing 3DGS Scenes with Instructions

‎docs/nerfology/methods/index.md‎

Lines changed: 1 addition & 0 deletions
Original file line numberDiff line numberDiff line change
@@ -49,6 +49,7 @@ The following methods are supported in nerfstudio:
4949
BioNeRF<bionerf.md>
5050
NeRFtoGSandBack<nerf2gs2nerf.md>
5151
OpenNeRF<opennerf.md>
52+
UnMix-NeRF<unmix_nerf.md>
5253
```
5354

5455
(own_method_docs)=

‎docs/nerfology/methods/unmix_nerf.md‎

Lines changed: 175 additions & 0 deletions
Original file line numberDiff line numberDiff line change
@@ -0,0 +1,175 @@
1+
# UnMix-NeRF
2+
3+
<h4>Spectral Unmixing Meets Neural Radiance Fields</h4>
4+
5+
```{button-link} https://www.arxiv.org/pdf/2506.21884
6+
:color: primary
7+
:outline:
8+
Paper
9+
```
10+
11+
```{button-link} https://www.factral.co/UnMix-NeRF/
12+
:color: primary
13+
:outline:
14+
Project Page
15+
```
16+
17+
<div style="text-align: center;">
18+
19+
TL;DR _We propose UnMix-NeRF, the first method integrating spectral unmixing into NeRF, enabling hyperspectral view synthesis, accurate unsupervised material segmentation, and intuitive material-based scene editing, significantly outperforming existing methods._
20+
21+
_ICCV 2025_
22+
23+
<img src="https://www.factral.co/UnMix-NeRF/assets/intro.jpg" alt="UnMix-NeRF Overview" style="width:50% !important;"/><br>
24+
25+
</div>
26+
27+
## Visual Results
28+
29+
<h3 style="text-align: center;">Hotdog Scene</h3>
30+
<table style="width:100%; border: none;">
31+
<tr style="border: none;">
32+
<td style="text-align: center; border: none; padding: 5px;">
33+
<video autoplay="autoplay" loop="loop" muted="muted" playsinline="playsinline" style="width:100%">
34+
<source src="https://www.factral.co/UnMix-NeRF/assets/hotdog/rgb/rgb_hotdog.mp4" type="video/mp4">
35+
</video>
36+
<p>RGB</p>
37+
</td>
38+
<td style="text-align: center; border: none; padding: 5px;">
39+
<video autoplay="autoplay" loop="loop" muted="muted" playsinline="playsinline" style="width:100%">
40+
<source src="https://www.factral.co/UnMix-NeRF/assets/hotdog/seg/seg.mp4" type="video/mp4">
41+
</video>
42+
<p>Unsupervised Material Segmentation</p>
43+
</td>
44+
<td style="text-align: center; border: none; padding: 5px;">
45+
<video autoplay="autoplay" loop="loop" muted="muted" playsinline="playsinline" style="width:100%">
46+
<source src="https://www.factral.co/UnMix-NeRF/assets/hotdog/edit1/edit1.mp4" type="video/mp4">
47+
</video>
48+
<p>Scene Editing</p>
49+
</td>
50+
</tr>
51+
</table>
52+
53+
<h3 style="text-align: center;">Ajar Scene</h3>
54+
<table style="width:100%; border: none;">
55+
<tr style="border: none;">
56+
<td style="text-align: center; border: none; padding: 5px;">
57+
<video autoplay="autoplay" loop="loop" muted="muted" playsinline="playsinline" style="width:100%">
58+
<source src="https://www.factral.co/UnMix-NeRF/assets/ajar/seg_1_segment0.mp4" type="video/mp4">
59+
</video>
60+
<p>RGB</p>
61+
</td>
62+
<td style="text-align: center; border: none; padding: 5px;">
63+
<video autoplay="autoplay" loop="loop" muted="muted" playsinline="playsinline" style="width:100%">
64+
<source src="https://www.factral.co/UnMix-NeRF/assets/ajar/seg_1_segment2.mp4" type="video/mp4">
65+
</video>
66+
<p>Unsupervised Material Segmentation</p>
67+
</td>
68+
<td style="text-align: center; border: none; padding: 5px;">
69+
<video autoplay="autoplay" loop="loop" muted="muted" playsinline="playsinline" style="width:100%">
70+
<source src="https://www.factral.co/UnMix-NeRF/assets/ajar/seg_1_segment1.mp4" type="video/mp4">
71+
</video>
72+
<p>PCA Visualization</p>
73+
</td>
74+
</tr>
75+
</table>
76+
77+
## Installation
78+
79+
Install nerfstudio dependencies following the [installation guide](https://docs.nerf.studio/quickstart/installation.html).
80+
81+
Then install UnMix-NeRF:
82+
83+
```bash
84+
git clone https://github.com/Factral/UnMix-NeRF
85+
cd UnMix-NeRF
86+
pip install -r requirements.txt
87+
pip install .
88+
```
89+
90+
## Running UnMix-NeRF
91+
92+
Basic training command:
93+
94+
```bash
95+
ns-train unmixnerf \
96+
--data <path_to_data> \
97+
--pipeline.num_classes <number_of_materials> \
98+
--pipeline.model.spectral_loss_weight 5.0 \
99+
--pipeline.model.temperature 0.4 \
100+
--experiment-name my_experiment
101+
```
102+
103+
## Method
104+
105+
### Overview
106+
107+
[UnMix-NeRF](https://www.arxiv.org/pdf/2506.21884) Neural Radiance Field (NeRF)-based segmentation methods focus on object semantics and rely solely on RGB data, lacking intrinsic material properties. This limitation restricts accurate material perception, which is crucial for robotics, augmented reality, simulation, and other applications. We introduce UnMix-NeRF, a framework that integrates spectral unmixing into NeRF, enabling joint hyperspectral novel view synthesis and unsupervised material segmentation.
108+
109+
Our method models spectral reflectance via diffuse and specular components, where a learned dictionary of global endmembers represents pure material signatures, and per-point abundances capture their distribution. For material segmentation, we use spectral signature predictions along learned endmembers, allowing unsupervised material clustering. Additionally, UnMix-NeRF enables scene editing by modifying learned endmember dictionaries for flexible material-based appearance manipulation. Extensive experiments validate our approach, demonstrating superior spectral reconstruction and material segmentation to existing methods.
110+
111+

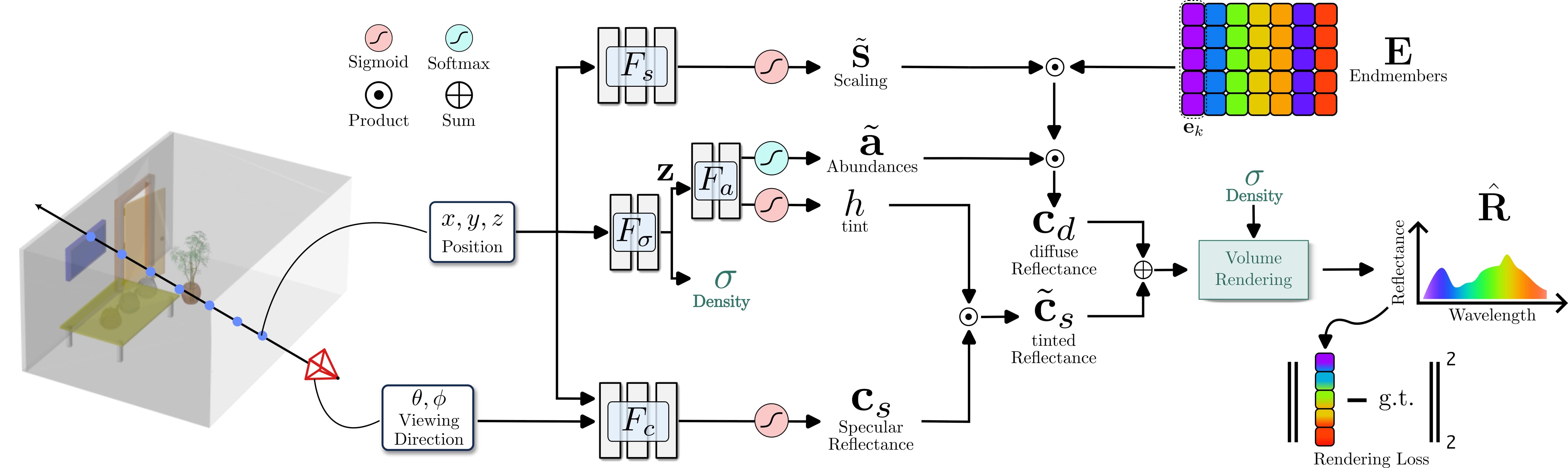

### Pipeline
112+
113+
![UnMix-NeRF Pipeline](https://www.factral.co/UnMix-NeRF/assets/framework.jpg)<br>
114+
115+
## Data Format
116+
117+
UnMix-NeRF extends standard nerfstudio data conventions to support hyperspectral data:
118+
119+
### Required Structure
120+
121+
```
122+
data/
123+
├── transforms.json # Camera poses (standard)
124+
├── images/ # RGB images (standard)
125+
│ ├── frame_00001.jpg
126+
│ └── ...
127+
├── hyperspectral/ # Hyperspectral data (NEW)
128+
│ ├── frame_00001.npy # Shape: (H, W, B)
129+
│ └── ...
130+
└── segmentation/ # Ground truth (optional)
131+
├── frame_00001.png
132+
└── ...
133+
```
134+
135+
### Hyperspectral Data
136+
137+
- **Format**: `.npy` files with dimensions `(H, W, B)`
138+
- **Values**: Normalized between 0 and 1
139+
- **Bands**: Number of spectral channels (B)
140+
141+
Update your `transforms.json`:
142+
143+
```json
144+
{
145+
"frames": [
146+
{
147+
"file_path": "./images/frame_00001.jpg",
148+
"hyperspectral_file_path": "./hyperspectral/frame_00001.npy",
149+
"seg_file_path": "./segmentation/frame_00001.png",
150+
"transform_matrix": [...]
151+
}
152+
]
153+
}
154+
```
155+
156+
## Key Parameters
157+
158+
| Parameter | Description | Default |
159+
| --------------------------------------- | --------------------------------- | ------- |
160+
| `--pipeline.num_classes` | Number of material endmembers | 6 |
161+
| `--pipeline.model.spectral_loss_weight` | Weight for spectral loss | 5.0 |
162+
| `--pipeline.model.temperature` | Temperature for abundance softmax | 0.4 |
163+
| `--pipeline.model.load_vca` | Initialize with VCA endmembers | False |
164+
| `--pipeline.model.pred_specular` | Enable specular component | True |
165+
166+
## Citation
167+
168+
```bibtex
169+
@inproceedings{perez2025unmix,
170+
title={UnMix-NeRF: Spectral Unmixing Meets Neural Radiance Fields},
171+
author={Perez, Fabian and Rojas, Sara and Hinojosa, Carlos and Rueda-Chac{\'o}n, Hoover and Ghanem, Bernard},
172+
booktitle={Proceedings of the IEEE/CVF International Conference on Computer Vision},
173+
year={2025}
174+
}
175+
```

‎nerfstudio/configs/external_methods.py‎

Lines changed: 15 additions & 0 deletions
Original file line numberDiff line numberDiff line change
@@ -298,6 +298,21 @@ class ExternalMethod:
298298
)
299299
)
300300

301+
# UnMix-NeRF
302+
external_methods.append(
303+
ExternalMethod(
304+
"""[bold yellow]UnMix-NeRF[/bold yellow]
305+
For more information visit: https://docs.nerf.studio/nerfology/methods/unmix_nerf.html
306+
307+
To enable UnMix-NeRF, you must install it first by running:
308+
[grey]pip install git+https://github.com/Factral/UnMix-NeRF[/grey]""",
309+
configurations=[
310+
("unmix-nerf", "UnMix-NeRF, used in paper"),
311+
],
312+
pip_package="git+https://github.com/Factral/UnMix-NeRF",
313+
)
314+
)
315+
301316

302317
@dataclass
303318
class ExternalMethodDummyTrainerConfig:
