Path Split

[ntmanxp]

Hello
I'm trying to model and trace connection between 2 switches and several Fiber Panels.
Some switches uses SFP modules ( bidirectional in some cases, that single fiber do the connection ) and in that case, the single fiber is traced of through the devices.
But when the SFP is splitted in 2 fibers ( Tx/Rx ) and this plugged to a front port of the patch panel, then I got a Path Split, and no way to continue the path.
I modeled with Splices in the rear port; Also with single cable rear to rear, and then rear to front in 1:1 relationship in each side, but no way. Can't make it work!!

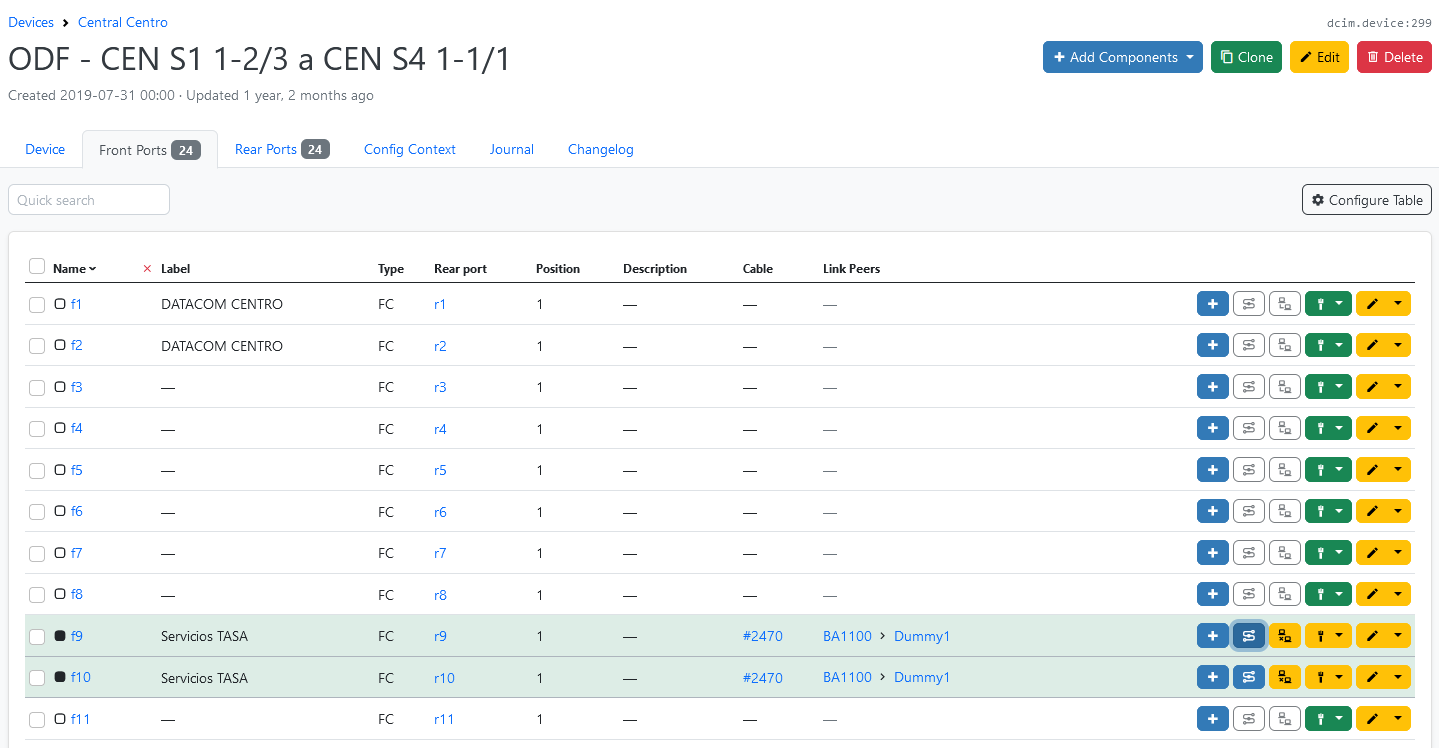

See this:

The mirror side is:

And if I do click on the node ( any, Rear Port r9 or r10 ) I got 'Not Path Found'. Am I misunderstanding the model??
Most of the Fiber Patch panels, uses a Fiber Cable of 12/24 or 48 strands, and are connected back to back from one building/room to the other. It's not any kind of MPO.

Please any advice should be really appreciated.

Andres.-

[ntmanxp]

Hi
Continuing the thread, if I define rear ports like splices, between Fiber Panels, but with discrete patchs between middle Fiber Panels ( or ODFs ) the path split came again.
Tried one model this way:

And got:

And in the other side:

Clicking in any of the Splitted ports ( F9 or F10 ), gives nothing!
Any help will be greatly appreciated!
Andres

[MarianRychtecky]

Hi, this is Marian; we have entirely the same issue. I thought it was a problem with our data, but this looks like a bug. On top, our trace is working in A -> B direction, but not in B -> A direction.
