Tracing cables which fork into multiple paths (four optical panels)

[BubnovStanislav]

Hello everyone,

I have encountered a problem that is almost identical to the one described in #2633. However, in that case, there were only 2 optical panels and it was resolved.

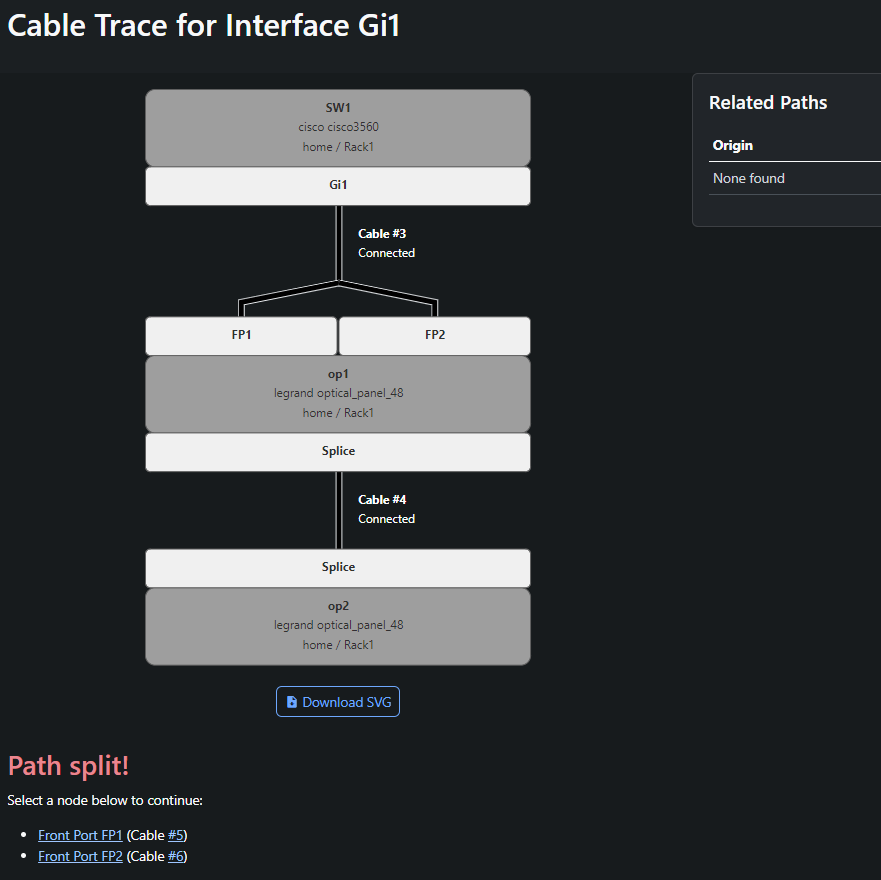

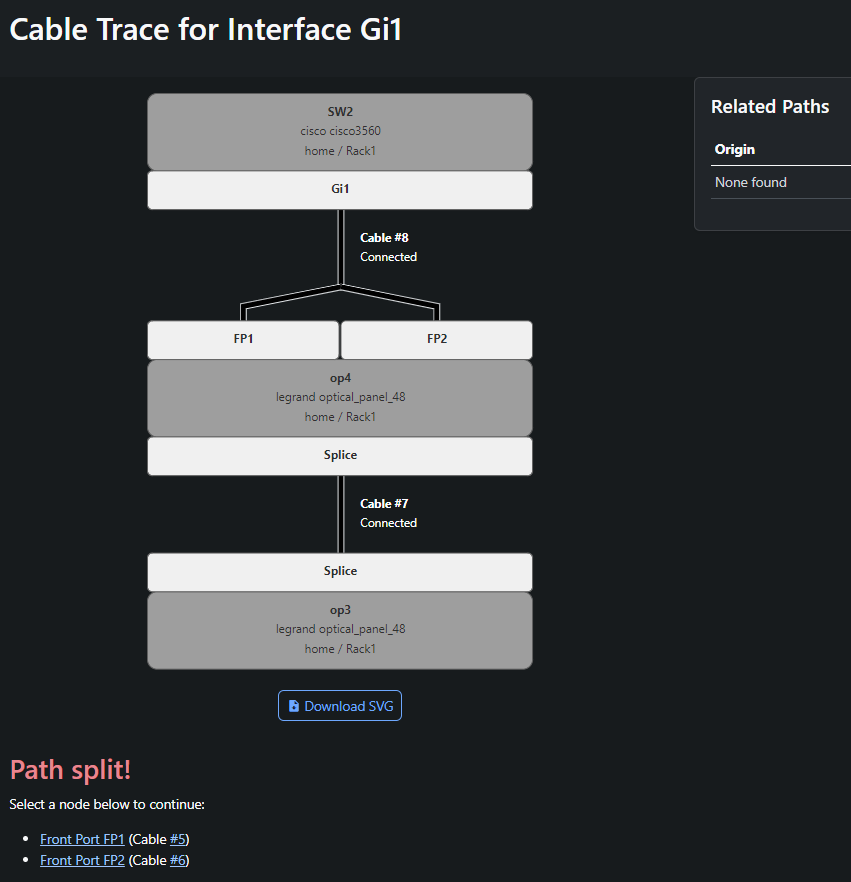

If I connect two switches through 4 optical panels, I get a "Path split!" error. If I leave only one optical fiber on the switch, the tracing works perfectly from start to finish.

The problem persists even on the new version of Netbox.

I have attached a table of connections and tracing results.

Perhaps I am doing something wrong. Please guide me in the right direction.

I would be very grateful for any help.

[only FP1-FP1.
only FP2-FP2.pdf
pdf](https://github.com/netbox-community/netbox/files/11372241/only.FP1-FP1.pdf)

[BubnovStanislav]

#2633
#7396
#7409

Based on the above, it seems I will have to redesign my optical panels model. Two optical fibers - one port.
There doesn't seem to be any other way at the moment.

Thank you.
