Tracing through bridged interfaces

[ktims]

It looks like tracing through two-member bridges should be supported according to #7761 . However this doesn't seem to be working for me; I must be misunderstanding something. I have tried (on my 3.2 installation, as well as the demo instance):

• One way bridge directly between two interfaces (e.g. ge-0/0/0 bridged to ge-0/0/1). Tracing neither direction passes through the bridge.
• Two way bridge directly between two interfaces (e.g. ge-0/0/0 bridge to ge-0/0/1 and ge-0/0/1 bridged to ge-0/0/0). Same result.
• Virtual bridge interface with both interfaces bridged to it. Same result as well.

I did also run the migrate.py trace_paths --force in case there was some stale state from before this feature was added, but no change.

How is this meant to work? I some additional 802.1Q configuration required or something?

[jeremystretch]

It works as expected for me on v3.2.0:

1. Create 3 devices w/interfaces
2. On device 2, edit interface A so that it bridges to B, and set B to bridge to A
3. Connect device1 A to device2 A
4. Connect device2 B to device3 B
5. Trace from either endpoint

[ktims]

Okay thanks, I think I see that here is some discrepancy based on where the trace is started from, possibly intentional though it's a bit unexpected. I created a test setup in the demo instance, adding a device nidA with ports 1/0/1 and 1/0/2 bridged and connected to one existing device and one circuit termination in the existing test dataset:

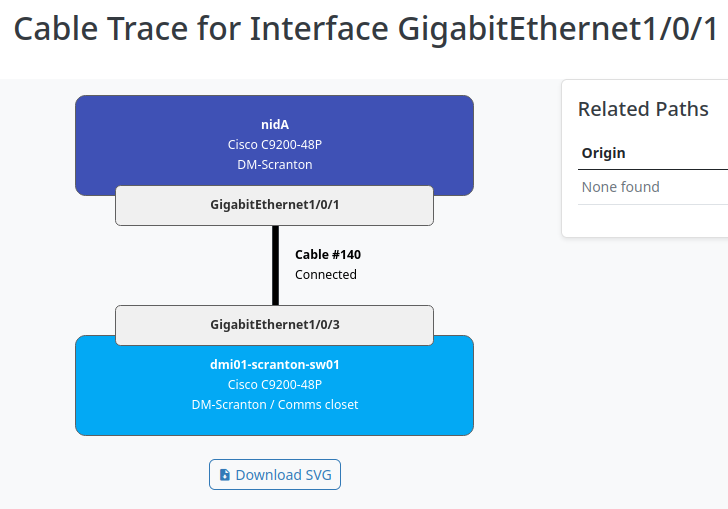

If I originate the trace from either nidA interface, the bridge is not included, which seems a somewhat reasonable behaviour, though a bit unexpected:

Originating the trace from the router port works as expected and matches the behaviour you've shown.

However originating the trace from the circuit termination doesn't flow through the bridge either:

Where I originally noticed this there are extra cables and patch panels in the paths, but the behaviour is essentially the same, starting the trace from a Circuit or the interface on the device owning the bridge doesn't connect the bridged ports.

I also notice in poking around this that both in the Cable page and the Interfaces listing only the Provider or Provider Network is linked. It would be nice to have a link to the Circuit or Circuit Termination here as well, similar to how both the Device and Interface are linked in those terminations.
