Metrics: quick start docs for Prometheus/Grafana (#2795)
1 parent 9b27d70 commit f55bd76

File tree

4 files changed

+259
-0
lines changed

4 files changed

+259
-0
lines changed

‎OpenTelemetry.sln

Lines changed: 6 additions & 0 deletions
Original file line numberDiff line numberDiff line change
@@ -226,6 +226,8 @@ Project("{9A19103F-16F7-4668-BE54-9A1E7A4F7556}") = "TestApp.AspNetCore.6.0", "t
226226
EndProject
227227
Project("{9A19103F-16F7-4668-BE54-9A1E7A4F7556}") = "source-generation", "docs\logs\source-generation\source-generation.csproj", "{1F6CC903-04C9-4E7C-B388-C215C467BFB9}"
228228
EndProject
229+
Project("{9A19103F-16F7-4668-BE54-9A1E7A4F7556}") = "getting-started-prometheus-grafana", "docs\metrics\getting-started-prometheus-grafana\getting-started-prometheus-grafana.csproj", "{41B784AA-3301-4126-AF9F-1D59BD04B0BF}"
230+
EndProject
229231
Global
230232
GlobalSection(SolutionConfigurationPlatforms) = preSolution
231233
Debug|Any CPU = Debug|Any CPU
@@ -472,6 +474,10 @@ Global
472474
{1F6CC903-04C9-4E7C-B388-C215C467BFB9}.Debug|Any CPU.Build.0 = Debug|Any CPU
473475
{1F6CC903-04C9-4E7C-B388-C215C467BFB9}.Release|Any CPU.ActiveCfg = Release|Any CPU
474476
{1F6CC903-04C9-4E7C-B388-C215C467BFB9}.Release|Any CPU.Build.0 = Release|Any CPU
477+
{41B784AA-3301-4126-AF9F-1D59BD04B0BF}.Debug|Any CPU.ActiveCfg = Debug|Any CPU
478+
{41B784AA-3301-4126-AF9F-1D59BD04B0BF}.Debug|Any CPU.Build.0 = Debug|Any CPU
479+
{41B784AA-3301-4126-AF9F-1D59BD04B0BF}.Release|Any CPU.ActiveCfg = Release|Any CPU
480+
{41B784AA-3301-4126-AF9F-1D59BD04B0BF}.Release|Any CPU.Build.0 = Release|Any CPU
475481
EndGlobalSection
476482
GlobalSection(SolutionProperties) = preSolution
477483
HideSolutionNode = FALSE

‎docs/metrics/getting-started-prometheus-grafana/Program.cs

Lines changed: 51 additions & 0 deletions
Original file line numberDiff line numberDiff line change
@@ -0,0 +1,51 @@
1+
// <copyright file="Program.cs" company="OpenTelemetry Authors">
2+
// Copyright The OpenTelemetry Authors
3+
//
4+
// Licensed under the Apache License, Version 2.0 (the "License");
5+
// you may not use this file except in compliance with the License.
6+
// You may obtain a copy of the License at
7+
//
8+
// http://www.apache.org/licenses/LICENSE-2.0
9+
//
10+
// Unless required by applicable law or agreed to in writing, software
11+
// distributed under the License is distributed on an "AS IS" BASIS,
12+
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
13+
// See the License for the specific language governing permissions and
14+
// limitations under the License.
15+
// </copyright>
16+
17+
using System;
18+
using System.Diagnostics.Metrics;
19+
using System.Threading;
20+
using OpenTelemetry;
21+
using OpenTelemetry.Metrics;
22+
23+
public class Program
24+
{
25+
private static readonly Meter MyMeter = new Meter("MyCompany.MyProduct.MyLibrary", "1.0");
26+
private static readonly Counter<long> MyFruitCounter = MyMeter.CreateCounter<long>("MyFruitCounter");
27+
28+
public static void Main(string[] args)
29+
{
30+
using var meterProvider = Sdk.CreateMeterProviderBuilder()
31+
.AddMeter("MyCompany.MyProduct.MyLibrary")
32+
.AddPrometheusExporter(opt =>
33+
{
34+
opt.StartHttpListener = true;
35+
opt.HttpListenerPrefixes = new string[] { $"http://localhost:9184/" };
36+
})
37+
.Build();
38+
39+
Console.WriteLine("Press any key to exit");
40+
while (!Console.KeyAvailable)
41+
{
42+
Thread.Sleep(1000);
43+
MyFruitCounter.Add(1, new("name", "apple"), new("color", "red"));
44+
MyFruitCounter.Add(2, new("name", "lemon"), new("color", "yellow"));
45+
MyFruitCounter.Add(1, new("name", "lemon"), new("color", "yellow"));
46+
MyFruitCounter.Add(2, new("name", "apple"), new("color", "green"));
47+
MyFruitCounter.Add(5, new("name", "apple"), new("color", "red"));
48+
MyFruitCounter.Add(4, new("name", "lemon"), new("color", "yellow"));
49+
}
50+
}
51+
}

‎docs/metrics/getting-started-prometheus-grafana/README.md

Lines changed: 197 additions & 0 deletions
Original file line numberDiff line numberDiff line change
@@ -0,0 +1,197 @@
1+
# Quick start on exporting metrics to Prometheus/Grafana
2+
3+
- [Quick start on exporting metrics to Prometheus/Grafana](#quick-start-on-exporting-metrics-to-prometheusgrafana)
4+
- [Prerequisite](#prerequisite)
5+
- [Introduction](#introduction)
6+
- [Configure OpenTelemetry to Expose metrics via Prometheus Endpoint](#configure-opentelemetry-to-expose-metrics-via-prometheus-endpoint)
7+
- [Check Results in the browser](#check-results-in-the-browser)
8+
- [Download Prometheus](#download-prometheus)
9+
- [Prometheus and Grafana](#prometheus-and-grafana)
10+
- [Configuration](#configuration)
11+
- [Start Prometheus](#start-prometheus)
12+
- [View Results in Prometheus](#view-results-in-prometheus)
13+
- [View/Query Results with Grafana](#viewquery-results-with-grafana)
14+
15+
## Prerequisite
16+
17+
It is highly recommended to go over the [getting-started](../getting-started/README.md)
18+
doc before following along this document.
19+
20+
## Introduction
21+
22+
- [What is Prometheus?](https://prometheus.io/docs/introduction/overview/)
23+
24+
- [Grafana support for
25+
Prometheus](https://prometheus.io/docs/visualization/grafana/#creating-a-prometheus-graph)
26+
27+
### Configure OpenTelemetry to Expose metrics via Prometheus Endpoint
28+
29+
Create a new console application and run it:
30+
31+
```sh
32+
dotnet new console --output prometheus-http-server
33+
cd prometheus-http-server
34+
dotnet run
35+
```
36+
37+
Add a reference to [prometheus
38+
exporter](https://www.nuget.org/packages/opentelemetry.exporter.prometheus) to
39+
this application.
40+
41+
```shell
42+
dotnet add package OpenTelemetry.Exporter.Prometheus --version 1.2.0-rc1
43+
```
44+
45+
Now, we are going to make some small tweaks to the example in the
46+
getting-started metrics `Program.cs` to make the metrics available via
47+
OpenTelemetry Prometheus Exporter.
48+
49+
First, copy and paste everything from getting-started
50+
metrics [example](../getting-started/Program.cs) to the Program.cs file of the
51+
new console application (prometheus-http-server) we've created.
52+
53+
And replace the below line:
54+
55+
```csharp
56+
.AddConsoleExporter()
57+
```
58+
59+
with
60+
61+
```csharp
62+
.AddPrometheusExporter(opt =>
63+
{
64+
opt.StartHttpListener = true;
65+
opt.HttpListenerPrefixes = new string[] { $"http://localhost:9184/" };
66+
})
67+
```
68+
69+
With `.AddPrometheusExporter()` function, OpenTelemetry `PrometheusExporter` will
70+
export data via the endpoint defined by `HttpListenerPrefixes`.
71+
72+
Also, for our learning purpose, use a while-loop to keep increasing the counter
73+
value until any key is pressed.
74+
75+
```csharp
76+
Console.WriteLine("Press any key to exit");
77+
while (!Console.KeyAvailable)
78+
{
79+
Thread.Sleep(1000);
80+
MyFruitCounter.Add(1, new("name", "apple"), new("color", "red"));
81+
MyFruitCounter.Add(2, new("name", "lemon"), new("color", "yellow"));
82+
MyFruitCounter.Add(1, new("name", "lemon"), new("color", "yellow"));
83+
...
84+
...
85+
...
86+
}
87+
```
88+
89+
After the above modifications, now our `Program.cs` should look like [this](./Program.cs).
90+
91+
### Check Results in the browser
92+
93+
Start the application and leave the process running. Now we should be able to
94+
see the metrics at the endpoint we've defined in `Program.cs`; in this case, the
95+
endpoint is: "http://localhost:9184/".
96+
97+

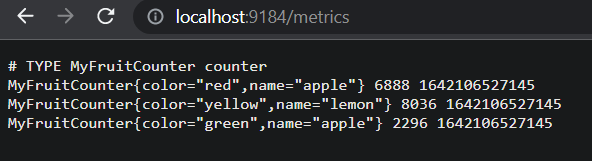

Check the output metrics with your favorite browser:
98+
99+
![MyFruitCounter output:](https://user-images.githubusercontent.com/16979322/150242010-8bde0002-44a5-4c84-94e6-3e0ee8a6ea4f.PNG)
100+
101+
Now, we understand how we can configure Opentelemetry `PrometheusExporter` to
102+
export metrics the endpoint we specified. Next, we are going to learn about how
103+
to use Prometheus and Grafana to view/query the metrics
104+
visualization.
105+
106+
## Download Prometheus
107+
108+
Follow the [first steps]((https://prometheus.io/docs/introduction/first_steps/))
109+
to download the [latest release](https://prometheus.io/download/) of Prometheus.
110+
111+
## Prometheus and Grafana
112+
113+
### Configuration
114+
115+
After finished downloading, extract it to a local location that's easy to
116+
access. We will find the default Prometheus configuration YAML file in the
117+
folder, named `prometheus.yml`.
118+
119+
Let's create a new file in the same location as where `prometheus.yml` locates,
120+
and named the new file as `otel.yml` for this exercise. Then, copy and paste the
121+
entire content below into the otel.yml file we have created just now.
122+
123+
```yaml
124+
global:
125+
scrape_interval: 10s
126+
scrape_timeout: 10s
127+
evaluation_interval: 10s
128+
scrape_configs:
129+
- job_name: MyOpenTelemetryDemo
130+
honor_timestamps: true
131+
scrape_interval: 1s
132+
scrape_timeout: 1s
133+
metrics_path: /metrics
134+
scheme: http
135+
follow_redirects: true
136+
static_configs:
137+
- targets:
138+
# set the target to the location where metrics will be exposed by
139+
# the OpenTelemetry Prometheus Exporter
140+
- localhost:9184
141+
```
142+
143+
### Start Prometheus
144+
145+
Follow the instructions from
146+
[starting-prometheus](https://prometheus.io/docs/introduction/first_steps/#starting-prometheus)
147+
to start the Prometheus server and verify it has been started successfully.
148+
149+
Please note that we will need pass in otel.yml file as the argument:
150+
151+
```console
152+
./prometheus --config.file=otel.yml
153+
```
154+
155+
### View Results in Prometheus
156+
157+
To use the graphical interface for viewing our metrics with Prometheus, navigate
158+
to "http://localhost:9090/graph", and type `MyFruitCounter` in the expression
159+
bar of the UI; finally, click the execute button.
160+
161+

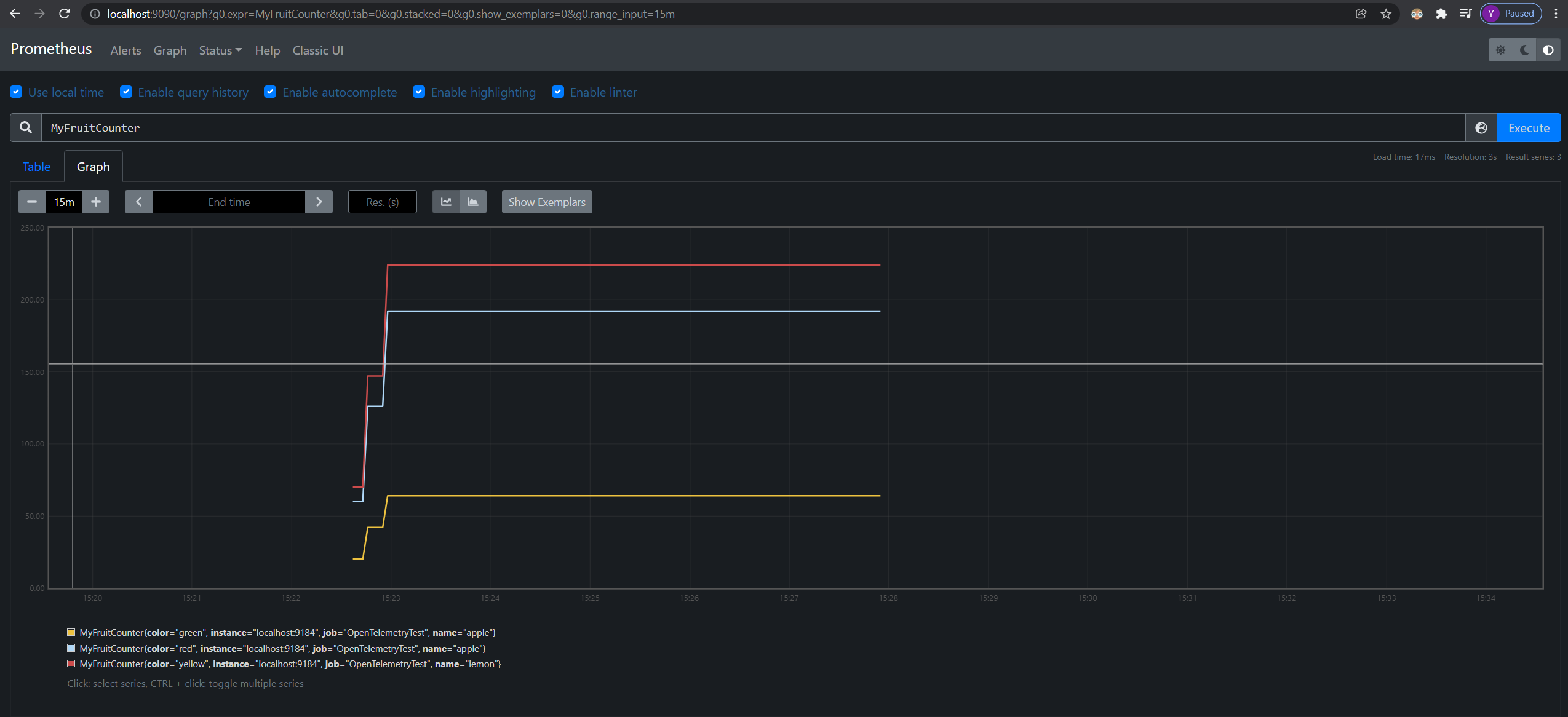

We should be able to see the following chart from the browser:
162+
163+
![Prometheus Graph:](https://user-images.githubusercontent.com/16979322/150242083-65b84f25-c95f-4e9b-a64f-699ad8816602.PNG)
164+
165+
From the legend, we can see that the `instance` name and the `job` name are the
166+
values we have set in `otel.yml`.
167+
168+
Congratulations!
169+
170+
Now we know how to configure Prometheus server and deploy OpenTelemetry
171+
`PrometheusExporter` to export our metrics. Next, we are going to explore a tool
172+
called Grafana, which has powerful visualizations for the metrics.
173+
174+
### View/Query Results with Grafana
175+
176+
Please [Install Grafana](https://grafana.com/docs/grafana/latest/installation/).
177+
178+
For windows users, after finishing installation, start the standalone Grafana
179+
server, grafana-server.exe located in the bin folder. Then, use the browser to
180+
navigate to the default port of Grafana `3000`. We can confirm the port number
181+
with the logs from the command line after starting the Grafana server as well.
182+
183+
Follow the instructions in the Grafana getting started
184+
[doc](https://grafana.com/docs/grafana/latest/getting-started/getting-started/#step-2-log-in)
185+
to log in.
186+
187+

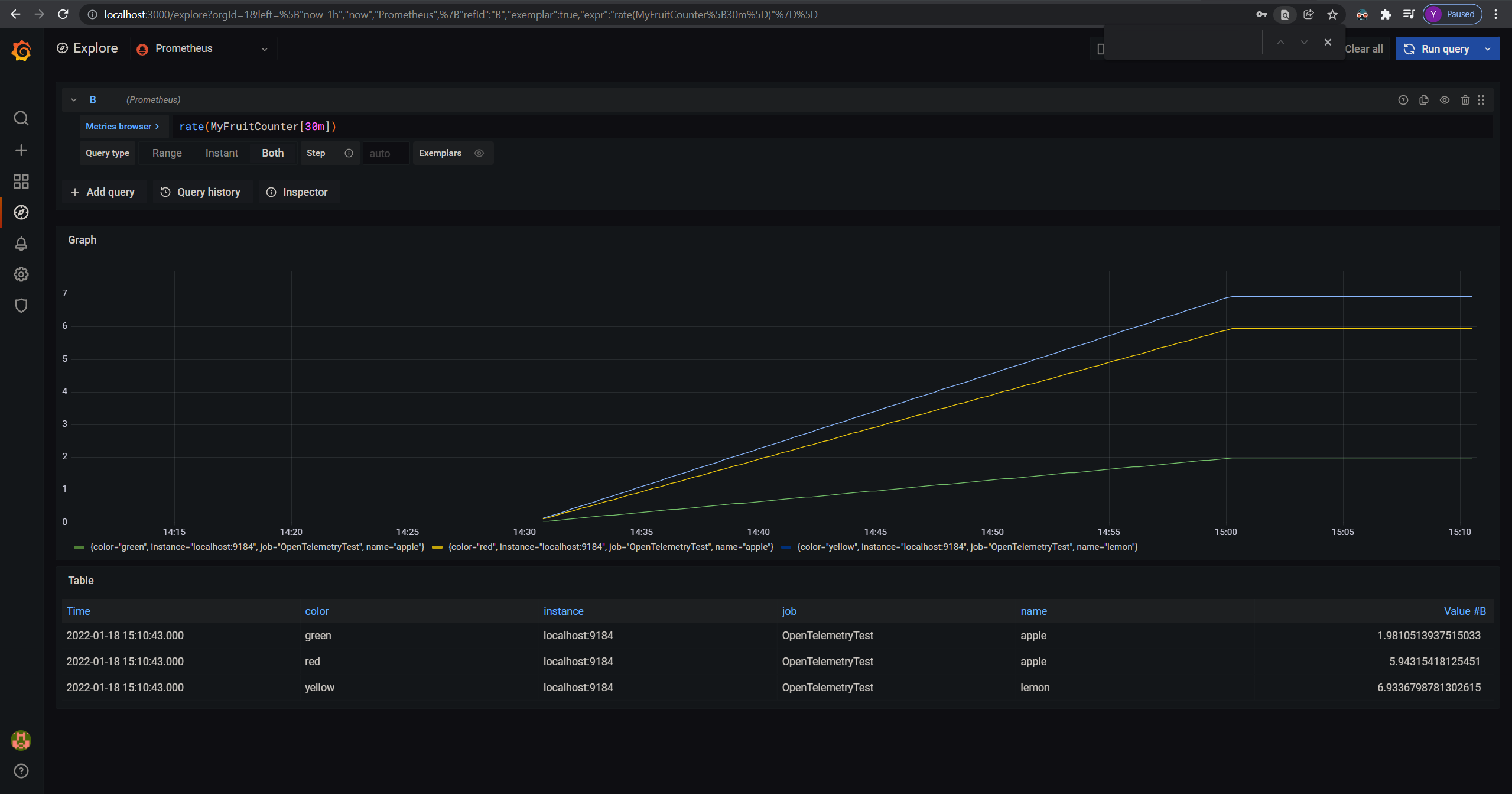

After successfully logging in, click on the explore option on the left panel of
188+
the website - we should be able to write some queries to explore our metrics
189+
now!
190+
191+
Feel free to find some handy PromQL
192+
[here](https://promlabs.com/promql-cheat-sheet/).
193+
194+
In the below example, the query targets to find out what is the per-second rate
195+
of increace of myFruitCounter over the last 30 minutes:
196+
197+
![Grafana dashboard with myFruitCounter metrics rate:](https://user-images.githubusercontent.com/16979322/150242148-f35165a3-ab34-4e8c-88a1-4995ceeb08e2.PNG)

‎docs/metrics/getting-started-prometheus-grafana/getting-started-prometheus-grafana.csproj

Lines changed: 5 additions & 0 deletions
Original file line numberDiff line numberDiff line change
@@ -0,0 +1,5 @@
1+
<Project Sdk="Microsoft.NET.Sdk">
2+
<ItemGroup>
3+
<ProjectReference Include="$(RepoRoot)\src\OpenTelemetry.Exporter.Prometheus\OpenTelemetry.Exporter.Prometheus.csproj" />
4+
</ItemGroup>
5+
</Project>

0 commit comments

Comments
 (0)
