Espruino WiFi and Espruino Pixl.js with 2 Lora RYLR896

[espruino-discuss2]

Posted at 2019-11-13 by michael_101

Hello everybody,

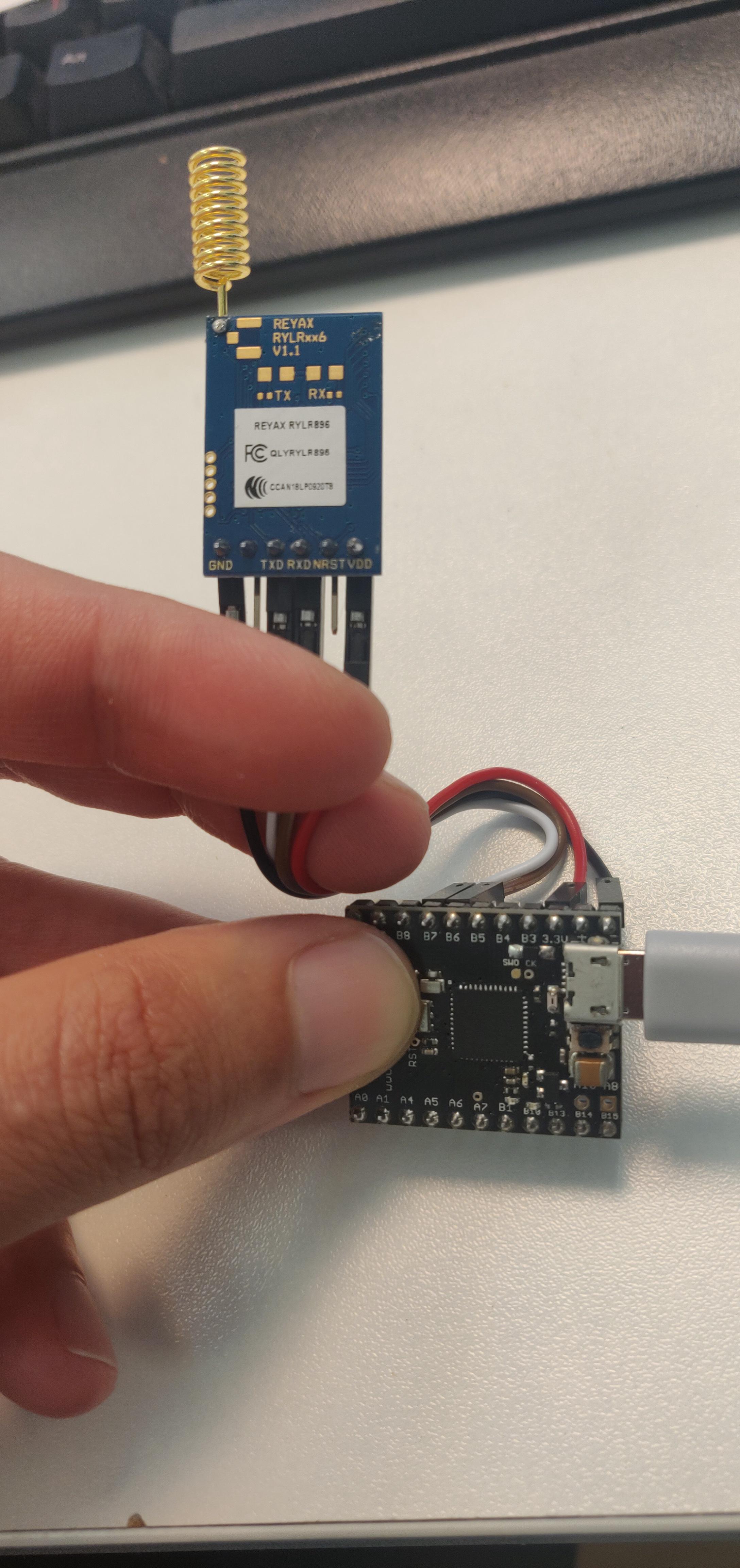

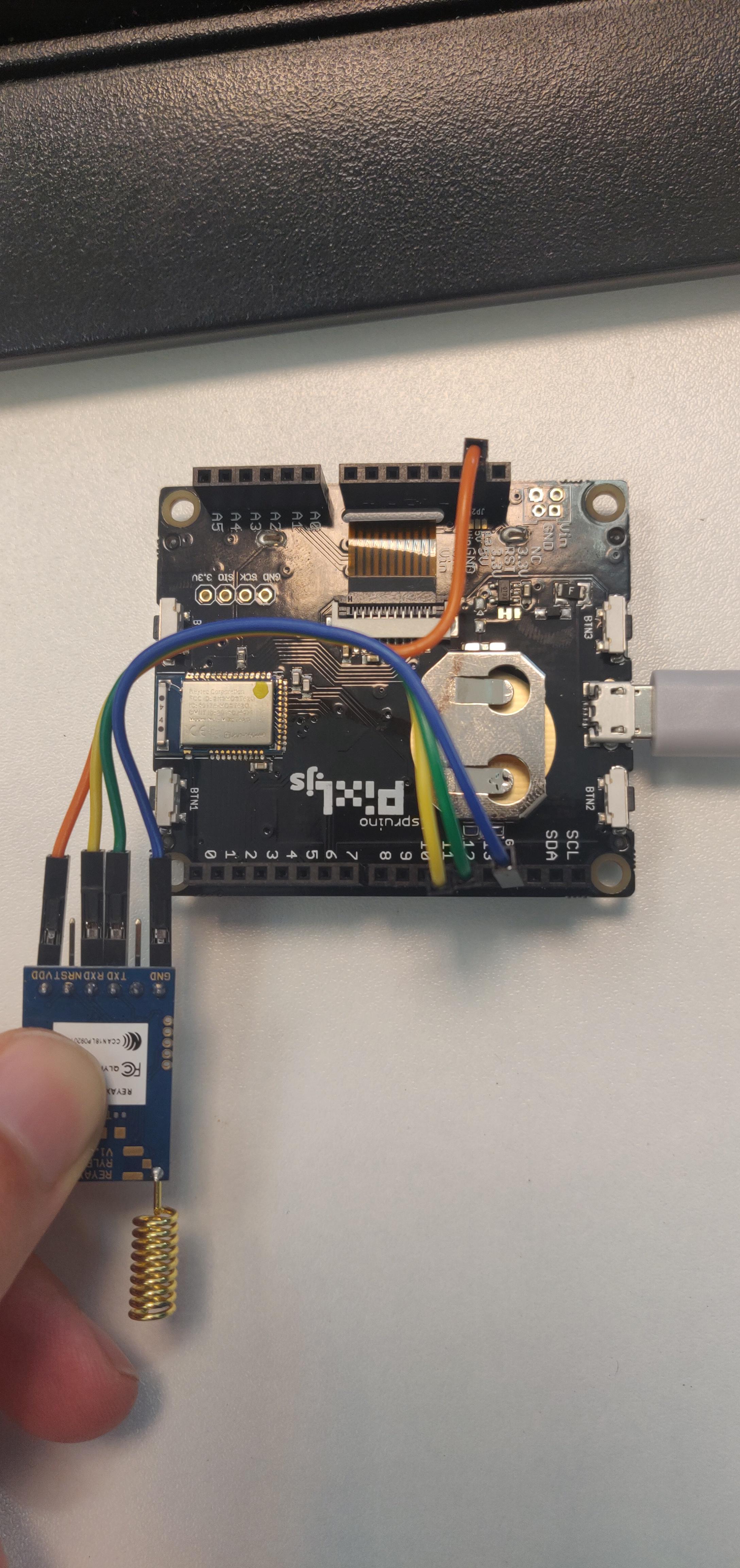

Based on this tutorial REYAX RYLR896/406/895/405 LoRa modules I connected an Espruino WiFi and Espruino Pixl.js with two Lora RYLR896 (see attached photos).

By the way, the line:

var RYLR = require('RYLR.js');

must be

var RYLR = require('RYLR');

So I had an issue with lora in the Pixl.js, but when I removed the VDD pin from D9 and put it on 3.3v everything worked perfectly fine and the 2 Espruino devices are transmitting and receiving data. now my problem is, when I connect the Espruino WiFi to a 5v power supply instead of the PC USB, it powered on and connects to the wifi but the lora doesn't send or receive data, once I plug it in on any PC it works fine.

This issue is only with the Espruino WiFi because when I connect the Pixl.js to the same 5v power supply everything works fine as long as the Espruino WiFi is powered from the PC.

Help will be appreciated.

Attachments:

• IMG_20191113_115126.jpg

• IMG_20191113_114935.jpg

[gfwilliams]

Posted at 2019-11-13 by @gfwilliams

Hi! Thanks - I'll update the docs to remove the .js.

I'd be pretty sure you're experiencing this issue: http://www.espruino.com/Troubleshooting#espruino-works-when-connected-to-a-computer-but-stops-when-powered-from-something-else

It's explained better there, but in short the 'REPL' - the left hand side of the IDE - defaults to Serial1 when USB isn't connected, and that can stop 2-way communication on Serial1. It's an easy fix though!

[espruino-discuss2]

Posted at 2019-11-13 by michael_101

Exactly!
Thank you Gordon!
