Issues running Docker container with espruino-web-ide on Raspberry PI3

[espruino-discuss]

Posted at 2017-02-01 by HumbertoSales

Hello,

I created Docker image with espruino-web-ide, but it has some problems. The left lane shell in Espruino Web Ide not write. I am connected to device, but tutorial step 1 not work (1+2).

Prints attached...

Can you help me?

Sorry for bad english.

Docker repository

https://hub.docker.com/r/humbertosales/espruino-web-ide-rpi/

Running docker container

sudo docker run --name espruino -d --restart="always" --net="host" -v
/dev:/dev -v /var/run/dbus:/var/run/dbus -v
/sys/class/bluetooth:/sys/class/bluetooth -v
/var/lib/bluetooth:/var/lib/bluetooth --privileged
humbertosales/espruino-web-ide-rpi:1.0.1 espruino-server --port 8181

Last version today is 1.0.1.

---

Attachments:

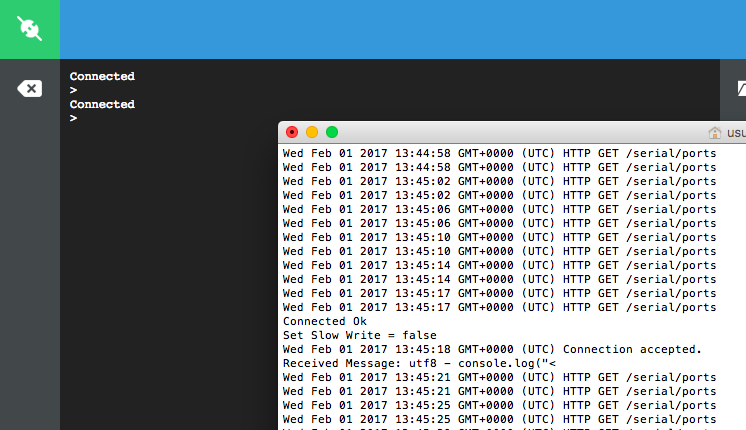

• Captura de Tela 2017-02-01 às 11.45.01.png

• Captura de Tela 2017-02-01 às 11.45.29.png

[gfwilliams]

Posted at 2017-02-02 by @gfwilliams

What kind of device are you trying to connect to?

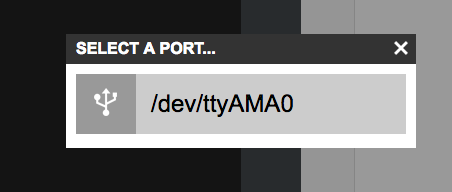

ttyAMA0 is the Raspberry Pi's built-in UART - it'll be sending characters to a pin on the Pi's pin header.

It's a good sign that is working - if you plugged in a USB device it should appear as /dev/ttyACM0 and assuming the baud rate is correct it'd work fine

[espruino-discuss]

Posted at 2017-02-02 by HumbertoSales

Hello Gordon!

I am connecting to the Puck.js via Bluetooth LE.

I can not upload code and not type in the left lane.
:-(

My suspicions are falling on the page ... See!

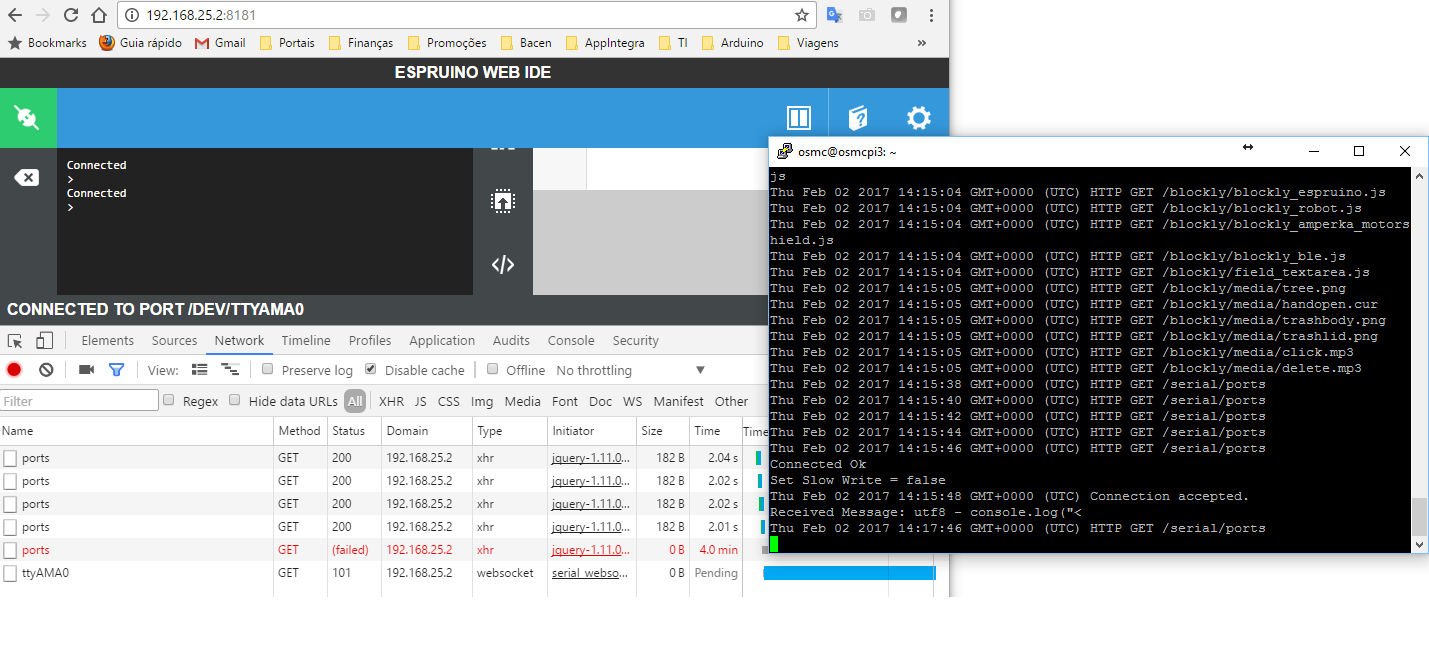

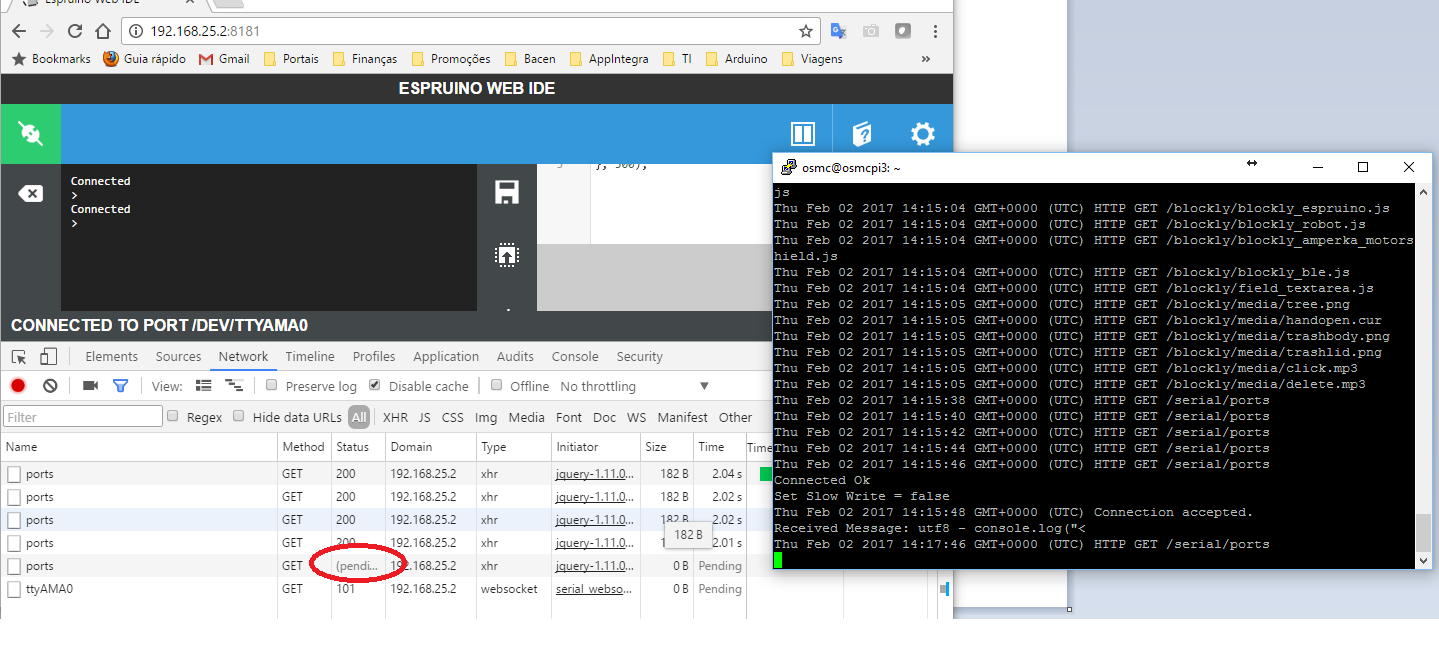

1. The page makes several calls to / serial / ports, but after connecting the last call stays open until timeout.

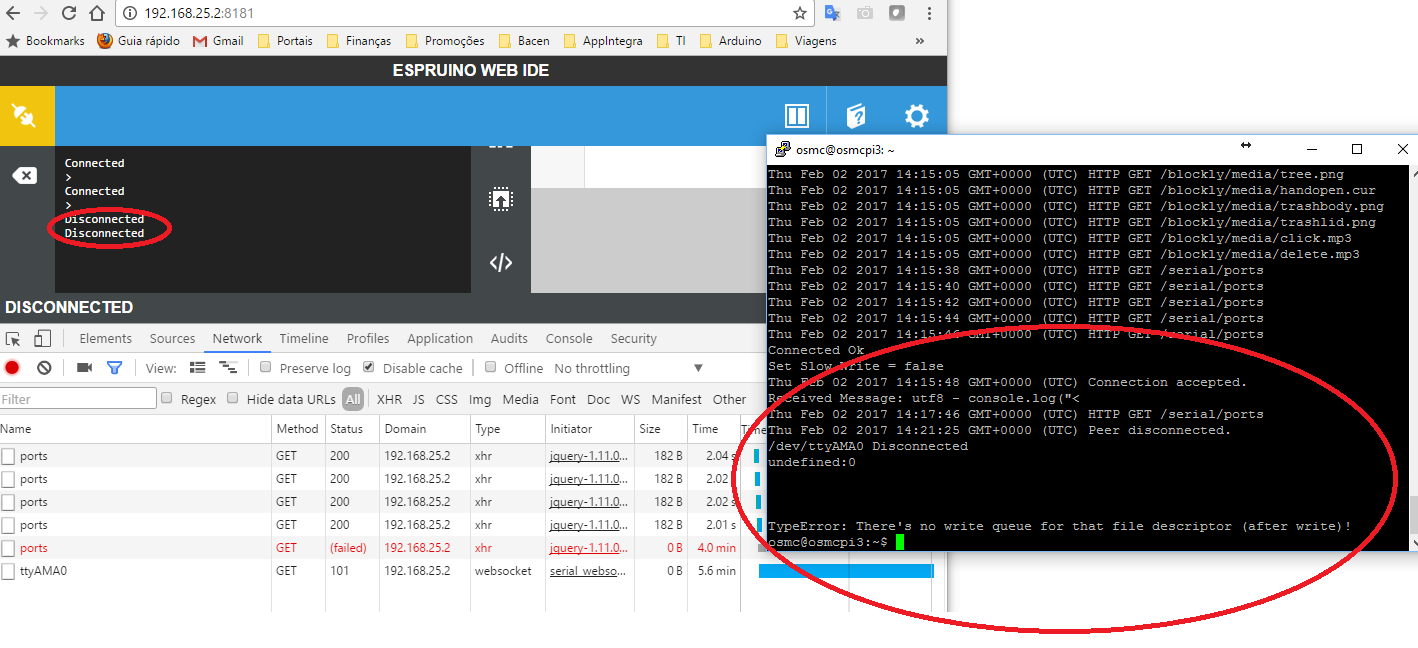

2. When disconected the server docker crashes with error.

What do you think?

Attachments:

• Print01.png

• Print02.png

• Print03.png

[gfwilliams]

Posted at 2017-02-03 by @gfwilliams

I think that's fine.

As I said above - ttyAMA0 is the wrong port - it's not surprising nothing happens.

And you're trying to connect to Puck.js? When you first start the IDE server, does it say anything?

Most likely you just hadn't entered the command:

sudo setcap cap_net_raw+eip $(eval readlink -f `which node`)

before running node.js, so it doesn't have access to the BLE device

[espruino-discuss]

Posted at 2017-02-08 by HumbertoSales

When I start the IDE serve say only "listening port xxxx"...

I was run setcap, but nothing! Problem continue!

Dockerfile

FROM hypriot/rpi-node:7.4.0

MAINTAINER Humberto Sales

# Install dependencies
RUN apt-get -yqq update && \
    apt-get -yqq --no-install-recommends install bluetooth bluez libbluetooth-dev libudev-dev

#    apt-get -yqq autoremove && \
#    apt-get -yqq clean && \
#    rm -rf /var/lib/apt/lists/* /var/cache/* /tmp/* /var/tmp/*

RUN ln /usr/local/bin/node /usr/bin/node

RUN sudo npm install -g espruino-web-ide

#    sudo npm cache clean

RUN sudo setcap cap_net_raw+eip $(eval readlink -f `which node`)

# Installing serialport manual, because node-gyp crash
# https://github.com/espruino/EspruinoWebIDE/issues/161
RUN sudo npm install -g serialport

EXPOSE 8080

CMD espruino-server

[gfwilliams]

Posted at 2017-02-08 by @gfwilliams

When I start the IDE serve say only "listening port xxxx"...

Have you connected a Web Browser to localhost:8080?
