Espruino WEB IDE version .044 Non-access to "all" GPIO in block(s) pane window.

[espruino-discuss3]

Posted at 2014-06-21 by user7114

PC/Windows 8.1 64 bit Chrome Version 35.0.1916.153 m

Using "blocks" to construct simple code for the Espruino, for the first
time, shows an obvious bug/error. When choosing any GPIO from the
drop-down list, any GPIO not visible on the drop-down display screen,
the user has no means to choose other GPIO not visible on the screen.
Note: The GPIO list is very long and cannot be displayed all at the same time.
Not able to cursor or mouse roll-down to the other non-visible GPIO
prevents the user from non-access to all GPIO in the block logic
generator pane. The user is also prevented from just typing in a GPIO
location.

Example: Under "Espruino block" use the "digital read pin block" and
try to choose or check off any GPIO not displayed on the desktop screen.

[espruino-discuss3]

Posted at 2014-06-23 by @gfwilliams

Thanks - the issue has been reported here as well: espruino/EspruinoWebIDE#75

Looks like it's a problem with Blockly, but there is a workaround. When I get a moment I'll see if I can implement it.

---

Posted at 2014-06-24 by @gfwilliams

This is now fixed - it'll auto-update when I release the next version of the Web IDE, but if you can't wait you can install the latest version manually using the instructions at https://github.com/espruino/EspruinoWebIDE

---

Posted at 2014-06-26 by user7114

I have tried the new code (from Github) and nothing has changed?
Is must be a procedure problem or operator problem?

Windows 8.1 64 Bit
Chrome 35.0.1916.153 m (no beta)
Espruino 1v65
Web-IDE v 44
Board: Espruino

---

Posted at 2014-06-26 by Frida

It works fine on UBUNTU 64 bit

---

Attachments:

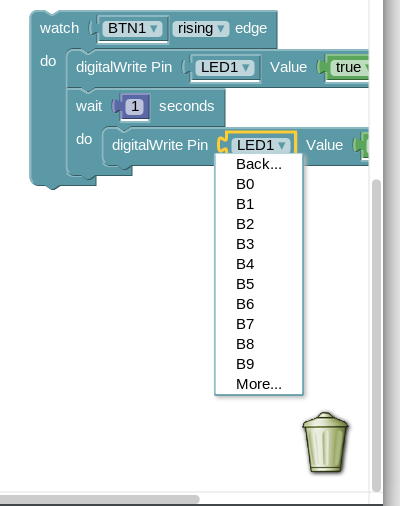

• Skærmbillede fra 2014-06-26 10:24:24.png

---

Posted at 2014-06-26 by @gfwilliams

@user7114 somehow you're using an out of date Web IDE - maybe try downloading it from GitHub again... The latest version from GitHub (and in fact the one that has auto-updated) should be version 45.

---

Posted at 2014-06-26 by user7114

I pulled it again and it "now" says v45 in the extensions page of chrome.
The blockys GPIO selection now says more .... which is OK by me.
