Puck 1.0e - when battery is fully inserted, voltage drops to 0.4v

[espruino-discuss]

Posted at 2022-12-28 by remy

As per subject, I've got a puck (I think from the kickstarter campaign way back), and when I half insert the (new) battery, it powers up fine and probing the 3V and GND test points gives me 3.00v off the battery.

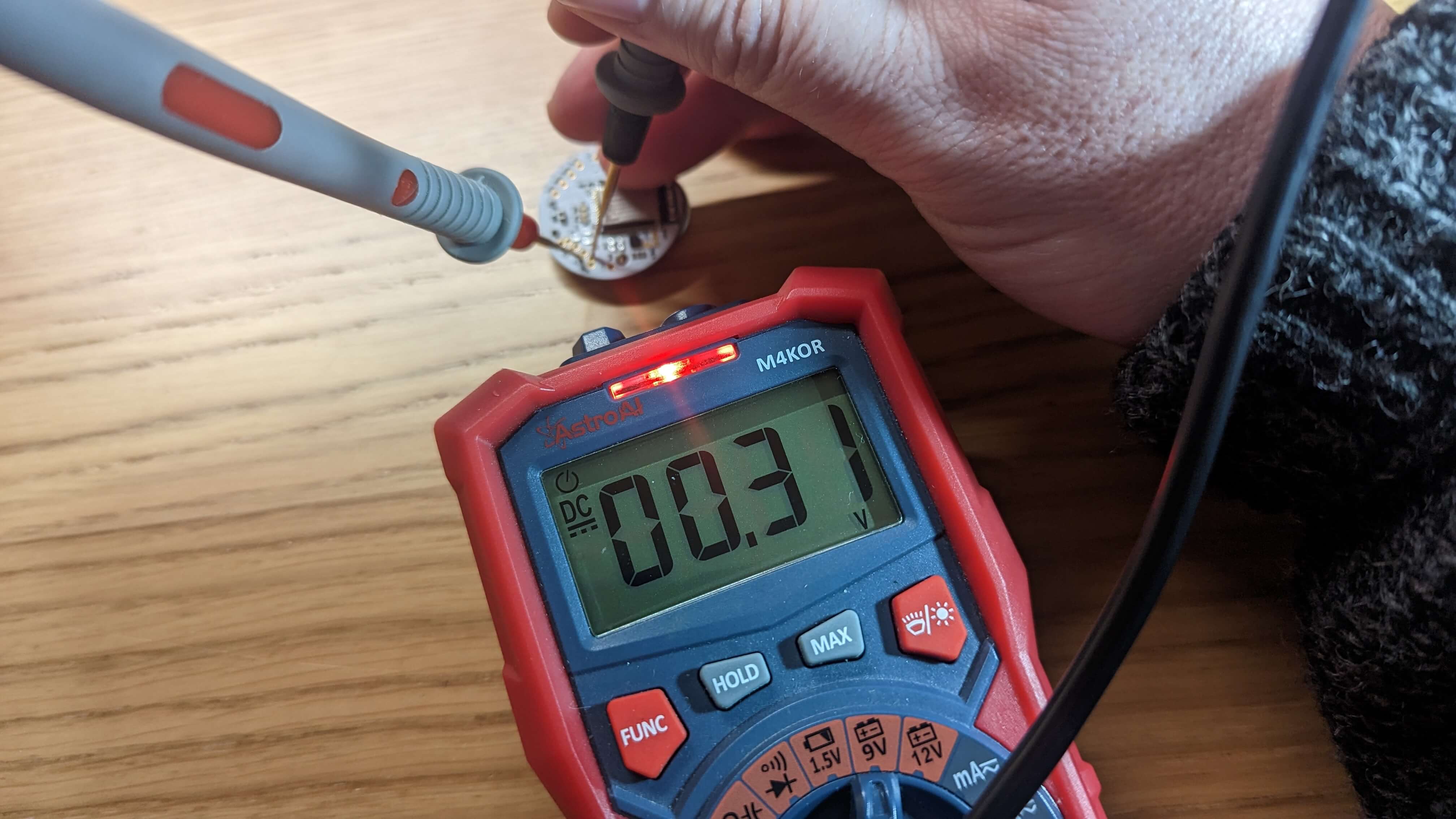

But once I fully push the battery in, the voltage is around 0.2-0.4v - which explains why I couldn't connect to the Puck anymore.

It's visibly clean inside the Puck and barely used. The cell battery is clean too.

Is this a known (ideally fixable) issue?

Any ideas or advice would be much appreciated.

Thanks in advance.

---

Attachments:

• PXL_20221228_134509791.jpg

• PXL_20221228_134515348.jpg

• PXL_20221228_134635139.jpg

• PXL_20221228_134609018.jpg

[gfwilliams]

Posted at 2023-01-06 by @gfwilliams

Hi - I haven't come across this before at all! So the Puck works when the battery is half inserted?

I think you'd have to try and have a look and see if you can spot anything - I guess it could be shorting out on the PCB somehow, or I guess the opposite could be happening - maybe when pushed in further the battery actually loses connection to the Puck? That might happen if the bottom of the battery used was actually a bit concave?
