Eagle Part Library - Pico

[espruino-discuss3]

Posted at 2015-11-27 by Sacha

Hi Espruinos

I try to use the following part library in Eagle 7.5.0:
https://github.com/espruino/EspruinoBoard/tree/master/Pico/Component/espruino_pico.lbr

I copied it to the eagle installation directory in the subdir 'lbr'

When i search in eagle for espruino i only get one uncomplete original espruino board presented.

Thanks

Sacha

[espruino-discuss3]

Posted at 2015-11-27 by @gfwilliams

That's strange...

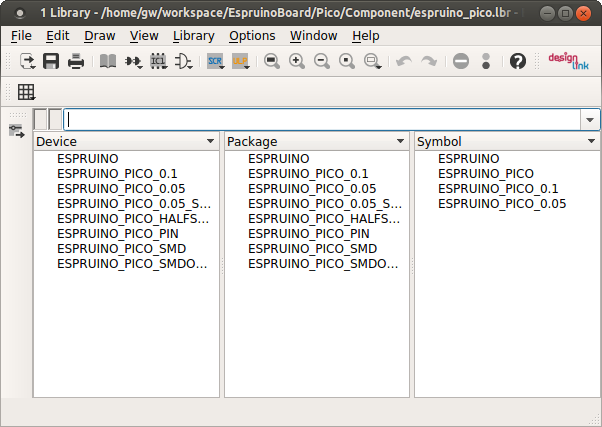

I have 7.4 here and when I open it up I get the following window. What happens if you do File -> Open -> Library from the control panel and open the library directly?

---

Attachments:

• Screenshot from 2015-11-27 13:21:32.png

---

Posted at 2015-11-27 by Sacha

Thanks for your fast answer. Yes when i open it in the control panal i have it all.

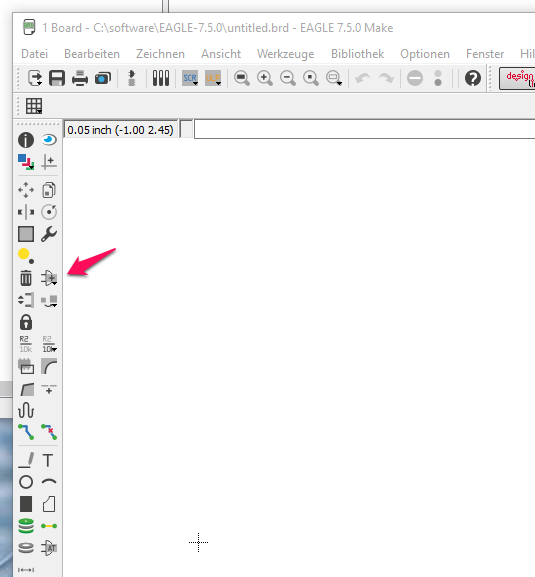

But when i creat a new "board", then try to place object to the board i do not have the pico.

Sorry i'm new to eagle.

Sacha

---

Attachments:

• a.png

---

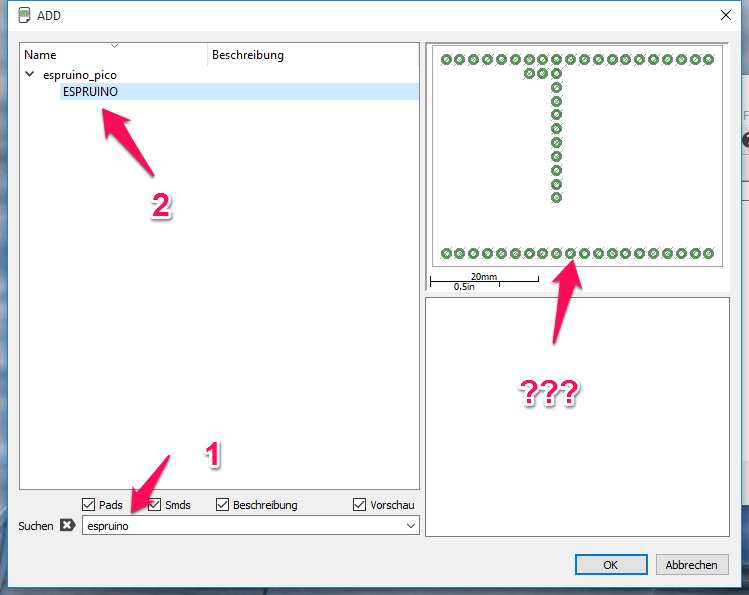

Posted at 2015-11-27 by Sacha

second screenshot

---

Attachments:

• b.png

---

Posted at 2015-11-27 by @gfwilliams

Add a * to espruino in 1 - so espruino*. Then hit enter.

Or try removing espruino from 1 and then manually looking for the espruino_pico library.

The other option is:

• Put espruino_pico.lbr in your project folder
• In Control panel, navigate to it, and click the down arrow to expand espruino_pico.lbr
• Find the outline you want (maybe ESPRUINO_PICO_HALFSMD) and then just click and drag it onto your Schematic (not the board layout).

That's what I usually do - it's much easier than fighting with the 500 libraries in the Add... window. The search there is a disaster and it's easy to miss what you're looking for unless you use wildcards.

---

Posted at 2015-11-28 by Sacha

RTFM! Sorry. Thanks.
