[SOLVED] ESPruino Web IDE doesn't reacts on Windows 10 #5264
Replies: 1 comment
-
|
Posted at 2016-03-04 by @gfwilliams You only get an STM32 driver if you're using an official Espruino board. If you're using an ESP8266 then CH340 is probably correct. You'll have to follow the instructions on http://www.espruino.com/EspruinoESP8266 to flash the firmware, and then set the Web IDE to connect at 115200 baud. Posted at 2016-03-04 by Hasse Thanks for quick reply!
Shall I Write all this on one line without backslashes, or what? I get this error: Regards Posted at 2016-03-04 by DrAzzy Yeah, the slashes to do line breaks only work on Linux. You need to have python 2.7, not python 3.x (this seems to be true of just about all python code I've had to run) Posted at 2016-03-04 by Hasse Well, I guessed that. But what about the error?
Posted at 2016-03-04 by DrAzzy Oh, mistook that for an error caused by the backslashes. You need to run it from a location that can see the .bin files you downloaded, or include the path to those files in the the command. It's starting from the directory you're in when you run the command. Posted at 2016-03-04 by Hasse Alright! 2016-03-04 21:38 .2016-03-04 21:38 .. 2016-03-03 18:49 85 476 changelog.txt 2016-03-03 18:49 1 055 075 espruino_1v85_esp8266.tgz 2016-03-03 18:49 524 288 espruino_1v85_esp8266_combined_512.bin 2016-03-03 18:49 223 240 espruino_1v85_espruino_1r3.bin 2016-03-03 18:49 223 776 espruino_1v85_espruino_1r3_wiznet.bin 2016-03-03 18:49 244 268 espruino_1v85_hystm32_24_ve.bin 2016-03-03 18:49 125 256 espruino_1v85_hystm32_28_rb.bin 2016-03-03 18:49 202 872 espruino_1v85_hystm32_32_vc.bin 2016-03-03 18:49 676 952 espruino_1v85_microbit.hex 2016-03-03 18:49 226 824 espruino_1v85_nucleof401re.bin 2016-03-03 18:49 226 824 espruino_1v85_nucleof411re.bin 2016-03-03 18:49 124 396 espruino_1v85_olimexino_stm32.bin 2016-03-03 18:49 360 984 espruino_1v85_pico_1r3_cc3000.bin 2016-03-03 18:49 361 512 espruino_1v85_pico_1r3_wiznet.bin 2016-03-03 18:49 626 459 espruino_1v85_raspberrypi 2016-03-03 18:49 195 064 espruino_1v85_stm32f3discovery.bin 2016-03-03 18:49 237 792 espruino_1v85_stm32f4discovery.bin 2016-03-03 18:49 110 012 espruino_1v85_stm32vldiscovery.bin 2016-03-03 18:49 591 649 functions.html 2016-03-03 18:49 8 572 licences.txt 2016-03-03 18:49 3 497 readme.txt 21 File(s) 6 434 788 bytes Posted at 2016-03-05 by DrAzzy You need to download the firmware image. I don't know where it is - I haven't updated since @tve's last build. I just chased the links in a circle. @gfwilliams, where are they? You should fix the page to link to them. The pages just link back to the forum thread. Posted at 2016-03-05 by Hasse I managed to flash. I found the files!
Thank you guys for now. I assume that I need kind of "Putty.exe" for next step, connecting to serial port (windows way), correct? Posted at 2016-03-05 by Hasse I made one more step, with "Putty.exe"
Posted at 2016-03-05 by Hasse My mcu is:

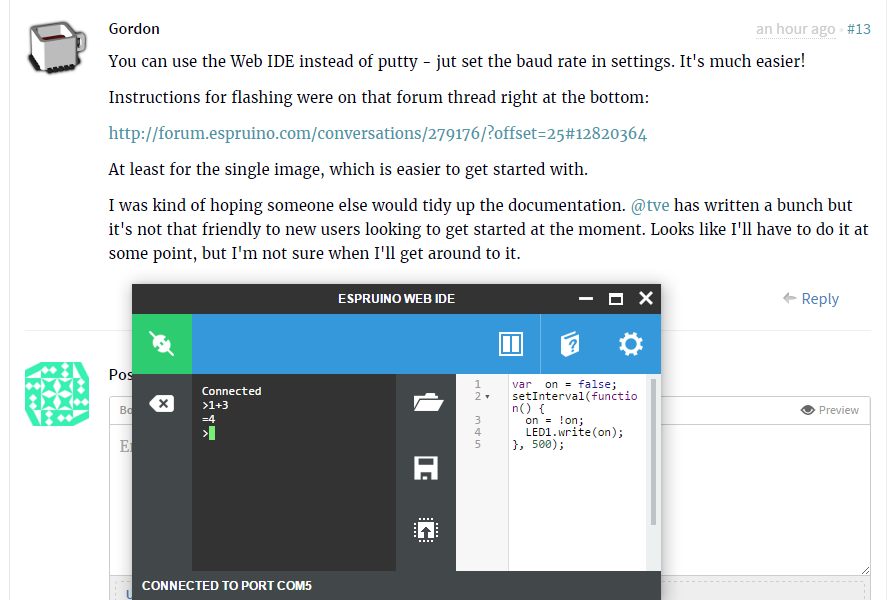

Anyone now which values to use for flash map? Posted at 2016-03-05 by DrAzzy Means it's got the smaller flash. Use the other command, for the 512 kb ones. Ya, go in with putty, set up the WiFi and then use the Web ide Posted at 2016-03-05 by @gfwilliams You can use the Web IDE instead of putty - jut set the baud rate in settings. It's much easier! Instructions for flashing were on that forum thread right at the bottom: http://forum.espruino.com/conversations/279176/?offset=25#12820364 At least for the single image, which is easier to get started with. I was kind of hoping someone else would tidy up the documentation. @tve has written a bunch but it's not that friendly to new users looking to get started at the moment. Looks like I'll have to do it at some point, but I'm not sure when I'll get around to it. Posted at 2016-03-05 by Hasse Thank you guys for helping me! I'm up an running with Web IDE. (For your editing of the documentation I have some screen shots if you are interested) Attachments: |
Beta Was this translation helpful? Give feedback.
Uh oh!
There was an error while loading. Please reload this page.
-
Posted at 2016-03-04 by Hasse
ESPruino Web IDE is installed on windows 10, but I can't write anything on the left side of the IDE.
Why?
In "Devices and printers" I can't find the STM32 device. I only find CH340 usb-serial device. I also have connected one CH340 to my esp8266 and usb-port. I've installed (in 2 steps) the stm32 driver. In fact I tried v.1.4 and also v.1.3.1. But despite that it doesn't appear in "Devices and printers".
Any idea?
