For Fun Wemos D1 Mini - Deep Sleep 0.02 A

[espruino-discuss]

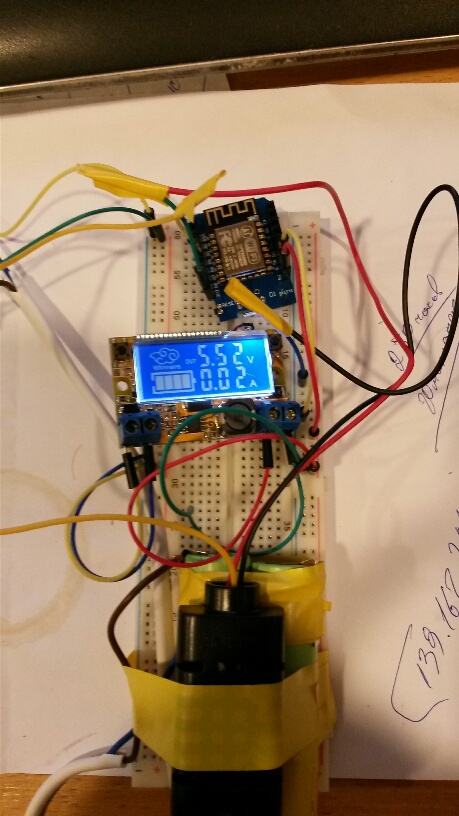

Posted at 2016-10-05 by Aleksandrs

Input: 8.0V - 2x Liteon 2500mAh
Output: 5.52
Getting: 20mAh
Send to server every 5 min from sensor AM2301

---

Attachments:

• 20161005_191403_resized.jpg

[espruino-discuss]

Posted at 2016-10-05 by DrAzzy

Neat!

So how'd you do it?

---

Posted at 2016-10-05 by @allObjects

What exactly are you powering with these 20mA?

---

Posted at 2016-10-06 by Aleksandrs

This only one board Wemos D1 Mini + Sensor DHT21(AM2301)

My script:

// Init ESP8266
var ESP8266 = require("ESP8266");
//ESP8266.setLog(1);
//ESP8266.printLog();
E.setClock(80);


// Init WiFi Networks
var wifi = require("Wifi");
wifi.setHostname("WemosD1mini");
wifi.connect("XXXX", {password:"XXXX"}, function(err){
  setTimeout(function(){
    console.log("connected? err=", err, "info=", wifi.getIP());
  },5000);
});
wifi.stopAP();
wifi.save();



var dht2 = function(){
  var dht = require("DHT22").connect(D14); // GPIO0
  dht.read(
    function(a){
      console.log("Temp is "+a.temp.toString()+" and RH is "+a.rh.toString());
      var newDht = a.temp.toString()+","+a.rh.toString();
      postToServer(newDht);
  });
  return true;
};


// Send Every 5 min
setInterval(function() {

  setTimeout(function () {
    dht2();
  }, 20);

}, 300000);

setDeepSleep(1);

function postToServer(data){
  var options = {
    host: 'XXXXX',
    port: '80',
    path:'/event',
    method:'POST',
    headers: {
      "Content-Type":"application/json",
      "Content-Length":data.length
    }
  };

  require("http").request(options, function(res){
    var d = "";
    res.on('data', function(data) { d+= data; });
    res.on('close', function(data) {
      console.log("Closed: "+d);
    });
  }).end(data);
}
