Newbie, what do I need besides Espruino WiFi and MPU6050 module? #5761
Replies: 1 comment
-
|

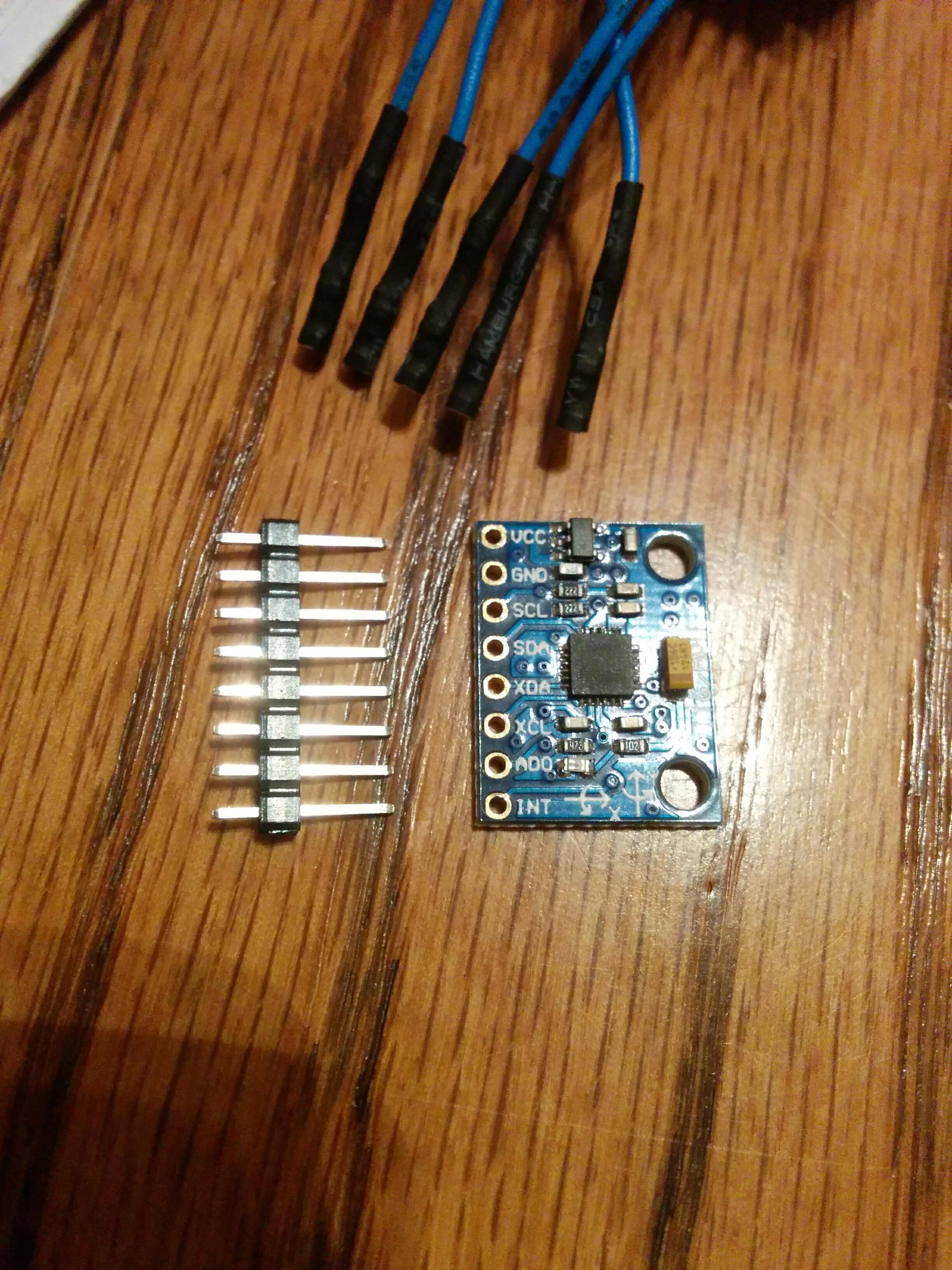

Posted at 2017-04-08 by @gfwilliams Which MPU6050 did you order? Basically all you need is a way to connect them, so some patch wires and/or breadboard... Or literally just wire and solder if you want to make it permanent! You shouldn't need any other components at all :) Posted at 2017-04-08 by trusktr Does the espruino come with a bread board? Or is it just the chip? I got this MPU6050: http://www.ebay.com/itm/171036006952 Posted at 2017-04-11 by @gfwilliams There's no breadboard included I'm afraid. Probably the easiest way for you to connect the two would be to buy some jumper wires with sockets on. If you search eBay for Posted at 2017-04-13 by trusktr Is it the female to female wires, like these ones? Posted at 2017-04-18 by @gfwilliams Yes, those are perfect. Posted at 2017-05-25 by trusktr @gfwilliams Thanks, I didn't get those exact ones, I got wires like the ones in http://forum.espruino.com/conversations/305040/ Would those wires work the same? I put the pins through the holes like in the photo, but the chip is somewhat loose. It doesn't seem like the pins and wires are enough. Maybe I do need a breadboard so the connection is solid? Attachments: Posted at 2017-05-25 by @gfwilliams The wires look fine to me - if you have a soldering iron, soldering the pins themselves into the board would probably be best. While it can work just pushing them in, you can get dodgy connections which can make it very unreliable. Posted at 2017-05-25 by trusktr Alright, thanks. Looks like I gotta run to the store and get a breadboard because when I jiggle the chip, it seems to cause the Espruino to power cycle. Posted at 2017-05-25 by trusktr Oh crap, but a breadboard won't enforce the pins being snug inside the holes. The pins are loose. Are there pins that can tighten to fit snug in the holes? Maybe I just need to buy a few of these and just solder them to have room for mistakes. Posted at 2017-05-26 by @gfwilliams The fact that it resets the Espruino board makes me think that something might be wrong with the wiring? Bad connections would usually make things like I2C functions fail with an error, but not make the board reboot.
There are, but honestly they're pretty evil. You usually have to clamp them in with a vice, and when I looked at it (I originally wanted to ship Espruino boards like it) I felt it was much more likely folks would damage boards doing that than if they just soldered. If you're going for it then buy a soldering iron (one with a reasonably thin tip), solder, and then some protoboard and whatever cheap pinned components you can find - you can then do a bit of practice first with stuff you won't care about. After the first few you'll be fine with it :) Also I'd get a 'solder sucker' - it's dead easy to put too much solder on when you're starting off, and it'll be a pain trying to get it off. For a few dollars a solder sucker will easily take off extra solder if it all blobs together. |
Beta Was this translation helpful? Give feedback.
Uh oh!
There was an error while loading. Please reload this page.
-
Posted at 2017-04-08 by trusktr
I just ordered Espruino WiFi, and the MPU6050 module. What else might I need to order in order to get it all working and connected? Or is just ordering those two things enough?
