NODEMCU AMICA ESP8266Mod HYSIRY not communicating

[espruino-discuss]

Posted at 2017-05-23 by user77327

I'm having an issue communicating with NODEMCU unit after flashing Espruino firmware.

I'm using the following python cmd to flash the firmware

python esptool/esptool.py --port COM7 --baud 115200 write_flash --flash_freq 80m --flash_mode qio --flash_size 4MB 0x0000 "C:\Users\owner\Downloads\espruino_1v92\espruino_1v92_esp8266_4mb\boot_v1.6.bin" 0x1000 C:\Users\owner\Downloads\espruino_1v92\espruino_1v92_esp8266_4mb\espruino_esp8266_user1.bin
 0x3FC000 C:\Users\owner\Downloads\espruino_1v92\espruino_1v92_esp8266_4mb\esp_init_data_default.bin 0x3FE000 C:\Users\owner\Downloads\espruino_1v92\espruino_1v92_esp8266_4mb\blank.bin

Everything seems to complete when flashing and the Espruino Web IDE is able to connect with the unit after flashing but I am not able to type in the left pane of the IDE and any "require" call such as

var wifi = require("Wifi");

errors with "Module Wifi not found".

I am able to upload sketches using Arduino 1.8.1 IDE and the code works fine and the Wifi connects, so I know the NodeMCU unit is not broken(at least not completely).

Any thoughts as to what the issue may be?

--UPDATE 5/24/2017--

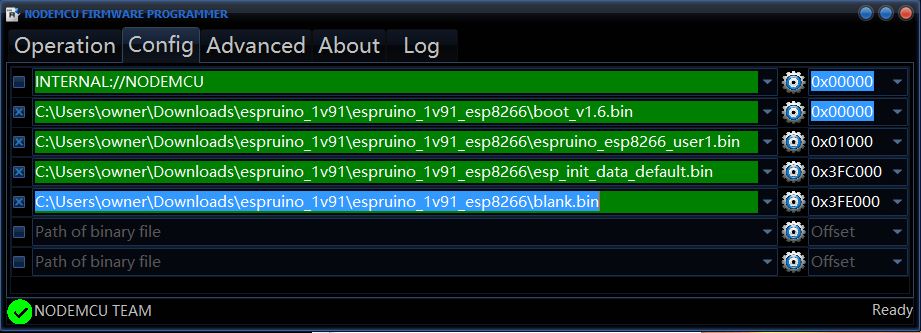

I was able to use NODEMCU-Flasher with the same files listed above and got it working.

Also, I then compared the settings of the NODEMCU-Flasher with the settings I was sending to the python esptool and noticed some differences so I,

1. Updated the memory locations to match the ones used by NODEMCU-Flasher(OxOOOOO etc...)
2. Changed the flash mode to dio(from qio)
3. Changed the flash frequency to 40(from 80)

After those changes I was able to run the esptool using python via command line and all is well! The revised cmd is,

python esptool/esptool.py --port COM7 --baud 115200 write_flash --flash_freq 40m --flash_mode dio --flash_size 4MB 0x00000 "C:\Users\owner\Downloads\espruino_1v91\espruino_1v91_esp8266\boot_v1.6.bin" 0x01000 C:\Users\owner\Downloads\espruino_1v91\espruino_1v91_esp8266\espruino_esp8266_user1.bin 0x3FC000 C:\Users\owner\Downloads\espruino_1v91\espruino_1v91_esp8266\esp_init_data_default.bin 0x3FE000 C:\Users\owner\Downloads\espruino_1v91\espruino_1v91_esp8266\blank.bin

---

Attachments:

• NODEMCUFlasher.JPG

[espruino-discuss]

Posted at 2017-07-11 by user79143

Thank you !!! This was very useful for me. I got it working "AMICA" and "LOLIN"

---

Posted at 2017-07-18 by Hansi

oh, thank you!!! It also helped me)

---

Posted at 2017-09-07 by Antoine

Worked for me as well ! Thank you so much !!!

After trying for hours.

I just create an other thread with the right keyword to help others
