Saving Wifi Config Foobars Everything

[espruino-discuss]

Posted at 2018-01-14 by calebbrewer

I am running espruino 1v95.173 on a NODEMCU board.

I can connect to a WiFi AP like this (Per the docs)...

var wifi = require("Wifi");
wifi.connect("my-ssid", {password:"my-pwd"}, function(err){
  console.log("connected? err=", err, "info=", wifi.getIP());
});
wifi.stopAP();

However the moment I add wifi.save() and reboot, the 8266 gets stuck in what looks like a reboot loop and barfs all over the screen. This forces me to reflash...

---

Attachments:

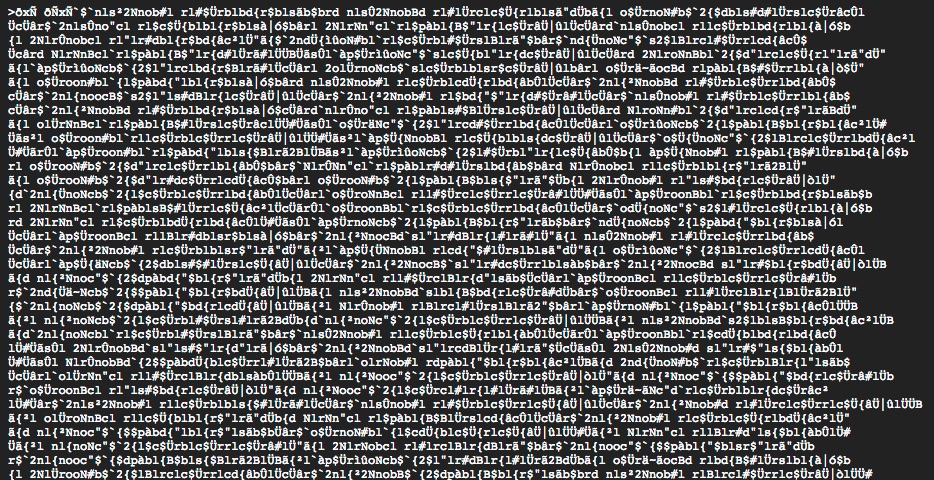

• Espruino_Web_IDE.jpg

[espruino-discuss]

Posted at 2018-01-14 by @MaBecker

I am running espruino 1v95.173 on a NODEMCU board.

Looks like you build your own, what kind of flash commands do you use?

---

Posted at 2018-01-14 by calebbrewer

esptool.py --port /dev/tty.SLAB_USBtoUART --baud 115200 write_flash   --flash_freq 80m --flash_mode qio --flash_size 32m   0x0000 "boot_v1.6.bin" 0x1000 espruino_esp8266_user1.bin

Should I be flashing it differently?

---

Posted at 2018-01-14 by @MaBecker

This is ok for a flash map 4MB:512/512, as if you have a 4MB you can use the 4MB

First run erase_flash to start from a clean base

esptool.py --port /dev/tty.SLAB_USBtoUART --baud 115200 erase_flash

and than try again write_flash

---

Posted at 2018-01-14 by calebbrewer

Thanks for the response. After erasing the flash and re-flashing Espruino the board goes right into a reboot loop. Now I can't get it to stop. I tried it again with the same result.

---

Posted at 2018-01-14 by @MaBecker

Is espruino_esp8266_user1.bin a file you build ?

If Yes -I recommend to flash the official 4MB bin file from download.

---

Posted at 2018-01-15 by calebbrewer

It is the official one from here: http://www.espruino.com/binaries/travis/master/

---

Posted at 2018-01-15 by calebbrewer

This is really odd. I can flash micropython, but if I flash espruino it just goes into a reboot loop (I think it's a reboot loop).

---

Posted at 2018-01-15 by @MaBecker

Which one?

Can you try this one:
http://www.espruino.com/binaries/espruino_1v95_esp8266/

---

Posted at 2018-01-17 by calebbrewer

I erased the flash again and used the files you linked with this command...

esptool.py --port /dev/tty.SLAB_USBtoUART --baud 115200 write_flash   --flash_freq 40m --flash_mode qio --flash_size 4m   0x0000 "boot_v1.6.bin" 0x1000 espruino_esp8266_user1.bin

I am getting the same result.

---

Posted at 2018-01-17 by calebbrewer

So I should have been running this...

esptool.py --port /dev/tty.SLAB_USBtoUART --baud 115200 write_flash --flash_freq 80m --flash_mode qio --flash_size 32m 0x0000 "boot_v1.6.bin" 0x1000 espruino_esp8266_user1.bin 0x3FC000 esp_init_data_default.bin 0x3FE000 blank.bin

This got the board working again.
It still goes nuts and I have to re-flash when I run wifi.save() and reboot.
I am not sure if this is a good idea or not, but I just removed the wifi.save() and moved the wifi connect to the onInit function and it works on reboot. Is there something wrong with doing this?

Thanks for all of your help by the way!

---

Posted at 2018-01-18 by @MaBecker

moved the wifi connect to the onInit function and it works on reboot

Sure, this is a possible workaround.

Please share the Espruino startup screen and the text output after wifi.save()

| |_ ___ ___ _ ||___ ___
| | -| . | _| | | | | . |
||| || |||||_|
|| http://espruino.com
1v95 Copyright 2017 G.Williams
Espruino is Open Source. Our work is supported
only by sales of official boards and donations:
http://espruino.com/Donate
Flash map 4MB:1024/1024, manuf 0xe0 chip 0x4016

---

Posted at 2018-01-18 by DrAzzy

Hmm, I have two that work, but have also had issues. Not sure whether there was a pattern with combined vs non

---

Posted at 2018-01-18 by @MaBecker

if Flash map 4MB:512/512 and chip 0x4016 use this flash command from this link

http://forum.espruino.com/conversations/314732/#14021236

---

Posted at 2018-01-21 by calebbrewer

Here are my screens...

---

Attachments:

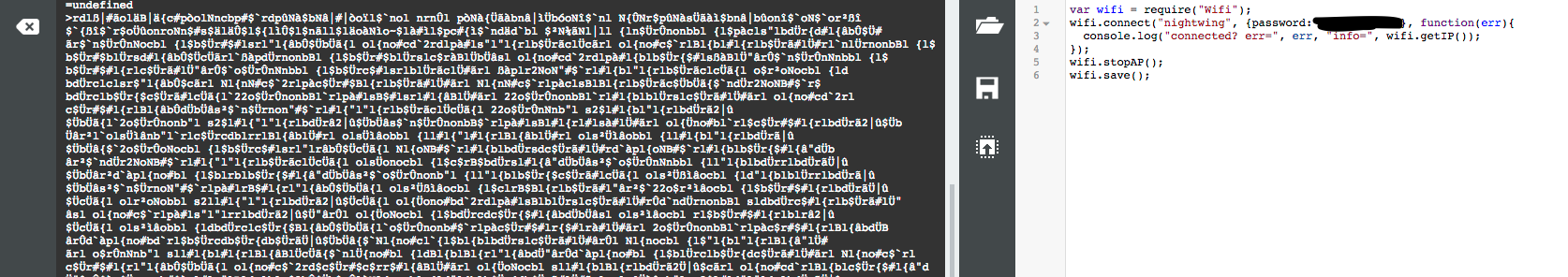

• pre_restart.png

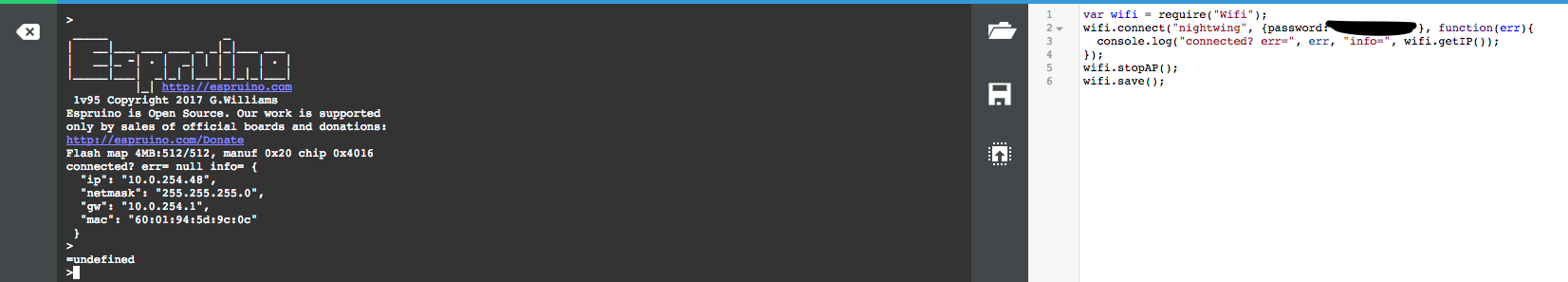

• post_restart.png

---

Posted at 2018-01-21 by calebbrewer

Using the flash command from the other post you linked to worked. Shouldn't the readme file that you get when you download the firmware be updated with this command?

Is it the 4MB-c1 that makes it work? If so, how?

---

Posted at 2018-01-21 by @MaBecker

Yes, of course, see the new version of the REAMDE.txt

Is wifi.save() no working for you?

---

Posted at 2018-01-21 by calebbrewer

Yes it is working now. After I used this...

esptool.py --port /dev/tty.SLAB_USBtoUART --baud 115200 write_flash --flash_freq 80m  --flash_mode qio --flash_size 4MB-c1 0x0000 boot_v1.6.bin 0x1000 espruino_esp8266_user1.bin  0x3FC000  esp_init_data_default.bin 0x3FE000 blank.bin

...it started working.

One difference is that I had to change the baud from 460800 to 115200.

Thank you so much for your help. I'm still not sure how this fixed the wifi.save() issue.

---

Posted at 2018-01-21 by @MaBecker

As you have a 4016 chip which is 4MB of size, you can try those files:

http://www.espruino.com/binaries/espruino_1v95_esp8266_4mb/

esptool.py --port /dev/tty.SLAB_USBtoUART --baud 115200 write_flash --flash_freq 80m --flash_mode qio --flash_size 4MB-c1 0x0000 boot_v1.6.bin 0x1000 espruino_esp8266_user1.bin 0x3FC000 esp_init_data_default.bin 0x3FE000 blank.bin

---

Posted at 2018-01-22 by calebbrewer

Thank you. I am using the 4MB binaries.
