Esp8266 erase flash.

[espruino-discuss]

Posted at 2018-02-02 by Alexander

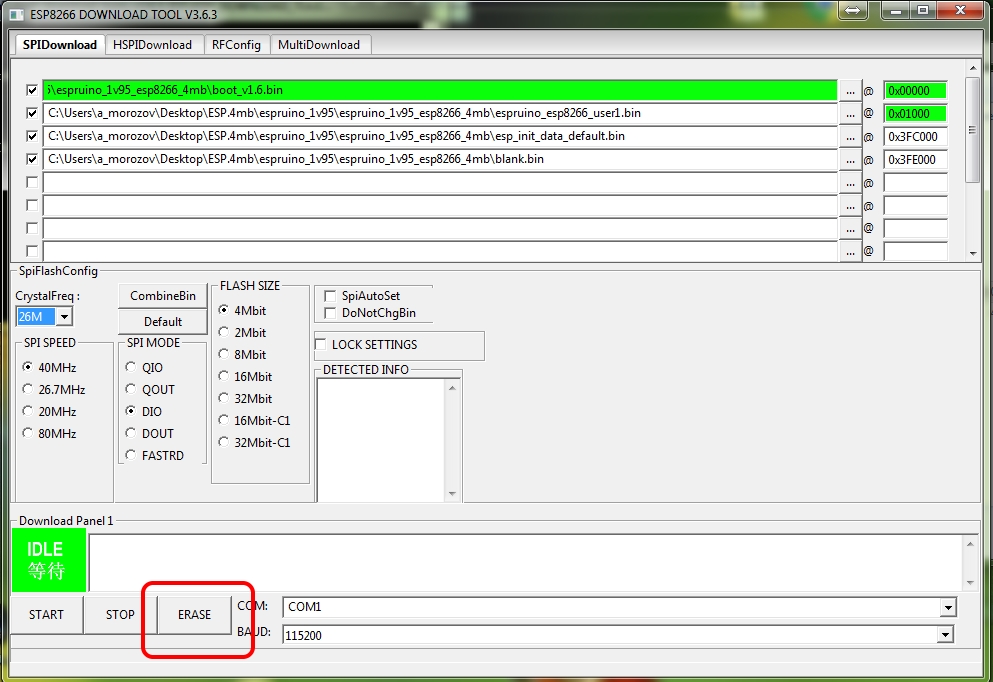

After endless problems, did the clear memory (erase flash). Worked through the program: flash download tools v3.6.3.
Then I uploaded the firmware. The module is triggered. Save() and Reset() work. After I do wifi.save(), lit a blue light, and the module does not connect. What does the function wifi.save? Is there a problem?

---

Attachments:

• ERASE.jpg

[espruino-discuss]

Posted at 2018-02-02 by Alexander

After flashing to 512kb

 _____                 _
|   __|___ ___ ___ _ _|_|___ ___
|   __|_ -| . |  _| | | |   | . |
|_____|___|  _|_| |___|_|_|_|___|
          |_| http://espruino.com
 1v95 Copyright 2017 G.Williams
Espruino is Open Source. Our work is supported
only by sales of official boards and donations:
http://espruino.com/Donate
Flash map 512KB:256/256, manuf 0xe0 chip 0x4016
WARNING: *** Your flash chip does not match your flash map ***
>require("ESP8266").getFreeFlash();
=[
  { "addr": 487424, "length": 4096 }
 ]
>

wifi.save() - works

---

Posted at 2018-02-02 by ClearMemory041063

Try using the files in this directory

\espruinoEsp8266Flash\espruino_1v95_esp8266

not this directory

\espruinoEsp8266Flash\espruino_1v95_esp8266_4mb"

You might want to switch to ESPtool.py (Linux or windows)
I used to use the ExpressIF tool but switched to ESPtool.py because I can use batch files to do the flashing in a few mouse clicks:

Using Batch Files to Flash

How to get ESPtool.py

some info

One gotcha is the ExpressIF tool flash size is given in bits, ESPtool.py uses bytes.

Which ESP8266 chip are you trying to flash?

---

Posted at 2018-02-02 by Alexander

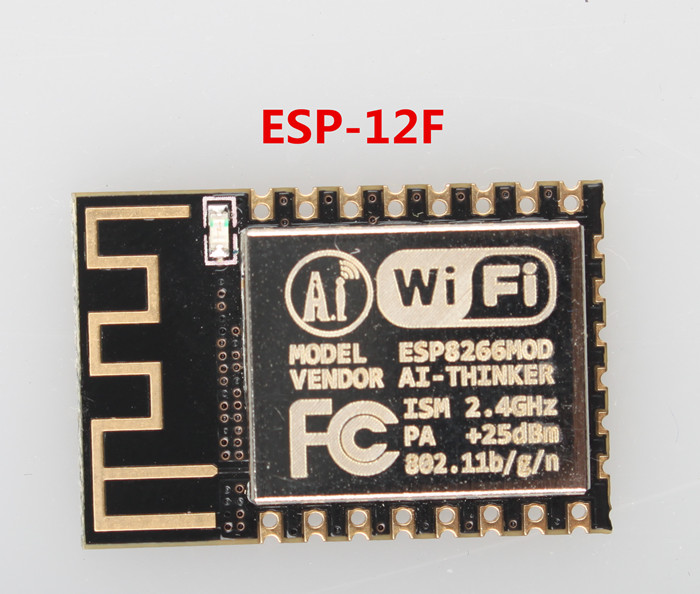

ESP12F

---

Attachments:

• TB2IjHPfXXXXXcoXpXXXXXXXXXX_!!882680026.jpg

---

Posted at 2018-02-02 by Alexander

ESP12F.
Tried the same module, to erase the memory and overwrite, the problem remained.

---

Posted at 2018-02-02 by Alexander

0x000000 0 4KB Bootloader with flash type/size header
0x001000 4KB 468KB Espruino firmware, first partition
0x076000 472KB 4KB SDK RF calibration save area on 512KB modules
0x077000 476KB 4KB EEPROM emulation
0x078000 480KB 12KB Espruino save() area
0x07B000 492KB 4KB Espruino system and wifi settings
0x07C000 496KB 16KB 512KB flash: Espressif SDK system params, else unused
0x080000 512KB 4KB SDK RF calibration save area on 1MB and larger modules
0x081000 516KB 472KB Espruino firmware, second partition
0x0F7000 988KB 4KB Unused
0x0F8000 992KB 16KB Unused
0x0FC000 996KB 16KB 1MB flash: Espressif SDK system params, else unused
0x100000 1MB approx 1MB-3MB flash unused on 2MB-4MB modules
0x1FC000 2032KB 16KB 2MB flash: Espressif SDK system params, else unused
0x3FC000 4080KB 16KB 4MB flash: Espressif SDK system params, else unused

I think I deleted all the data from memory.
How can I recover them?

For firmware ESP12F on 4mb I used nodemcu flasher. Since using esp flash download tool ESP12F on 4mb is recorded and does not work at all. Esp flash download tool records only at 512kb.

---

Posted at 2018-02-02 by ClearMemory041063

I just flashed the same type of chip using this batch file a couple of days ago.

:: Flash ESP8288-12 4MB chip with Espruino
:: CD C:\Users\jj\Documents\espruinoEsp8266Flash\espruino_1v95_esp8266
set /p pport=Enter a Com port
echo %pport%
pause
esptool.py --port %pport% --baud 115200 write_flash --flash_freq 40m --flash_mode qio --flash_size 4MB 0x0000 "boot_v1.6.bin" 0x1000 espruino_esp8266_user1.bin 0x3FC000 esp_init_data_default.bin 0x3FE000 blank.bin
pause

:: To flash a 4MB esp8266 (e.g. esp-12) using the serial port use:
:: esptool.py --port [/dev/ttyUSB0|COM1] --baud 115200 write_flash \
::  --flash_freq 80m --flash_mode qio --flash_size 32m \
::  0x0000 "boot_v1.6.bin" 0x1000 espruino_esp8266_user1.bin \
::  0x3FC000 esp_init_data_default.bin 0x3FE000 blank.bin

Give that a try.
If you get Espruino up and running then in the left window of WebIDE try to following commands:

require("ESP8266).getFreeFlash()

and then

process.env

---

Posted at 2018-02-02 by Alexander

process.env
={
  "VERSION": "1v95",
  "BUILD_DATE": "Dec 15 2017",
  "BUILD_TIME": "17:10:27",
  "GIT_COMMIT": "7dbffcf5da09570bd95714b2386a12ab25ab1d50",
  "BOARD": "ESP8266_4MB",
  "CHIP": "ESP8266",
  "CHIP_FAMILY": "ESP8266",
  "FLASH": 0, "RAM": 81920,
  "SERIAL": "6001943c-9f1e",
  "CONSOLE": "Serial1",
  "EXPORTS": { "jsvLock": 1075854228, "jsvLockAgainSafe": 1075854316, "jsvUnLock": 1075854940, "jsvSkipName": 1075864796,
    "jsvMathsOp": 1075871204, "jsvMathsOpSkipNames": 1075872992, "jsvNewFromFloat": 1075862156, "jsvNewFromInteger": 1075862040, "jsvNewFromString": 1075861816,
    "jsvNewFromBool": 1075862124, "jsvGetFloat": 1075868928, "jsvGetInteger": 1075864092, "jsvGetBool": 1075869304, "jspeiFindInScopes": 1075887224,
    "jspReplaceWith": 1075886908, "jspeFunctionCall": 1075898260, "jspGetNamedVariable": 1075889136, "jspGetNamedField": 1075889580, "jspGetVarNamedField": 1075889712,
    "jsvNewWithFlags": 1075861420 }
 }
>r

---

Posted at 2018-02-02 by Alexander

After downloading the 4mb memory module works. I cannot auto reconnect after downloading the code via the console and reboot the console. Reconnect only works manually. And when I give the command Wifi.save () esp12f die completely.

---

Attachments:

• Node.jpg

---

Posted at 2018-02-02 by DrAzzy

The issue with wifi.save() happens when you use flashsize 4MB or 32m - on 4MB flash, you need to do 4MB-c1 or 32m-c1

The readme needs to be corrected.

---

Posted at 2018-02-03 by Alexander

The issue with wifi.save() happens when you use flashsize 4Mb on 4MB flash.
After a full clean flash ESP12F.

---

Posted at 2018-02-03 by @MaBecker

If flashing files from espruino_1v95_esp8266_4mb than --flash_size 4MB-c1 or --flash_size 32m-c1 is a must, because wifi save page location is flash map dependent!

@drazzy created PR for README_flash.txt

---

Posted at 2018-02-04 by Alexander

Ie can be I'm downloading 4mb to 32mb, in this bug?

---

Posted at 2018-02-04 by @MaBecker

Yes, if you did this: flash espruino_1v95_esp8266_4mb with --flash_size 4MB

---

Posted at 2018-02-04 by Alexander

Well, tomorrow I will try to fix it, thanks

---

Posted at 2018-02-05 by Alexander

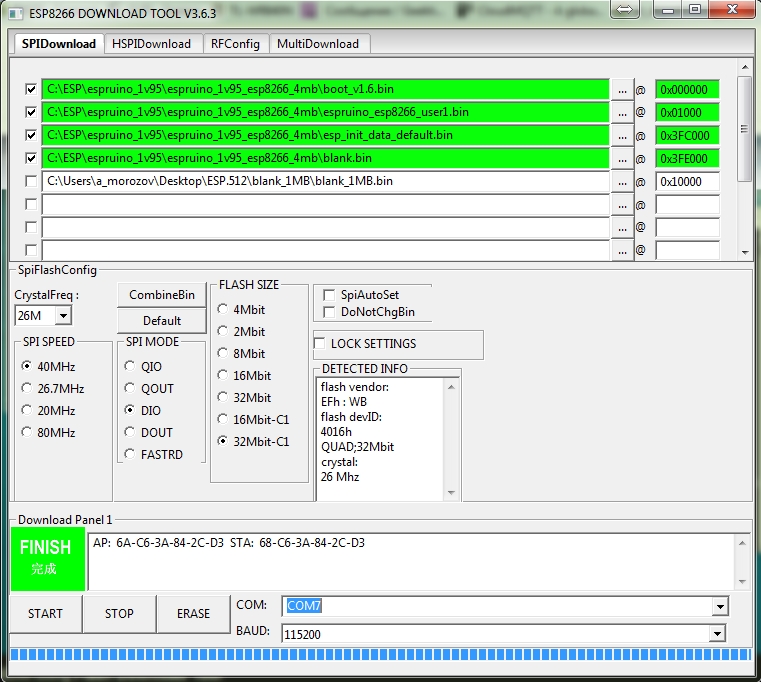

Finally got to flash. Thanks for the help! Looks firmware so:

---

Attachments:

• ESP12F.jpg

---

Posted at 2018-02-05 by @MaBecker

Well, you can make this more speedy:
use spi speed 80, spi mode qio and baud 460800

---

Posted at 2018-02-05 by Alexander

Great!
