Esp8266MOD Bug?

[espruino-discuss]

Posted at 2024-01-02 by ZeoNish

Hey bro's. Its bug 2v18 ?

2v17 its ok work...

rll�r�$�ânÄlÇb|������r�bÄb�ònn�lnn�bb�p�$b�lrlpòn���lbnnÄ�bÄònn'l��l`����nnl`���nr���n��l`�pòn��r����bnnìäÄ�bÄònn'l`����nnl`���nr���n�$`�pòn��r����Çlbnn��ÄbÄònn'l`����nnl`���nr���n��l`��r��n��l`�rl��n��ònn���br�nnnäl�b$`�l�ll�����älll~rll²llln��äl�ll�ll2l��nr�nlbb����ll�bÇÄllpb��br�Ä'brbr�Ä'b�b�ll��n�ònÄ�ânlr�b��ll`�rl������nÇ�r�òn|ìllll`��b���b�r��lânb�n�l`���r�lÄl�þStorage is corrupt.
Erasing Storage Area...
Erase complete.
 ____                 _
|  __|___ ___ ___ _ _|_|___ ___
|  __|_ -| . |  _| | | |   | . |
|____|___|  _|_| |___|_|_|_|___|
         |_| espruino.com
 2v18 (c) 2021 G.Williams
Espruino is Open Source. Our work is supported
only by sales of official boards and donations:
http://espruino.com/Donate
Flash map 4MB:512/512, manuf 0x20 chip 0x4016
Unable to retrieve board information. Connection Error?
Connected to COM3 (No response from board)
>

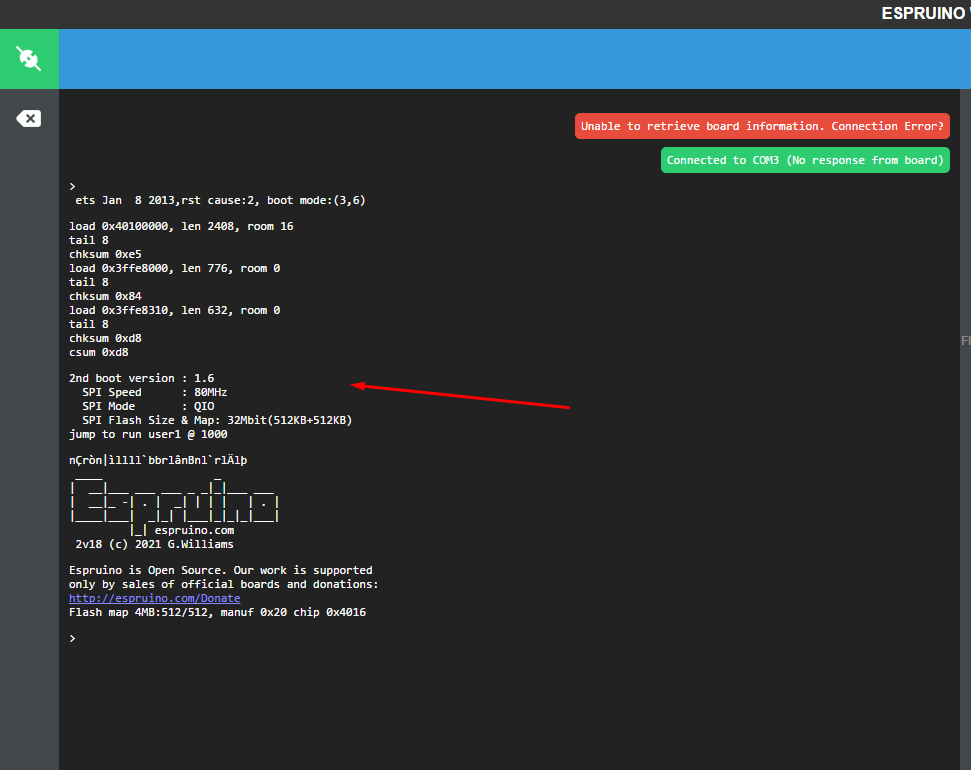

 ets Jan  8 2013,rst cause:2, boot mode:(3,6)
load 0x40100000, len 2408, room 16
tail 8
chksum 0xe5
load 0x3ffe8000, len 776, room 0
tail 8
chksum 0x84
load 0x3ffe8310, len 632, room 0
tail 8
chksum 0xd8
csum 0xd8
2nd boot version : 1.6
  SPI Speed      : 80MHz
  SPI Mode       : QIO
  SPI Flash Size & Map: 32Mbit(512KB+512KB)
jump to run user1 @ 1000
������nÇ�r�òn|ìllll`��b���b�s��lânb�n�l`���r�lÄl�þ
 ____                 _
|  __|___ ___ ___ _ _|_|___ ___
|  __|_ -| . |  _| | | |   | . |
|____|___|  _|_| |___|_|_|_|___|
         |_| espruino.com
 2v18 (c) 2021 G.Williams
Espruino is Open Source. Our work is supported
only by sales of official boards and donations:
http://espruino.com/Donate
Flash map 4MB:512/512, manuf 0x20 chip 0x4016
>

PS. My fail... im use FW 512 ... My bord 4 mb.
But v16 Both firmware work...

---

Attachments:

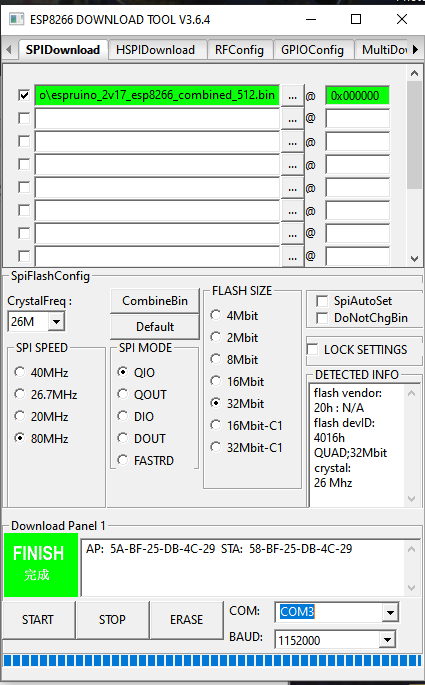

• flash tool settiongs.png

• 2v18.png
• 2v17.webm
• 2v18.webm
• 2v19.webm

[espruino-discuss]

Posted at 2024-01-03 by ZeoNish

Not work... Bug?

---

Attachments:

• Client IDE.webm
• WEB IDE.webm

---

Posted at 2024-01-04 by @MaBecker

Hmm, is there a reason why you do not flash the 4MB firmware file? First step is to erase and than flash.

---

Posted at 2024-01-04 by ZeoNish

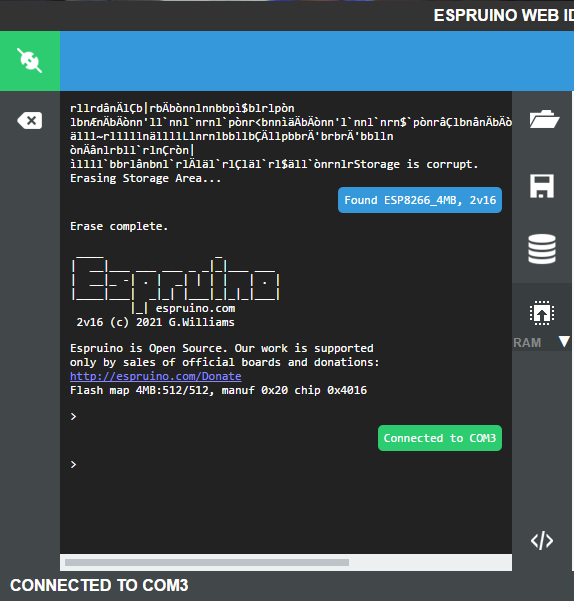

2v16, 2v17 work 512 file and 4 mb file.

2v18, 2v19 512 file not work. 4 mb work.

---

Attachments:

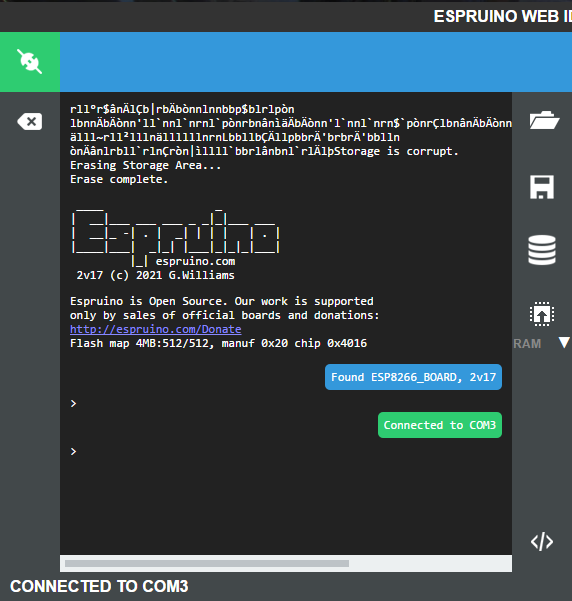

• 2v17 - 512.png

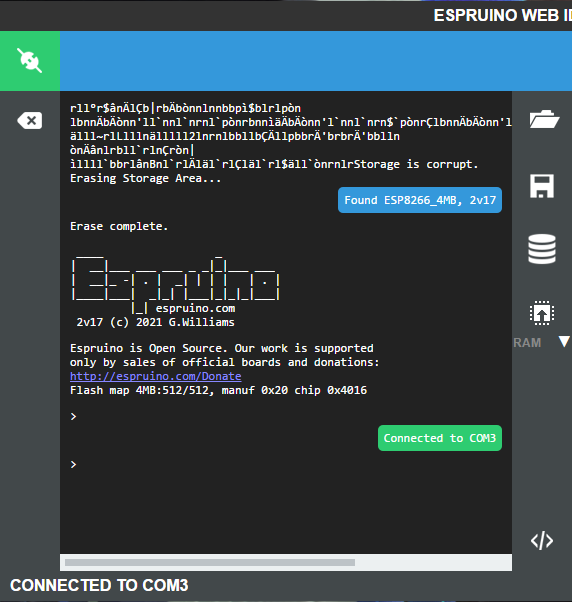

• 2v17 - 4mb.png

• 2v16 - 4mb.png

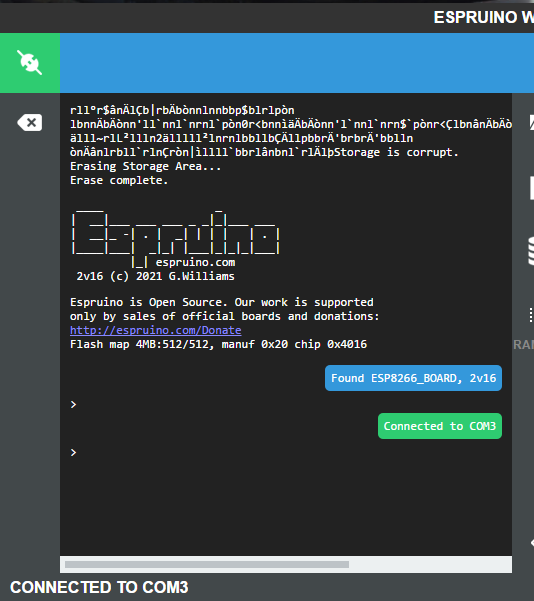

• 2v16 - 512.png

---

Posted at 2024-01-04 by ZeoNish

post close... all good...
