ESP32 with CA + PRIVATE + CERTIFICATE

[espruino-discuss3]

Posted at 2019-09-18 by tcpipchip

Gordon
I followed the instructions
http://www.espruino.com/Storing+HTTPS+Certificates
And make execute
https://www.dropbox.com/s/dj6fcj0039064b­j/gordon.png?dl=0

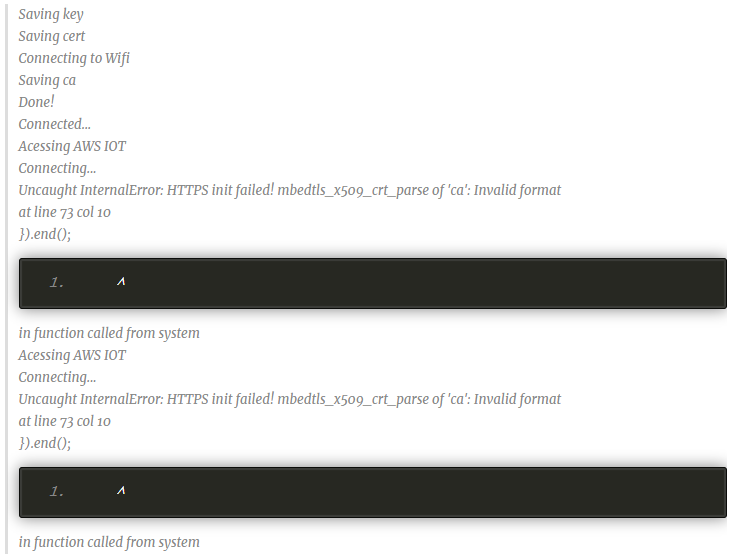

But got always the same error during executing...
have you idea about ?

---

Attachments:

• a.png

[espruino-discuss3]

Posted at 2019-09-19 by Robin

Wed 2019.09.18

Hi @tcpipchip

This seems to be a continuation of content from this thread, am I correct?

http://forum.espruino.com/conversations/323658/?offset=50#comment14901112

See #64 in above thread, for Gordon's succinct position with ESP32 on this matter.

http://forum.espruino.com/comments/14898601/   #64

While @gfwilliams is focusing his skill set on Authentic Espruino boards, and his time is valuable, others might be able to assist. It would be nice to know the environment and available memory. Please post the results of process.memory() and process.env for others to garner detail in your setup.

---

Posted at 2019-09-19 by user95229

Yes, i was on wrong topic, sorry!

I will post that values before to run the script that call routine with certificates

Sorry again! I have to make that work to put to in my AWS IOT book with ALEXA

---

Posted at 2019-09-19 by tcpipchip

|  __|___ ___ ___ _ _|_|___ ___
|  __|_ -| . |  _| | | |   | . |
|____|___|  _|_| |___|_|_|_|___|
         |_| espruino.com
 2v04 (c) 2019 G.Williams
Espruino is Open Source. Our work is supported
only by sales of official boards and donations:
http://espruino.com/Donate
>Saving ca
Saving key
Saving cert
Connecting to Wifi
Connected...
{ "free": 2155, "usage": 145, "total": 2300, "history": 485,
  "gc": 0, "gctime": 2.03 }
{
  "VERSION": "2v04",
  "GIT_COMMIT": "3956264e",
  "BOARD": "ESP32",
  "FLASH": 0, "RAM": 524288,
  "SERIAL": "a4cf1275-31c8",
  "CONSOLE": "Serial1",
  "MODULES": "Flash,Storage,heatshrink,fs,net,dgram,tls,http,NetworkJS,Wifi,TelnetServer,crypto,neopixel",
  "EXPTR": 1073484860 }
Acessing AWS IOT
Connecting...
Uncaught InternalError: HTTPS init failed! mbedtls_x509_crt_parse of 'ca': Invalid format
 at line 75 col 10
  }).end();
         ^
in function called from system
>

Source code
https://www.dropbox.com/s/3i0cig5pl9qtd7e/code.js?dl=0

Let me know if runs in your ESP32

---

Posted at 2019-09-19 by Robin

Confirming: Is the amount of free mem that after the entire upload of source code?

"free": 2155, "usage": 145

The usage seems to suggest that no certificate code has been uploaded?

---

Posted at 2019-09-19 by @gfwilliams

@robin the certificates end up in flash memory so won't use RAM.

You could try confirming that the certificates really are the same as you put in... eg:

oca == atob("MIIFgDCCA2gCCQD1KANs3obrTjANBgkqhkiG9w0BAQsFADCBgTELMAkGA1UEBhMCVVMxCzAJBgNVBAgTAk1BMQ8wDQYDVQQHEwZCb3N0b24xEzARBgNVBAoTCkV4YW1wbGUgQ28xEDAOBgNVBAsTB3RlY2hvcHMxCzAJBgNVBAMTAmNhMSAwHgYJKoZIhvcNAQkBFhFjZXJ0c0BleGFtcGxlLmNvbTAeFw0xNTExMjcxMjIyMzFaFw00MzA0MTMxMjIyMzFaMIGBMQswCQYDVQQGEwJVUzELMAkGA1UECBMCTUExDzANBgNVBAcTBkJvc3RvbjETMBEGA1UEChMKRXhhbXBsZSBDbzEQMA4GA1UECxMHdGVjaG9wczELMAkGA1UEAxMCY2ExIDAeBgkqhkiG9w0BCQEWEWNlcnRzQGV4YW1wbGUuY29tMIICIjANBgkqhkiG9w0BAQEFAAOCAg8AMIICCgKCAgEAwjlJ3eyrnGIiJiplY5mvIaaoMC20oR4Jx5+FOXNJJhjSz9mOoqcpEe2U6ZmmVfcpc8zdt1f9KkED5yjzpnF02CG+KYaRs/Rfj0NJejcpBN3Hn4R6+yJek2rYrKi4uZyMZrWx/8PTp/lEypAEBf/2vX9WYNgi5eWyHeHEfJ4yucRI1UgRw5W/RLYoAePAPT1ekB66NbosBIZhRXJvjqED/jOMOlpHgNPQHTUyPj5lR8ZTSduATUQac6qRx9pdYyVICVE8bxma56R0pX8Cdx/wg+5gKOXUPuXW1xTPNuH4JpNTd7huJwa8Ff0ReKTLHZk1hYB7uDzL5moc8kylYEwz2W13KyXxZbh3kClVSNZvPbrcp1eWoyJyznLRLVv3cCWQwmEMr1071Th4/6dnUZ/wl085HIjV93X9H8nzZ7VBkwHD8ZHB1foW0/jgbK0qsH2gV7frGFPxZydmk/Nrwdl3RtoM+xEpQI7cPYDf9j/CX/ynM4LfOeHhVfMrx0I3E8wNPX9MU+O+Pu6wsT4WbGkNhcuS4oE2As13obMnUebLwOxxWu4ErI8WG1ITwRVEQik72Iqj0d5vvjZw2z5TFzkMB/Tl3qNvAp9jzpNtvRUyrS6KRY667BZOJ9TJK/5+jenGEi7+UNq9ig490WnYDBPA/N9QSPHCx6TLNapayQvem5UCAwEAATANBgkqhkiG9w0BAQsFAAOCAgEAS9mpX4QgnwntvH9wutY+zOWBLejd/psjjVmZdYzeVC6fkCaw0Qj1unszq58EHlA8275ARTYyicRHIYLF3ZDYwMxUCu7iIQJUzVYJRqowV2Ap4OeMlh5sUb/Wlmhs5TauSZ1gz4LqMqnGkVMrvvU+1WX2ePFl81nnr1UMb2+dLzC0Gj2jH3tlzW76yFD4gElR8W4ypgvAw9pFKlSuOc4y6KS32jaOJk9zWSigPQadI1pOSSk+iKuPp98BBY/gDw+FBKUNARo3ci5F2s1dJZwQSCnuBhVb1r+3aHjnp4PAO7Mq7YyFf7qwSmuA++nF7TGhu3lf3hY1Jzgo+rOi+pFZtebCsewLDJjyNUxhQkOIf4TutC9wPJUtCKDpLA0iJso1AX5297iap5g7y0J0fUls16U+F0arsBHhgIN5ARifImeE+1bVVx7kLtklA23njczUt88ylgsCEnYyu0U+0+kwAkMDyPWDd3KPfDhykhQJ0Ev/44+JTDk3zydO2YvCpqMqLuhbZr9mvmV7uzJVbFnLr3sU75upv0N4JQLIn3XyTtDbWjTqA8d6qbG5BxYL5xkrWRxo3Fd6r1AyFje1ilKUkwZ1YZZCDvgv/2uEFyL0VlgfHfBhNbN2nsTTxijKc19ROeIRXl7eqWq/cyIbA/5LzEy2UbbEhKIroPGosQML4sc=")

But as a start, since you have the RAM on ESP32, maybe ignore all the flash storage stuff for now. Just remove fwrite and set the variables directly to the result of running atob.

... also use the certificates that I used in the example rather than making your own - for now.

---

Posted at 2019-09-19 by tcpipchip

I did the changes suggested team!
looks memory problem!

 ____                 _
|  __|___ ___ ___ _ _|_|___ ___
|  __|_ -| . |  _| | | |   | . |
|____|___|  _|_| |___|_|_|_|___|
         |_| espruino.com
 2v04 (c) 2019 G.Williams
Espruino is Open Source. Our work is supported
only by sales of official boards and donations:
http://espruino.com/Donate
>Connecting to Wifi
ERROR: Wifi: event_handler STA_START: esp_wifi_connect: 12298(SSID is invalid)
Connected...
{ "free": 1964, "usage": 336, "total": 2300, "history": 495,
  "gc": 0, "gctime": 1.864 }
{
  "VERSION": "2v04",
  "GIT_COMMIT": "3956264e",
  "BOARD": "ESP32",
  "FLASH": 0, "RAM": 524288,
  "SERIAL": "a4cf1275-31c8",
  "CONSOLE": "Serial1",
  "MODULES": "Flash,Storage,heatshrink,fs,net,dgram,tls,http,NetworkJS,Wifi,TelnetServer,crypto,neopixel",
  "EXPTR": 1073484860 }
WARNING: Wifi:startMDNS - espressif
##############################################
{
  "ip": "192.168.0.16",
  "netmask": "255.255.255.0",
  "gw": "192.168.0.1",
  "mac": "a4:cf:12:75:31:c8"
 }
Acessing AWS IOT
Connecting...
Uncaught InternalError: Failed! mbedtls_ssl_setup: Not enough memory
 at line 35 col 10
  }).end();
         ^
in function called from system
Acessing AWS IOT
Connecting...
Uncaught InternalError: Failed! mbedtls_ssl_setup: Not enough memory
 at line 35 col 10
  }).end();
         ^
in function called from system
Disconnected
>

Here the the software
https://www.dropbox.com/s/3i0cig5pl9qtd7e/code.js?dl=0
