ESP-01s constant bootloop

[gururise]

I've tried flashing a set of 5 ESP-01s (1MB) and every chip results in the same boot-loop:

ets Jan  8 2013,rst cause:4, boot mode:(3,0)

wdt reset
load 0x40100000, len 30720, room 16
tail 0
chksum 0x90
load 0x3ffe8000, len 996, room 8
tail 12
chksum 0x80
ho 0 tail 12 room 4
load 0x3ffe83f0, len 1080, room 12
tail 12
chksum 0xf5
csum 0xf5
�������{��o|��d�p{l�c�����|�;��l�o���g�d���r�l�d����l ���s�l����ll�{l��{d����c��c�|lb���c|����dlc����no�����dn����l�d$�����d`���g�#������b�l�c�rd;l{�o�����߀��#��b�lcd���
MicroPython v1.19.1 on 2022-06-18; ESP module (1M) with ESP8266
Type "help()" for more information.
>>>

The REPL console responds for about 1-2 seconds, but then freezes and about 5 seconds later reboots with the same exact message.

I've flashed using both Thonny and the console (and tried every flash mode possible):
esptool.py --port /dev/ttyUSB0 --baud 115200 write_flash --flash_size=1MB -fm dout 0x0 Downloads/esp8266-1m-20220618-v1.19.1.bin

This bootloop occurs in all 5 of my ESP-01s modules. Am I doing something wrong?

[robert-hh]

It could be a power supply problem. Do you have a good stable 3.3V supply for the devices? The 3.3V output of a USB/UART bridge can typically not supply sufficient current.

[gururise]

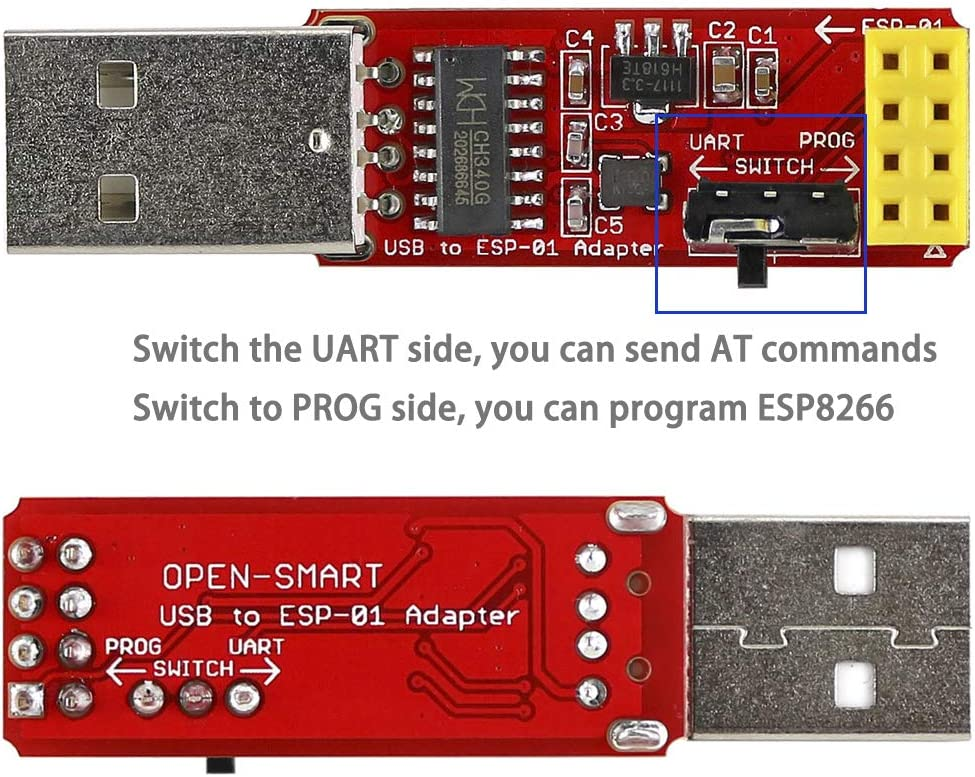

Thanks for the reply. This is initially what I thought too; however, I am using this adapter:

It has a 1117-3.3 regulator rated at 850mA @ 3.3v. Unless its a fake chip, it should have more than enough Pd to power the ESP-01. To rule out power supply issues, I will try with a separate FTDI adapter + 3.3v BENCH power supply and report back.

[davefes]

I have placed a 1000uF low-esr cap on the 3V3 output of my FTDI adapters.

[scruss]

Try clearing the flash first. There was someone on the old forum having an almost identical problem, but I can't find the post. Try using esptool.py - you can see the error messages with that more easily. It can also tell you the detected flash size
