building a CC2500 module only - layout asked

[iz3man]

Hi

I got a Jumper T pro with internal ELRS, and would like to open it and install a CC2500 module only for my remaining Frsky models. I did the reverse with the Jumper T-lite with 4in1 module where I added an interal ELRS. I don't like the backpacks.

So I got all hardware together, from 328p, CC2500 etc. I found one layout where all 4 modules are connected to the Arduino and a know switches between them.

As I only got on module: Is there a specific layout how to connect one single module only? Couldn't find any.

Thanks for you help!

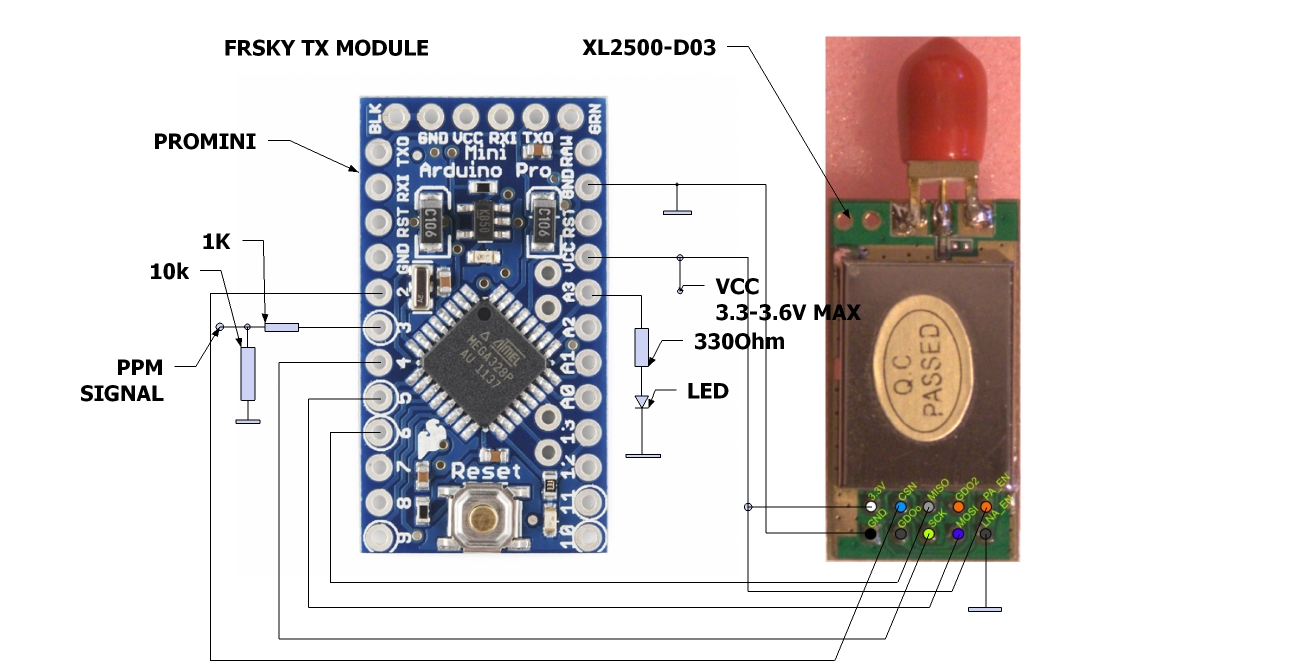

I found this on eastbay-rc, but am not sure if it will work with the multi-module firmware?!

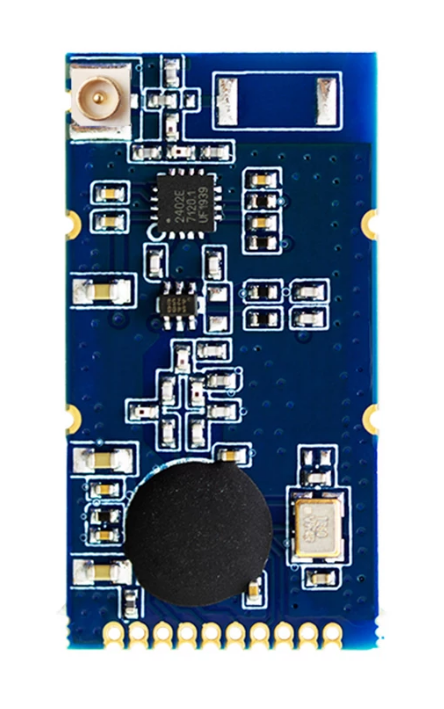

btw: This is the module I want to use:

[pascallanger]

There is nothing special, just connect the CC2500 and ignore the other modules.

[iz3man]

Exactly what I wanted to hear. :) Thank you!

So basically this here?
