Applying UVMAP jpg/png to GLTFJSX model

[Braedencraig]

Trying to emulate this with a different model. Seemingly should be straight forward, but alas.
https://codesandbox.io/embed/gltf-animations-pecl6

Here is my box for where I am stuck.
https://codesandbox.io/embed/eager-carson-vsbeg

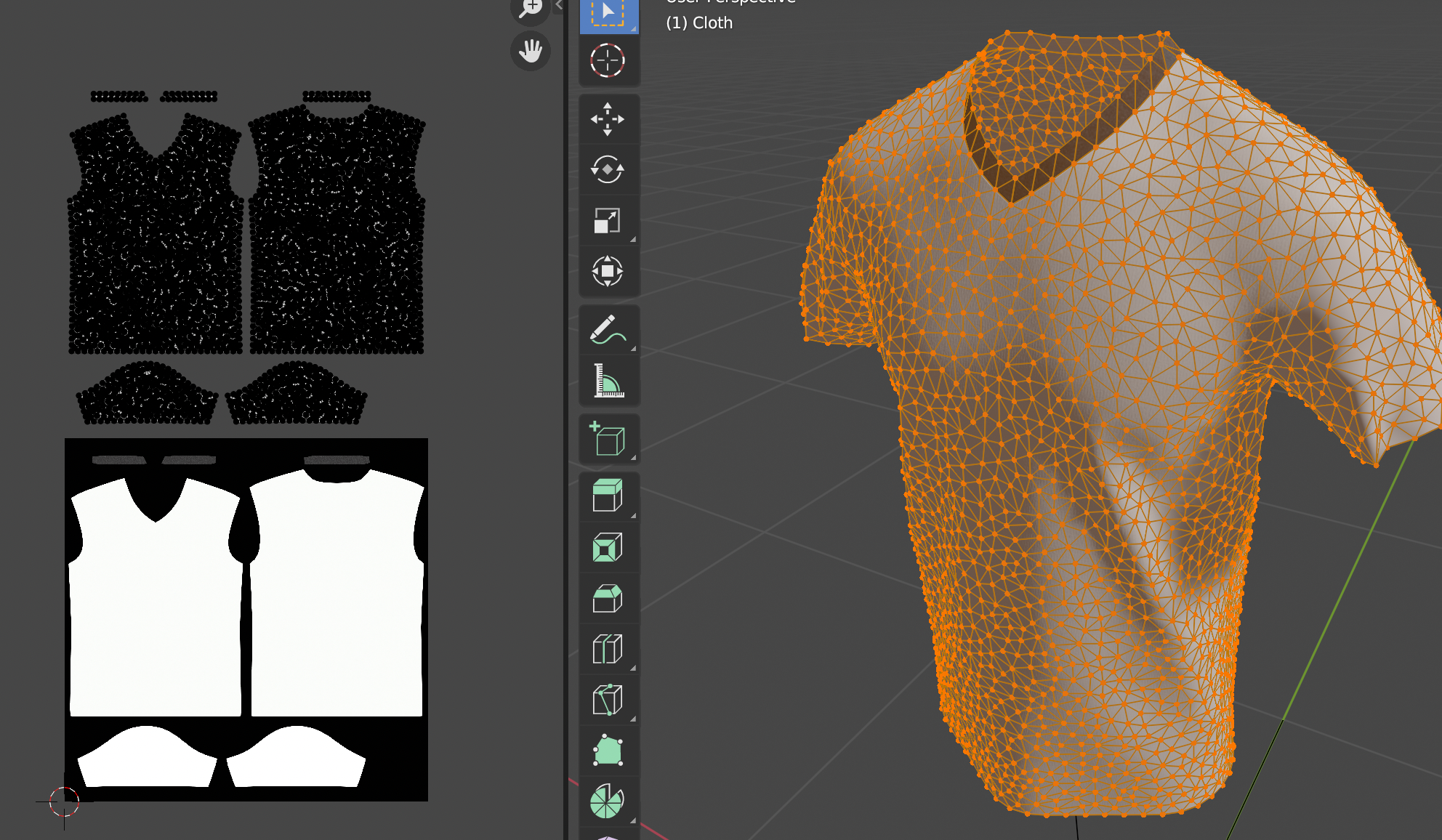

In regards to the model I am using, when I open it in blender, I can see that each material, for each mesh, is the same UV MAP.

So, after converting it to GLTFJSX, I am removing the explicit mesh material={...} created by gltfjsx, and in turn, I am applying my own UV MAP, as a meshStandardMaterial. However, when I try to implement this and apply the texture aka the UV MAP...as an example

<mesh
    castShadow
    receiveShadow
    geometry={nodes.Cloth\_mesh\_1.geometry}
>
    <meshStandardMaterial
        attach="material"
        color="white"
        map={texture}
    />
</mesh>

The portion I am applying map={texture} to just goes black!? Does anyone know why this mesh isn't accepting this UV MAP as a mapped texture on the material?? I feel like I am probably missing something super obvious! Thank you all in advance for the help! Also, I should note, the UV MAP, is white with green squiggles all over it.

[drcmda]

it doesn't look correct to me, uvs and the images don't seem to match at all. and i guess three just takes black as a fallback.

but either way i think you better ask in blender or threejs channels, this place is more react specific, i doubt you'll get an answer as quick.

[drcmda]

and just moving the meshes down in the uv editor fixed it for me, i see textures now

[Braedencraig]

@drcmda Thank you so much for the answer and for looking into it! I'll be sure to use more discretion before just posting here! You've been so helpful so many times! I appreciate it! Sorry again for spamming the discussion with less react specific things! Wont happen again!
