How to compute the capacity loss according to the Loss of active material

[Mrzhang-hub]

I simultaneously considered three side reactions in my model including Loss of Lithium-ion(LLI), SEI growth and Loss of active material(LAM). The pybamm package provide the method to acquire the capacity loss while I could not find the approach how to calculate the capacity loss according to the LAM in the pybamm package.

[valentinsulzer]

How do you define capacity loss due to LAM?

[Mrzhang-hub]

How do you define capacity loss due to LAM?

[Mrzhang-hub]

How do you define capacity loss due to LAM?

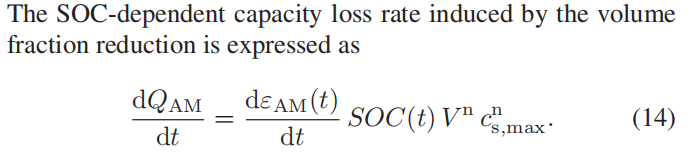

The essay define the capacity loss caused by LAM through this equation. I wanna know why it is defined like this and if pybamm will implement this in the future.

[valentinsulzer]

I don't know how they derived that specific equation, but you can find similar derivations in the appendices of this paper https://iopscience.iop.org/article/10.1149/1945-7111/ac3e48/pdf. My current understanding is that it is not possible to explictly define dQam/dt as a function of deps_am/dt, due to the nonlinearity in the way capacity is calculated. However, we could add the contribution from dCn/dt to dnLi/dt, as in eq [40] of the linked paper

[Mrzhang-hub]

Thank u for your reply. And I have one more question to consult. Is that normal that capacity loss calculated from Lithium plating far outweigh that calculated from SEI growth, with the former 10-5 and the latter 10-9.
