Observing Lithium concentration across positive and negative electrode within a cycle

[mlnsai]

Hi Team,

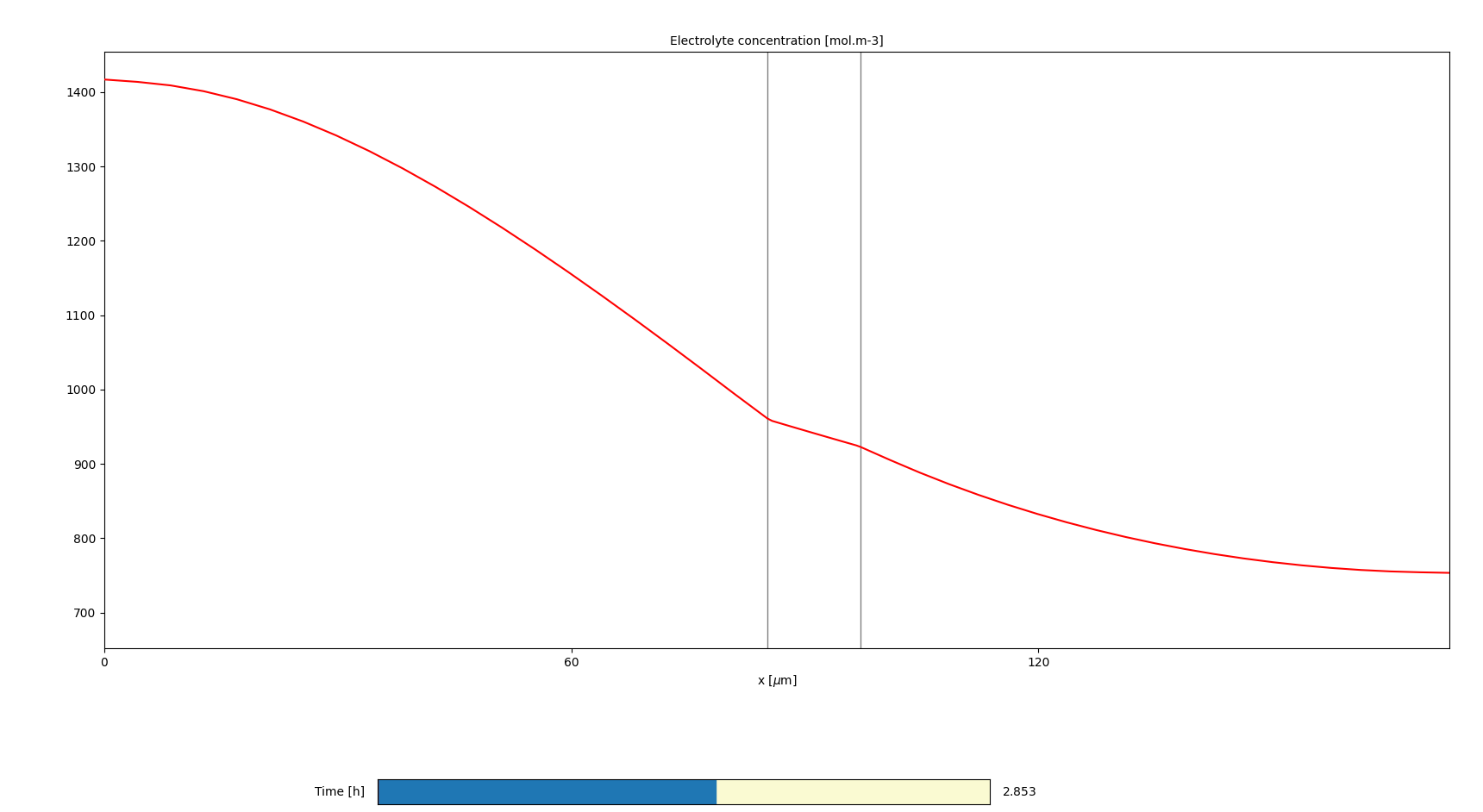

Is there a way to plot change in Lithium concentration across positive and negative electrode within a cycle (charge discharge cycle) like the way "Electrolyte concentration [mol.m-3]" is being observed?

Besides, can you help me understand what exactly positive particle concentration is? Is it same as Lithium concentration in positive electrode?

[brosaplanella]

In this notebook there are more details on how to plot variables. In this case you want Positive particle concentration [mol.m-3], which will give you the concentration as function of x, r and t (so it will be a colourmap plot). If you want the surface concentration as function of x and t you can plot Positive particle surface concentration [mol.m-3].
