How to calculate the mass of the battery?

[tGisbertz]

Hello everyone,

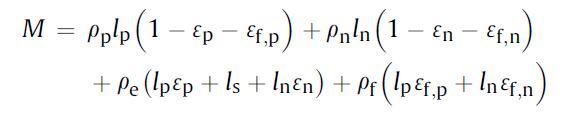

I want to calculate the energy density of the battery for different parameter variations (parameter set OKane2022). For this I obviously need to calculate the battery mass, for which I wanted to do something like that (index f is for bindes):

However there is no electrolyte density (or is there in the parameter set). It seems like a dumb question, but what is the best way to calculate the battery mass in pybamm?

Thanks in advance!

[valentinsulzer]

Interesting question, we don't have any of this kind of analysis in PyBaMM but maybe we should. In the meantime, there are a couple of libraries that you could draw inspiration from for doing it yourself https://github.com/mjlacey/cellmodels, https://github.com/ndrewwang/BotB

Generally I think your approach is correct, you just need to look up values for the missing parameters

[brosaplanella]

If it helps, we collected some parameter values in our article O'Regan et al (2022). It is not open access but the preprint here contains the same info.
