Leaf-to-root message passing over dags, one "level" at a time

[ArchieGertsman]

A little background: job scheduling is in important component of cloud orchestration tools such as Apache Spark, and a good scheduling algorithm can greatly improve a cluster's efficiency. In Spark, jobs are dags of "stages," where each stage is some operation, e.g map or reduce. This 2019 paper proposed a method of learning scheduling algorithms, taking into account the dependencies between the stages unlike many traditional schedulers. They frame job scheduling as an RL problem, and they use GNN's to encode the state of the cluster.

I am re-implementing their codebase, which uses Tensorflow 1.x. Their message passing scheme is unconventional, as far as I can tell: for each dag, they pass messages from its leaves to its root, making computations on only one "level" of the dag at each step. That is, suppose we have the dag $A\to B, A\to C, B\to D, C\to D$. This dag has 3 levels: $(A), (B,C), \text{ and } (D)$. Then their message passing algorithm will take 2 steps (i.e. 2 convolutions): first, messages will be sent from $D$ (leaf) to $B$ and $C$ (with nothing sent to $A$), and second, messages will be sent from $B$ and $C$ to $A$ (root). This way, information from $D$ ends up at $A$. The goal of their architecture is to be able to express the critical path of the dag, among other useful information.

They achieve this message passing one "level" at a time by doing some complicated masking. Once the masks are computed, they are used in this forward pass. They also set a max message passing depth $d$, which I believe truncates the dag to only have $d$ levels (i.e. if the dag has more than $d$ levels, then the model treats the level- $d$ nodes as the leafs, and ignores all of their descendants). I am wondering: is there any straightforward way of using PyG to replicate this kind of message passing? Also, is there any other literature that uses a similar approach?

Best,
Archie

[wsad1]

One way to implement it in pyg is by using the masking approach you described in the paper.

edge_mask_list = ... # edge_mask_list[i] contains the mask for ith message passing step. Edges from level i to level i+1 in the dag.
x = ... # node features
edge_index = ... # all edges in the dag
for mask in edge_mask_list:
    x = forward(x, edge_index[mask])

Further , checkout DAGNN which is a GNN built for DAGs.

[ArchieGertsman]

Thanks to @wsad1, I was able to roughly replicate the original message passing using PyG (particularly subgraph) and NetworkX. To anyone else interested in this kind of message passing, here is a very simple example that calculates the critical path length (weighted by node values) of a dag starting from each node:

import torch
from torch_geometric.nn import MessagePassing
from torch_geometric.utils import subgraph
import networkx as nx
from networkx.drawing.nx_agraph import graphviz_layout


class CriticalPathConv(MessagePassing):
    def __init__(self):
        super().__init__(aggr="max", flow='target_to_source')

    def forward(self, x, edge_index):
        return self.propagate(edge_index, x=x)


conv = CriticalPathConv()

# simple dag structure
edge_index = torch.tensor([
    [0, 0, 1, 2],
    [1, 2, 3, 3]
])

# node weights that will contribute to CP length
x = torch.tensor([1, 3, 0, 2]).unsqueeze(-1)
x_orig = x.clone()

# use nx to obtain node levels
G = nx.DiGraph()
G.add_nodes_from(range(x.shape[0]))
G.add_edges_from(edge_index.T.numpy())
node_levels = list(nx.topological_generations(G))

# iterate through one level of the dag at a time, in reverse order
for l in reversed(range(1, len(node_levels))):
    print(x.squeeze())

    # include edges that touch nodes from this level and the level above
    nodes_include = node_levels[l] + node_levels[l-1]

    # obtain "masked" edge index, which only includes edges that touch the current level and its parents
    level_edge_index = subgraph(nodes_include, edge_index, num_nodes=x.shape[0])[0]

    # forward pass
    x = x + conv(x, level_edge_index)

print(x.squeeze(), '<- node-weighted critical path length from each node')

nx.draw_networkx(
    G,
    node_color=['red'] + 3*['yellow'],
    labels={i: x.item() for i, x in enumerate(x_orig)},
    pos=graphviz_layout(G, prog='dot')
)

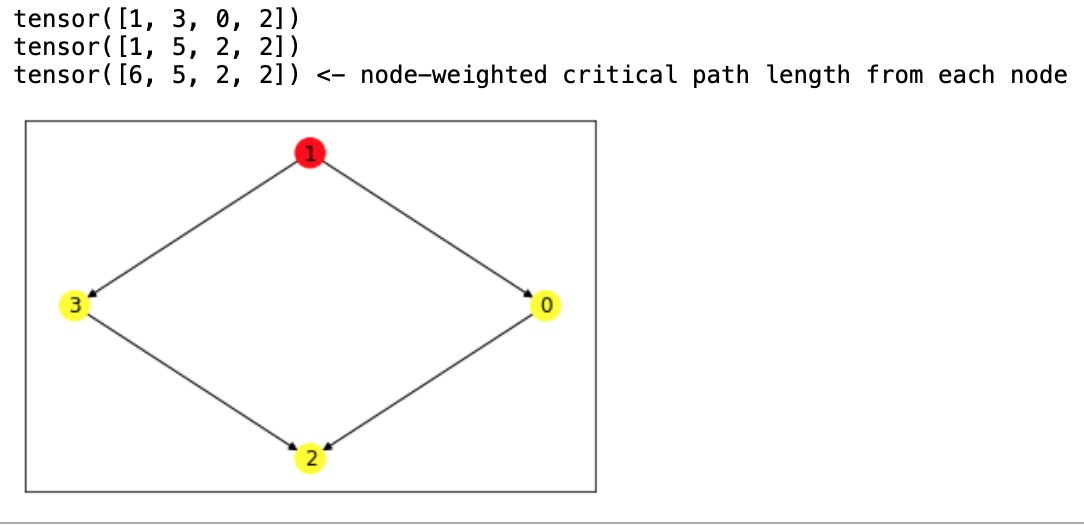

Here is the output:

original dag with root node highlighted in red

A couple notes:

• In practice, a sparse adjacency matrix should be used for each convolution since clearly each level_edge_index is super sparse
• This immediately generalizes to batches of dags; no changes need to be made
