Set space threshold to decide text blocks

[Exorcismus]

is there a way to set when the library decides if the text is within the same text block or not based on some kind of spacing threshold ?

[JorjMcKie]

No, this is decided inside MuPDF code, with no way to influence it.

[dhirajsuvarna]

Hey @JorjMcKie,

I am trying to use the "block" to group the text in the pdf, but somehow, its not working as per the visual intuition.

Can you throw some light on where I can find the how this grouping of text is done into lines and then into blocks? Isn't it based on the distance between two words?

[JorjMcKie]

I think I mentioned above that the logic is contained in MuPDF, and executed when the TextPage object is built.
This is a multiple factor algorithm, taking into account the text position, the text font, font size, inter-line distance, word distance and more things.
There is - and this may be important for your case - no effort to reorder text by its position on page, before this algorithm is invoked. So if the following has a reading sequence "text1 text2 text3 text4 text5" but is added to the page like this

text1 text3 text5
text2 text4

then it will be extracted in that "physical" sequence - although nothing seems to be wrong when looking at the page with a PDF viewer. Correspondingly, MuPDF's algorithm will probably detect 2 lines or even blocks.
You can extend this example even down to every single character!
So it is fair to say, that the block-line-span detection algorithm of MuPDF does work for pages made in a canonical way, but won't for the more orchid cases.
Simpler examples for unexpected results are line distances exceeding the threshold: they will land in different blocks.
Or words contained in different table columns, etc.

[jemc]

Is there any known way in PyMuPDF to split the MuPDF-detected blocks into smaller blocks based on some heuristic?

I have a PDF of a dictionary that uses a 2-column page layout with very little space between columns, such that MuPDF and PyMuPDF are treating them as a single block.

I'd like to have some way to split the block vertically based on a heuristic that can find the column break better than the out-of-the-box MuPDF algorithm seems to be able to. Is there a known way of doing this split in PyMuPDF, to split the block found by MuPDF?

[JorjMcKie]

It all depends on the concrete situation, you may have to try things out and see ...
For example, if you look at the list page.get_text("words") and count the frequency of the x0 values (first item of the tuples in that list), you should see high counts for the left-most and the middle x-coordinate. Here is a snippet:

import fitz
doc=fitz.open("two-columns0.pdf")
page=doc[0]  # a page with 2-column layout
words=page.get_text("words")  # read the words
x_freq = {}  # key: left coord of word, value: how often
for w in words:
    f = x_freq.get(w[0],0) + 1
    x_freq[w[0]] = f

# put dict items in list, sorted by left coord frequency
frequencies = sorted([(k,v) for k,v in x_freq.items()], key=lambda i: i[1], reverse=True)
from pprint import pprint
pprint(frequencies[:10])  # look at the 10 most popular word starts:
[(318.0, 41),  # 41 words start here
 (48.0, 27),  # 27 words start here
 (333.0, 5),
 (337.343994140625, 4),
 (106.01400756835938, 2),
 (71.35200500488281, 2),
 (228.1079559326172, 2),
 (370.0199890136719, 2),
 (463.4039611816406, 2),
 (374.68798828125, 2)]

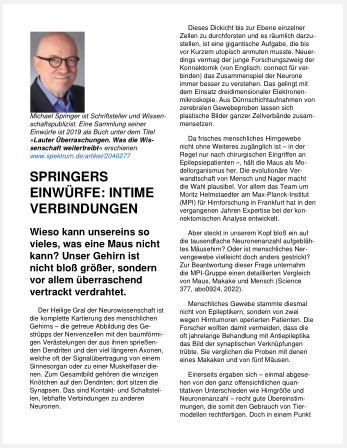

The page looks like this:

[JorjMcKie]

So in this case the data extracted above tell us: (1) we have a 2-column page, (2) we know the left column coordinates.
We can therefore make two sub-rectangles of the page.rect and extract text separately from each of these:

prect = page.rect
lcol = fitz.Rect(48, 0, 318, prect.height)  # rect for the left column
rcol = fitz.Rect(318, 0, prect.width, prect.height)  # rect for the right column
# we are now positioned to extract text column by column:
ltext = page.get_text(clip=lcol, sort=True)  # text in left column, sorted
rtext = page.get_text(clip=rcol, sort=True)  # text in right column, sorted

all_text = ltext + rtext  # combined page text with improved reading sequence

Note that the above clip parameter is supported for all .get_text() variants "text", "words", "blocks", "dict", and "rawdict". So the above approach works in all these cases.

Please also note, that above algorithm can help with analyzing table structures:
(Py-) MuPDF contains no logic to detect the presence or location of tables on a page. This is a very complex task, and we know of no failsafe way to do this. Existing approaches generally involve Artifical Intelligence and / or Machine Learning.
But once a boundary box of a table is known / provided, the above and related techniques are helpful for detecting columns and rows within a table. Combined with extracting text font information and vector graphics extraction, header lines and column and row delimiters can be identified.

[mirix]

In my experience, each time that a PDF is generated by print-to-pdf from HTML each line is detected as a separated block. I have tried with different options. In my opinion, this is not anecdotal, as print-to-pdf is often the most convenient way to save a dynamic web page.

[mirix]

I have added an exception in my PDF processing pipeline:

corpus = []
for pdf in pdfs:
	fpdf = fitz.open(pdf)
	if 'cairo' in fpdf.metadata['producer']:
		inpdf = Popen(['pdftotext', '-fixed', '100', pdf, '-'], stdout=PIPE).communicate()[0]
		doc = [i.replace('\n', ' ').replace('\x0c', '').replace('  ', ' ').strip() for i in inpdf.decode('utf-8').split('\n\n')]
		for paragraph in doc:
			words = sum(map(lambda w : w.isalpha() and len(w) > 2, paragraph.split()))
			if words > 3:
				corpus.append(paragraph)
	else:
		for page in fpdf:
			blocks = page.get_text('blocks')
			for b in blocks:
				paragraph = str(b[4]).replace('\n', ' ').replace('  ', ' ').replace('  ', ' ').strip()
				words = sum(map(lambda w : w.isalpha() and len(w) > 2, paragraph.split()))
				if words > 3:
					corpus.append(paragraph)

So most documents (at least 3/4) are processed with pymupdf in block mode as this typically works best. However, this does not work when the producer is cairo (1/4 of the documents). So in such cases I use pdftotext from xpdf as, amongst the numerous tools I have tried, it is the only one that correctly identifies the paragraphs (and only if the -fixed flag is used).
