I want to delete image by reading its base64 value. I cannot find any suitable sample code. Do you have? [email protected]

[nissansz]

Is your feature request related to a problem? Please describe.
A clear and concise description of what the problem is. Potentially add an issue reference.
I want to delete image by reading its base64 value. I cannot find any suitable sample code. Do you have? [email protected]

Describe the solution you'd like
A clear and concise description of what you want to happen.

Describe alternatives you've considered
Are there several options for how your request could be met?

Additional context
Add any other context or screenshots about the feature request here.

[JorjMcKie]

This is a typical "Discussions" item and does not qualify as an issue.
So I will transfer it and answer from there.

[nissansz]

Ok. Will wait for answer.

[nissansz]

When I try to use remover.py, below errors occurred. Sometimes the code works.
I want to remove the small image under the large image by judging base64 value of the image.
Process finished with exit code -1073741819 (0xC0000005)
59-60.pdf

[nissansz]

After disable this line # page.clean_contents() # unify page's /Contents into one
The code can run, but it removed other images too, below is result, don't know how to solve.

[nissansz]

I tried image-maintenance.py below is error.

Python: 3.8.6 (tags/v3.8.6:db45529, Sep 23 2020, 15:52:53) [MSC v.1927 64 bit (AMD64)]
wxPython: 4.1.1 msw (phoenix) wxWidgets 3.1.5

PyMuPDF 1.20.2: Python bindings for the MuPDF 1.20.3 library.
Version date: 2022-08-13 00:00:01.
Built for Python 3.8 on win32 (64-bit).

Process finished with exit code -1073741819 (0xC0000005)

[JorjMcKie]

Please update your PyMuPDF to the latest v1.21.0.
It fixes a problem which sometimes cause segmentation faults when executing page.clean_contents().
I tried your PDF with the GUI script and it did work.

[nissansz]

I cannot access the new package.
Any place to download for offline install?

[JorjMcKie]

Sorry, it is still a release candidate, so please download like here

[nissansz]

python -m pip install pymupdf==1.21.0rc1 --trusted-host pypi.org pytest-html
This command works. I installed it.

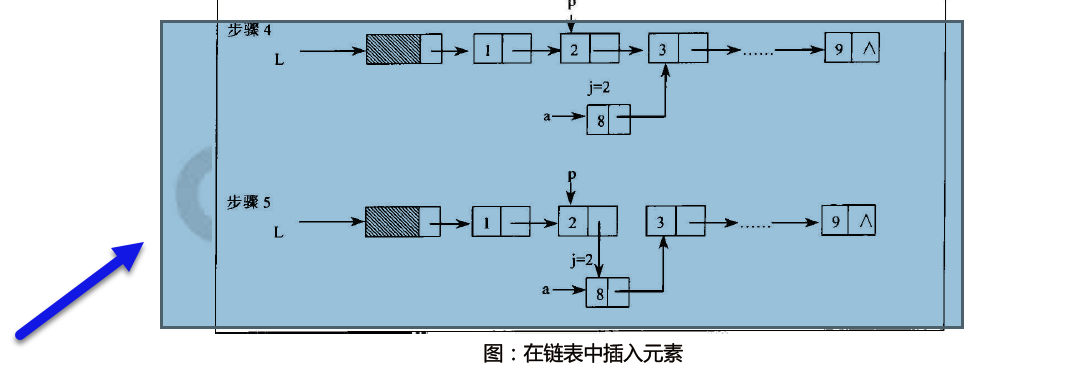

There is a leftover transparent rect in the pdf, cannot remove too?

[JorjMcKie]

which rect do you mean?

[nissansz]

The original image. Which seems removed, but there is a hidden rectangular, as you can see in above image.

[JorjMcKie]

If that is no image and no text, it cannot be removed.

[nissansz]

Also, I want to replace some hidden white text with space, or just remove those white text. Any method or code?

[JorjMcKie]

Use redaction annotations. You need the boundary box of the unwanted text.
Then do:

page.add_redact_annot(bbox)
# maybe add more redact annots
# finally:
page.apply_redactions()

[nissansz]

Is it possible to get html for redact instead of get_text?

for block in page.get_text("dict", flags=fitz.TEXTFLAGS_TEXT)["blocks"]:

[JorjMcKie]

Any method by which you can determine the rectangle of unwanted text is okay.

[JorjMcKie]

(Redaction) annotations as such have no relation to text or other page content.
Annotations are not a part of the page content - compare them like dust on the glass cover of a picture: can be wiped away without changing the picture itself.

[nissansz]

Thank you. I will hold the attempt to redact text.
If there is such demand in future, will try again.
