⚠️ I may have found a way to improve extraction but I need your help ⚠️

[sergenti]

Hey there, I'm working on a PDF parsing project.

PyMuPDF is arguably one of the best libraries to extract text from a PDF, but if there's a table, the output sucks.

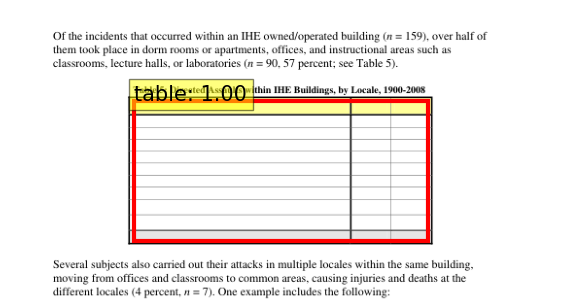

To improve the parsing even more, I'm using an AI model to detect tables and remove them from the page.

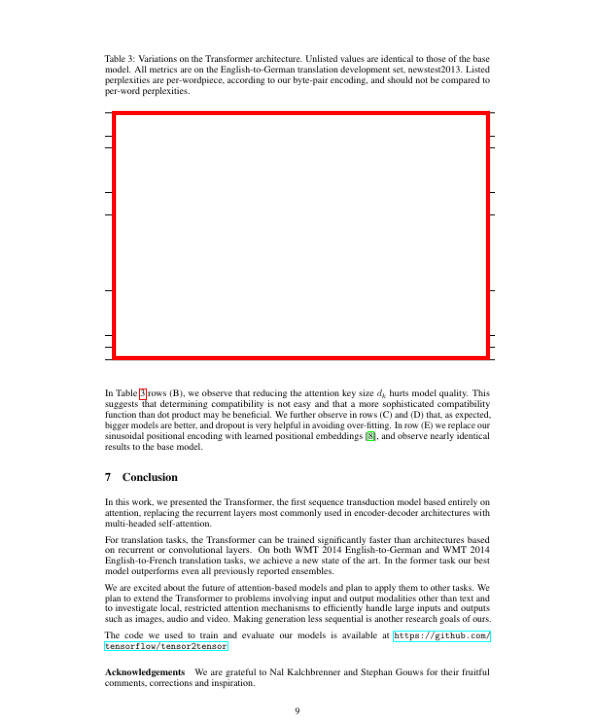

🙋‍♂️ approach: draw a white rectangle over every table
🤔 problem: PyMuPDF still extracts the characters under the white rectangle
🧐 question: is there a way to delete all the elements under a certain rectangle or something similar?

  # open pdf
  with fitz.open(input_file) as pdf:

      # Loop over each page in the PDF
      for page in pdf:

          # convert page into image
          pix = page.get_pixmap(dpi=DPI)
          image = Image.frombytes("RGB", [pix.width, pix.height], pix.samples)

          # find the coordinates of all the tables
          boxes = get_coordinates(image, THRESH, model)

          # Draw a white-filled rectangle on every table
          page = clean_page(page, boxes, DPI)

          # Extract text from the edited page
          TEXT += page.get_text()


TLDR; Table parsing is terrible. Can we ignore all tables in Page.get_text()?

[JorjMcKie]

This is no issue, but a "Discussions" item. So I will first transfer it.

[JorjMcKie]

If a table's bbox is known and if the cells delimitred by borders, there exists a script which extracts and outputs to CSV.

Your other question about reoving table content:
This is possible using redaction annotations. You can remove text, links and images inside a rectangular area. Line art (drawings cannot be redacted however).
So your red rectangle above can be emptied from all text.

[sergenti]

Hi Jorj, sorry for putting this as an issue; this is my first time contributing to a library, and I wasn't sure where to write it.

Sounds awesome! Could you show me how to use the "redaction annotations" in PyMuPDF? Is there an example in the docs?

[sergenti]

found it

def clean_page(page, boxes, DPI):

    # check if there are tables in the page
    if len(boxes) != 0:

        # loop through every box
        for box in boxes:

            # convert to pdf coordinates
            box = [x * 72/DPI for x in box]

            # add a redaction annotation
            page.add_redact_annot(box)

    # remove redacted areas
    page.apply_redactions()
    return page

does not delete the lines but improves the parsing anyway :)

[JorjMcKie]

Absolutely right - felicitaciones.
Removal of line art is not supported (yet) as part of redactions.

[JorjMcKie]

Hi Jorj, sorry for putting this as an issue; this is my first time contributing to a library, and I wasn't sure where to write it.

No worries - that's fine. It indeed is not always clear, whether something is a bug, an enhancement, or just a feature yet unknown to someone new to PyMuPDF.
