How to center caption with image (Revealjs slides)

[eteitelbaum]

I am trying to figure out how to center figure captions under a centered image in Revealjs (although I suppose this would apply to any .html document). Here is my code:

## Growth Under Dictatorships

![Mobutu Sese Seko](images/mobutu.jpg){fig-align="center" width="30%"}

-   How do we explain variation in growth rates under repressive
    regimes?
-   What are the differences between the DRC and other dictatorships
    (e.g. USSR, China)?

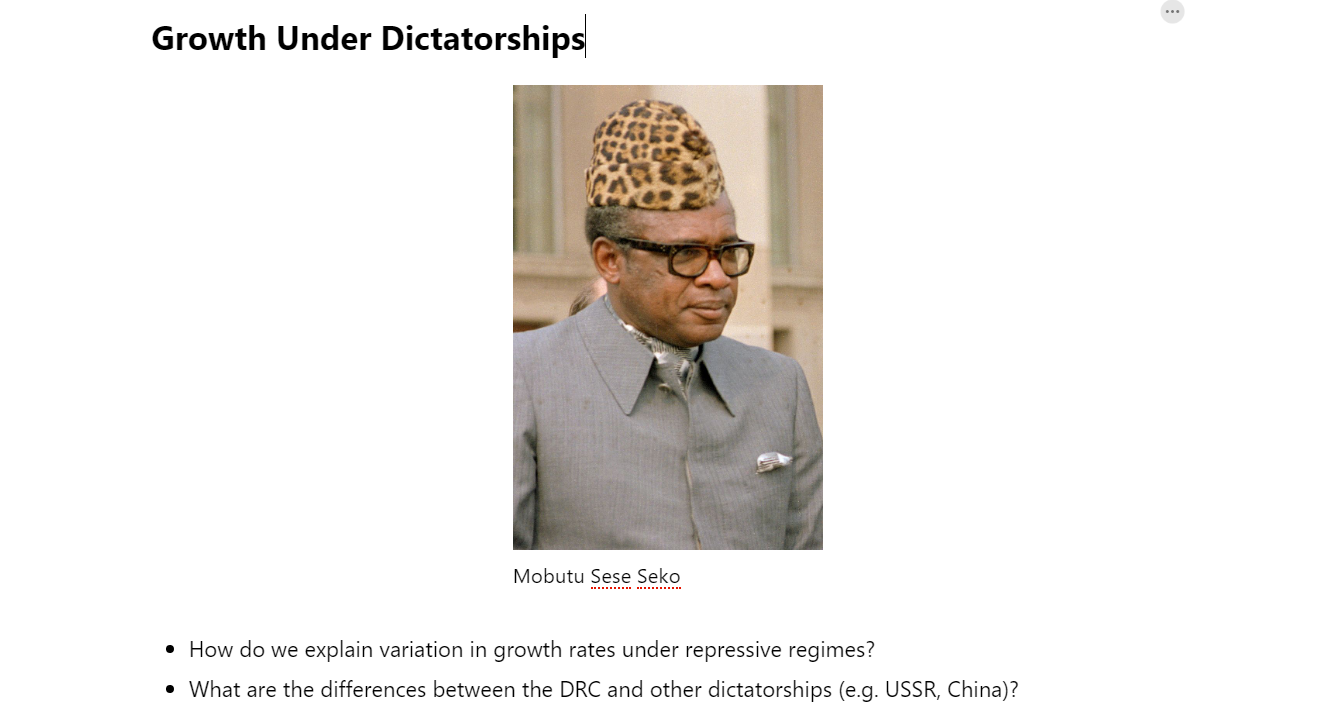

When I view it in the visual editor, it looks like this:

And it when I have rendered this with R Markdown in the past as a Beamer slide, the caption has also been centered along with the image.

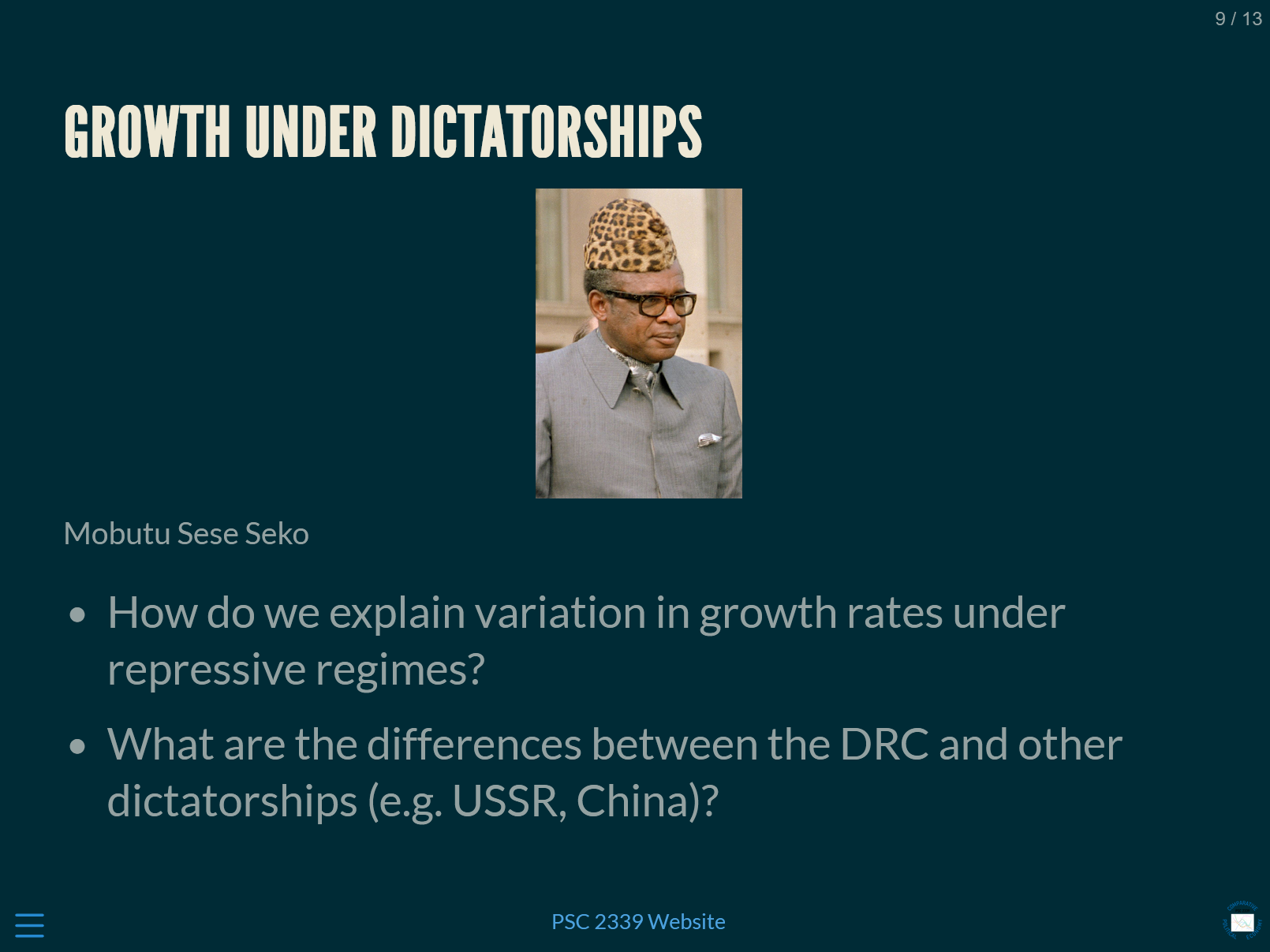

But when I render it as Revealjs the caption gets left awkwardly to side of the image:

Is there a way to fix it so that the caption gets centered along with the image?

[mcanouil]

You need to provide with a full minimal and reproducible example, especially since you seem to use a template for Reveal.js.

Why are you using fig-align="center" since this is the default for captioned figures? See https://quarto.org/docs/authoring/figures.html#figure-alignment.
This could be the reason of you output and possibly a bug when default is used explicitly.

This discussion is related to previous discussions/issues, such as #233, #799, and #1477.

Edit: also related to #949

[eteitelbaum]

@mcanouil Thanks for linking to those issues. Based on those discussions, it seems like this behavior is not a bug but rather that figure captions are left-justified by design. Further, it seems that captioned figures are centered by default but uncaptioned figures are left justified.

As you can see, it looks pretty ridiculous when you have a smaller figure and a left-justified caption. I suppose I will have to find some workaround like not using a caption or using a title instead.

[mcanouil]

You can embed the whole thing in a div cell:

See the code.

---
title: "Untitled"
format: revealjs
---

## Title

::: {style="text-align:center;"}
![Some image alt text](https://quarto.org/quarto.png)
:::

[mcanouil]

@eteitelbaum I opened an issue, because there is something a bit fishy now with captioned figures, even for html format (see #2306).
In fact, it's more a documentation issue, i.e., old images showing obsolete behaviour.

[sorenwacker]

Would be nice to have a feature shortcut ~[My caption](image.png){align=center} or something along this lines.
