ERROR: No inspectable targets with mermaid graphics

[tomkom]

am trying to render to PDF with some mermaid graphics. I think this triggers Quarto to return ERROR: No inspectable targets with mermaid graphics

How can I avoid this? I tried to add to my pdf

format:
  pdf:
    prefer-html: false
    documentclass: scrreprt
    toc: true
    toc-depth: 3
    logo: "cover.png"
    mermaid-format: png

but to no avail. I am on quarto 1.2.335, on Mac. I tried installing the quarto tools chromium, but that kept crashing...

Any hints? Thanks!

[cscheid]

Can you share a complete example?

[tomkom]

Here it is - created from scratch:

• created a new quarto project:

% quarto create-project testproject

I altered the auto-generated testproject.qmd file into index.qmd ( needed for a book), attached (please, change extension to qmd, not allowed extension type here):

index.txt

Then, I altered the _quarto.yml :

project:
  type: book
  output-dir: docs

book:
  title: "test"
  author: "Martin"
  date: today
  output-file: "book"
  #output-ext: "pdf"

  chapters:
    - index.qmd

format:
  html:
    theme: cosmo
    toc: true
    toc-depth: 3
    navbar:
      search: true
    cookie-consent: false
  pdf:
    prefer-html: false
    documentclass: scrreprt
    mermaid-format: png

also attached (as txt, please rename to yml):

_quarto.txt

So we have a folder with two files, the qmd, and the yml.

Terminal output for quarto render:

%quarto render

pandoc
  to: html
  output-file: index.html
  standalone: true
  toc: true
  number-sections: true
  title-prefix: test
  section-divs: true
  html-math-method: mathjax
  wrap: none
  default-image-extension: png
  toc-depth: 3

metadata
  crossref:
    chapters: true
  document-css: false
  link-citations: true
  date-format: long
  lang: en
  theme: cosmo
  navbar:
    search: true
  cookie-consent: false
  title: test
  author: Martin
  date: '2023-02-22T00:00:00+11:00'

ERROR: No inspectable targets

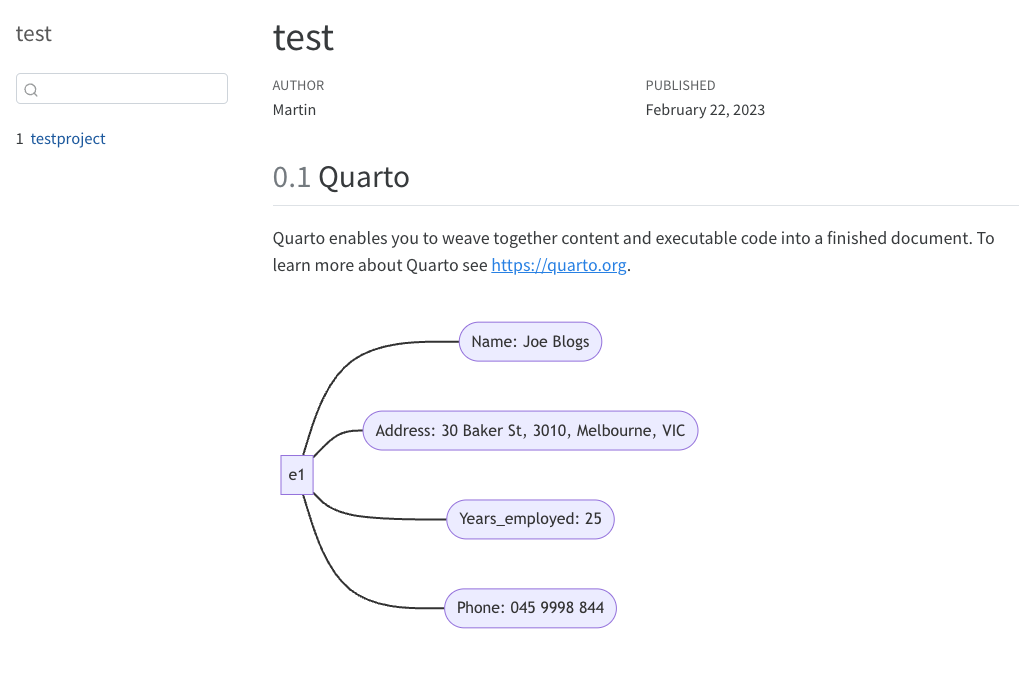

quarto preview works fine:

[tomkom]

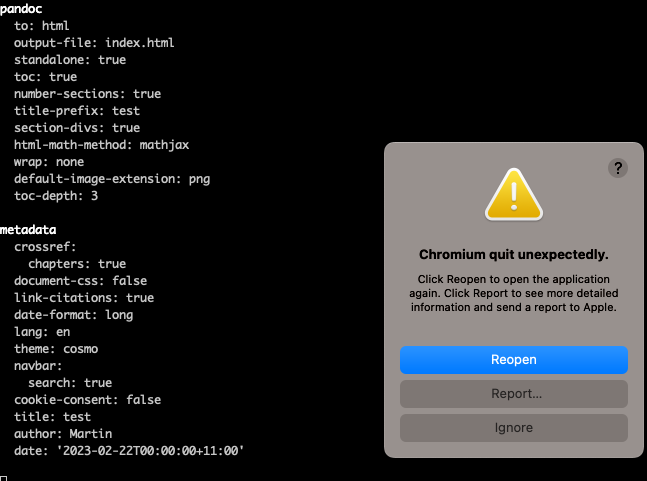

I should add that if I run the same quarto render after I installed chromium (using quarto tools intall chromium) I get this:

This is all on Mac M1, Ventura 13.2. I do have a chromium based browser install as standard ( Brave, using homebrew), so should not need this tool installed, but anyway.

[cscheid]

If you get the .tar.gz file from our releases page, then extracting that to a separate directory should work (the quarto executable itself is bin/quarto).

[tomkom]

I get this: ERROR: Internal error: temporarily disabled until deno 1.28.* gets puppeteer support (base) tomkom@4320L-208869-M testproject %

[tomkom]

output with --verbose

[INFO] Loaded /var/folders/t6/g5fz42cj7jgb1vfynr0_4hs80000gn/T/quarto-session96b625ce/dddc31ff/9b7c90c6/metadata.html from /var/folders/t6/g5fz42cj7jgb1vfynr0_4hs80000gn/T/quarto-session96b625ce/dddc31ff/9b7c90c6/metadata.html
[INFO] Loaded /var/folders/t6/g5fz42cj7jgb1vfynr0_4hs80000gn/T/quarto-session96b625ce/dddc31ff/9b7c90c6/title-block.html from /var/folders/t6/g5fz42cj7jgb1vfynr0_4hs80000gn/T/quarto-session96b625ce/dddc31ff/9b7c90c6/title-block.html
[INFO] Loaded /var/folders/t6/g5fz42cj7jgb1vfynr0_4hs80000gn/T/quarto-session96b625ce/dddc31ff/9b7c90c6/title-metadata.html from /var/folders/t6/g5fz42cj7jgb1vfynr0_4hs80000gn/T/quarto-session96b625ce/dddc31ff/9b7c90c6/title-metadata.html
[INFO] Loaded /var/folders/t6/g5fz42cj7jgb1vfynr0_4hs80000gn/T/quarto-session96b625ce/dddc31ff/9b7c90c6/toc.html from /var/folders/t6/g5fz42cj7jgb1vfynr0_4hs80000gn/T/quarto-session96b625ce/dddc31ff/9b7c90c6/toc.html
[INFO] Running filter /Applications/quarto/share/filters/main.lua
[INFO] Completed filter /Applications/quarto/share/filters/main.lua in 58 ms

[cscheid]

I apologize, I missed the fact that you're trying to render to a PDF and not HTML. Yes, unfortunately this is currently disabled on the pre-release version. I hope we can get it fixed in the next 5-6 weeks ahead of the 1.3 release.

I do have a chromium based browser install as standard ( Brave, using homebrew), so should not need this tool installed, but anyway.

Unfortunately we need a precise version of Chromium because of the remote interface APIs. With that said, this is on our radar, and we will try to fix it soon.

[tomkom]

OK, great. Will keep following this to see if the render to PDF is possible. One alternative 9 undesirable) would be to have a mechanism to show a related alt image/png. I am thinking this would be useful also for multimedia (I have some mov files, that break the render and I am not sure how to do this - a screen shot of the first frame would be ideal). Anyway, this is a separate discussion.

[tomkom]

This persists with 1.2.335 nightly build and chromium installed. ERROR: No inspectable targets

[tomkom]

I am confused. I see 1.2.335 as latest, from 1 feb...

…

On Fri, 10 Mar 2023, 10:35 am Carlos Scheidegger, ***@***.***> wrote: This persists with 1.2.335 nightly build and chromium installed. ERROR: No inspectable targets Sorry, I want to make sure I understand "1.2.335 nightly build" correctly: 1.2.335 is not our prerelease ("nightly") build. Our prerelease build is always at the top of https://github.com/quarto-dev/quarto-cli/releases and is currently 1.3.253. Can you confirm you've tried that one? — Reply to this email directly, view it on GitHub <#4441 (comment)>, or unsubscribe <https://github.com/notifications/unsubscribe-auth/AALLGHUY2WXMKIIKLMKSMITW3JSKXANCNFSM6AAAAAAVCWSCVA> . You are receiving this because you authored the thread.Message ID: ***@***.***>

[tomkom]

OK, I downgraded to the 1.2.253 release from the most recent 1.2.335, and that seems to enable the compilation including mermaid successfully!
I still get a chromium crash, but somehow the process continues, and completes ok.

[cderv]

@tomkom I believe this error has been reported in this issue #4653 and should now be fixed in vv1.3.253 or higher.

[cderv]

I believe this error has been reported in this issue #4653 and should now be fixed in vv1.3.253 or higher.
