Correct Connection? #7
deepbluemind74
started this conversation in
General
Replies: 1 comment 4 replies
-
|
In the default settings, yes. |
Beta Was this translation helpful? Give feedback.
4 replies
-
|
So no need for resitors? |
Beta Was this translation helpful? Give feedback.
-
|

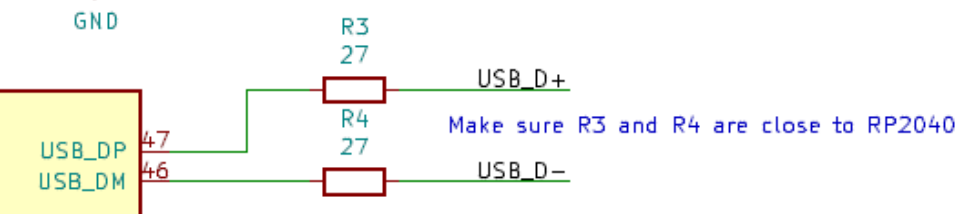

Around 27ohm is recommended but not necessary |
Beta Was this translation helpful? Give feedback.
-
|
Where do I put this? |
Beta Was this translation helpful? Give feedback.
-
|
Like this https://datasheets.raspberrypi.com/rp2040/hardware-design-with-rp2040.pdf |
Beta Was this translation helpful? Give feedback.
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
Uh oh!
There was an error while loading. Please reload this page.
-

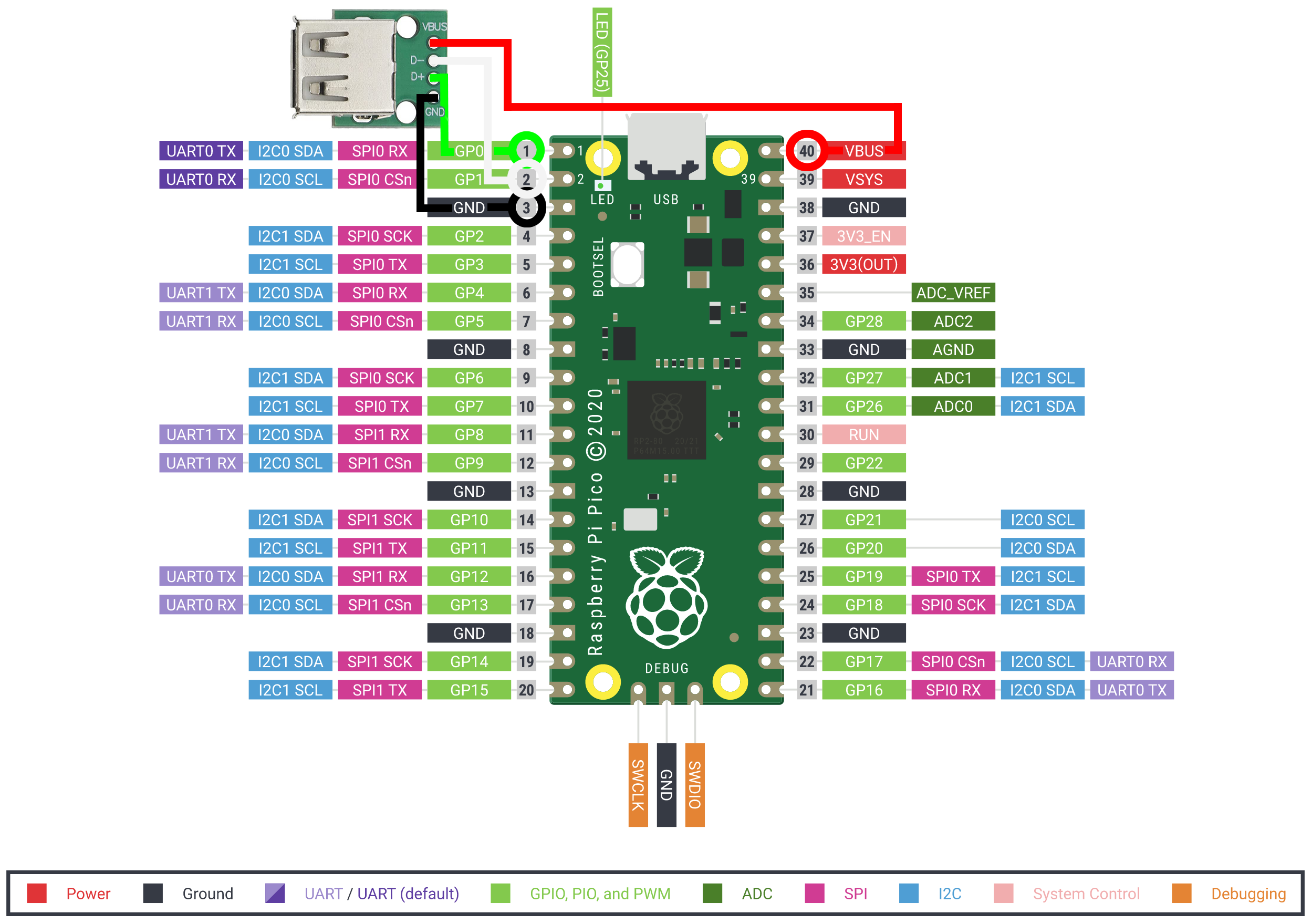

According to the description - would that be the correct connection?
Beta Was this translation helpful? Give feedback.
All reactions
