Adding a custom icon set, not all displaying

[bkrisler]

Hello,

I am trying to add in a custom icon set (https://github.com/bpmn-io/bpmn-font) and not all are displaying. Is there a way to view debug logs, etc. to try and figure out why?

For example:

This displays just fine:
:bpmn-tools-hand-tool:
(.icons/bpmn/tools/hand-tool.svg)

But this is empty:
:bpmn-task:
(.icons/bpmn/task.svg)

Same for this:
:bpmn-connection-multi:
(.icons/bpmn/connection-multi.svg)

It appears to be hit or miss on which icons will display or not. Any suggestions on how to figure this out?

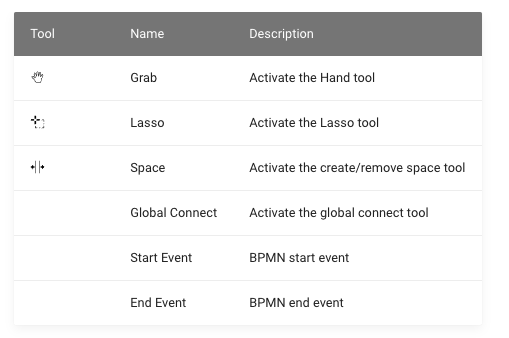

More info. I have:

| Tool                    | Name           | Description |
| ----------------------- | -------------- | ----------------------- |
| :bpmn-tools-hand-tool:  | Grab           | Activate the Hand tool  |
| :bpmn-tools-lasso-tool: | Lasso          | Activate the Lasso tool |
| :bpmn-tools-space-tool: | Space          | Activate the create/remove space tool |
| :bpmn-connection-multi: | Global Connect | Activate the global connect tool |
| :bpmn-events-start-event-none: | Start Event | BPMN start event |
| :bpmn-events-end-event-none: | End Event | BPMN end event |

Thanks

[bkrisler]

Found the issue. The images that were not displaying were all missing a viewBox attribute on the svg element. Hand added that and it worked.

[squidfunk]

Good to know, thanks for answering your own question! The images were likely shown, but due to the missing viewbox attribute they were cropped to their tiny upper left corners. I will add a small note to the docs to lookout for the viewbox attribute.
