There are no metrics for Kafka and Zookeeper in Prometheus.

[emy-lee]

I am trying to deploy Strimzi and Prometheus Operator but I can't see kafka metrics and zookeeper metrics in Prometheus.
Why?

- How I have deployed strimzi and prometheus:

kubectl create namespace strimzi
kubectl create namespace monitoring

helm repo add strimzi https://strimzi.io/charts/
helm repo update
helm install strimzi strimzi/strimzi-kafka-operator -n strimzi

kubectl apply -f kafka-metrics.yaml -n strimzi

helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
helm repo update
helm install prometheus prometheus-community/kube-prometheus-stack -n monitoring

kubectl apply -f strimzi-pod-monitor.yaml -n monitoring

kubectl port-forward prometheus-prometheus-kube-prometheus-prometheus-0 9090:9090 -n monitoring

( in the strimzi-pod-monitor.yaml file I have only changed the namespace that is "monitoring" in my case )

- Info:

$kubectl get pods -n monitoring
NAMESPACE     NAME                                                        READY   STATUS    RESTARTS   AGE
monitoring    alertmanager-prometheus-kube-prometheus-alertmanager-0      2/2     Running   0          117m
monitoring    prometheus-grafana-7b764c9d78-gwf7n                         2/2     Running   0          117m
monitoring    prometheus-kube-prometheus-operator-5bf4c6d69f-pwnn4        1/1     Running   0          117m
monitoring    prometheus-kube-state-metrics-5b8f9bdbbd-ptjs6              1/1     Running   0          117m
monitoring    prometheus-prometheus-kube-prometheus-prometheus-0          2/2     Running   1          117m
monitoring    prometheus-prometheus-node-exporter-4wxjl                   1/1     Running   0          117m
monitoring    prometheus-prometheus-node-exporter-5trrr                   1/1     Running   0          117m
monitoring    prometheus-prometheus-node-exporter-sk424                   1/1     Running   0          117m

$kubectl get pods -n strimzi
NAMESPACE     NAME                                                        READY   STATUS    RESTARTS   AGE
strimzi       my-cluster-entity-operator-cd785c688-sxhlm                  3/3     Running   0          103m
strimzi       my-cluster-kafka-0                                          1/1     Running   0          103m
strimzi       my-cluster-kafka-1                                          1/1     Running   0          103m
strimzi       my-cluster-kafka-2                                          1/1     Running   0          103m
strimzi       my-cluster-kafka-exporter-8599689778-2zjsm                  1/1     Running   0          102m
strimzi       my-cluster-zookeeper-0                                      1/1     Running   0          104m
strimzi       my-cluster-zookeeper-1                                      1/1     Running   0          104m
strimzi       my-cluster-zookeeper-2                                      1/1     Running   0          104m
strimzi       strimzi-cluster-operator-cbb97bb58-phgqq                    1/1     Running   0          107m

$ kubectl get podmonitors -n monitoring
NAME                       AGE
bridge-metrics             12m
cluster-operator-metrics   12m
entity-operator-metrics    12m
kafka-resources-metrics    11m

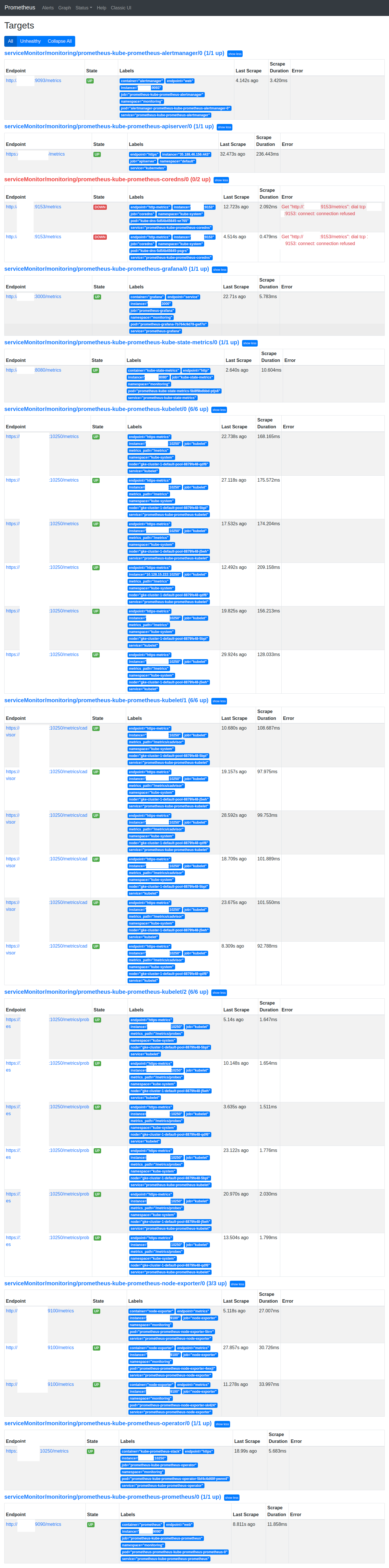

- Prometheus Configuration:

global:
  scrape_interval: 30s
  scrape_timeout: 10s
  evaluation_interval: 30s
  external_labels:
    prometheus: monitoring/prometheus-kube-prometheus-prometheus
    prometheus_replica: prometheus-prometheus-kube-prometheus-prometheus-0
alerting:
  alert_relabel_configs:
  - separator: ;
    regex: prometheus_replica
    replacement: $1
    action: labeldrop
  alertmanagers:
  - follow_redirects: true
    scheme: http
    path_prefix: /
    timeout: 10s
    api_version: v2
    relabel_configs:
    - source_labels: [__meta_kubernetes_service_name]
      separator: ;
      regex: prometheus-kube-prometheus-alertmanager
      replacement: $1
      action: keep
    - source_labels: [__meta_kubernetes_endpoint_port_name]
      separator: ;
      regex: web
      replacement: $1
      action: keep
    kubernetes_sd_configs:
    - role: endpoints
      follow_redirects: true
      namespaces:
        names:
        - monitoring
rule_files:
- /etc/prometheus/rules/prometheus-prometheus-kube-prometheus-prometheus-rulefiles-0/*.yaml
scrape_configs:
- job_name: serviceMonitor/monitoring/prometheus-kube-prometheus-alertmanager/0
  honor_timestamps: true
  scrape_interval: 30s
  scrape_timeout: 10s
  metrics_path: /metrics
  scheme: http
  follow_redirects: true
  relabel_configs:
  - source_labels: [job]
    separator: ;
    regex: (.*)
    target_label: __tmp_prometheus_job_name
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_label_app]
    separator: ;
    regex: kube-prometheus-stack-alertmanager
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_service_label_release]
    separator: ;
    regex: prometheus
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_service_label_self_monitor]
    separator: ;
    regex: "true"
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_port_name]
    separator: ;
    regex: web
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Node;(.*)
    target_label: node
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Pod;(.*)
    target_label: pod
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_namespace]
    separator: ;
    regex: (.*)
    target_label: namespace
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: service
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_name]
    separator: ;
    regex: (.*)
    target_label: pod
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_container_name]
    separator: ;
    regex: (.*)
    target_label: container
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: job
    replacement: ${1}
    action: replace
  - separator: ;
    regex: (.*)
    target_label: endpoint
    replacement: web
    action: replace
  - source_labels: [__address__]
    separator: ;
    regex: (.*)
    modulus: 1
    target_label: __tmp_hash
    replacement: $1
    action: hashmod
  - source_labels: [__tmp_hash]
    separator: ;
    regex: "0"
    replacement: $1
    action: keep
  kubernetes_sd_configs:
  - role: endpoints
    follow_redirects: true
    namespaces:
      names:
      - monitoring
- job_name: serviceMonitor/monitoring/prometheus-kube-prometheus-apiserver/0
  honor_timestamps: true
  scrape_interval: 30s
  scrape_timeout: 10s
  metrics_path: /metrics
  scheme: https
  authorization:
    type: Bearer
    credentials_file: /var/run/secrets/kubernetes.io/serviceaccount/token
  tls_config:
    ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
    server_name: kubernetes
    insecure_skip_verify: false
  follow_redirects: true
  relabel_configs:
  - source_labels: [job]
    separator: ;
    regex: (.*)
    target_label: __tmp_prometheus_job_name
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_label_component]
    separator: ;
    regex: apiserver
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_service_label_provider]
    separator: ;
    regex: kubernetes
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_port_name]
    separator: ;
    regex: https
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Node;(.*)
    target_label: node
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Pod;(.*)
    target_label: pod
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_namespace]
    separator: ;
    regex: (.*)
    target_label: namespace
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: service
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_name]
    separator: ;
    regex: (.*)
    target_label: pod
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_container_name]
    separator: ;
    regex: (.*)
    target_label: container
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: job
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_service_label_component]
    separator: ;
    regex: (.+)
    target_label: job
    replacement: ${1}
    action: replace
  - separator: ;
    regex: (.*)
    target_label: endpoint
    replacement: https
    action: replace
  - source_labels: [__address__]
    separator: ;
    regex: (.*)
    modulus: 1
    target_label: __tmp_hash
    replacement: $1
    action: hashmod
  - source_labels: [__tmp_hash]
    separator: ;
    regex: "0"
    replacement: $1
    action: keep
  kubernetes_sd_configs:
  - role: endpoints
    follow_redirects: true
    namespaces:
      names:
      - default
- job_name: serviceMonitor/monitoring/prometheus-kube-prometheus-coredns/0
  honor_timestamps: true
  scrape_interval: 30s
  scrape_timeout: 10s
  metrics_path: /metrics
  scheme: http
  authorization:
    type: Bearer
    credentials_file: /var/run/secrets/kubernetes.io/serviceaccount/token
  follow_redirects: true
  relabel_configs:
  - source_labels: [job]
    separator: ;
    regex: (.*)
    target_label: __tmp_prometheus_job_name
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_label_app]
    separator: ;
    regex: kube-prometheus-stack-coredns
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_service_label_release]
    separator: ;
    regex: prometheus
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_port_name]
    separator: ;
    regex: http-metrics
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Node;(.*)
    target_label: node
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Pod;(.*)
    target_label: pod
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_namespace]
    separator: ;
    regex: (.*)
    target_label: namespace
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: service
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_name]
    separator: ;
    regex: (.*)
    target_label: pod
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_container_name]
    separator: ;
    regex: (.*)
    target_label: container
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: job
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_service_label_jobLabel]
    separator: ;
    regex: (.+)
    target_label: job
    replacement: ${1}
    action: replace
  - separator: ;
    regex: (.*)
    target_label: endpoint
    replacement: http-metrics
    action: replace
  - source_labels: [__address__]
    separator: ;
    regex: (.*)
    modulus: 1
    target_label: __tmp_hash
    replacement: $1
    action: hashmod
  - source_labels: [__tmp_hash]
    separator: ;
    regex: "0"
    replacement: $1
    action: keep
  kubernetes_sd_configs:
  - role: endpoints
    follow_redirects: true
    namespaces:
      names:
      - kube-system
- job_name: serviceMonitor/monitoring/prometheus-kube-prometheus-grafana/0
  honor_timestamps: true
  scrape_interval: 30s
  scrape_timeout: 10s
  metrics_path: /metrics
  scheme: http
  follow_redirects: true
  relabel_configs:
  - source_labels: [job]
    separator: ;
    regex: (.*)
    target_label: __tmp_prometheus_job_name
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_instance]
    separator: ;
    regex: prometheus
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_name]
    separator: ;
    regex: grafana
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_port_name]
    separator: ;
    regex: service
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Node;(.*)
    target_label: node
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Pod;(.*)
    target_label: pod
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_namespace]
    separator: ;
    regex: (.*)
    target_label: namespace
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: service
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_name]
    separator: ;
    regex: (.*)
    target_label: pod
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_container_name]
    separator: ;
    regex: (.*)
    target_label: container
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: job
    replacement: ${1}
    action: replace
  - separator: ;
    regex: (.*)
    target_label: endpoint
    replacement: service
    action: replace
  - source_labels: [__address__]
    separator: ;
    regex: (.*)
    modulus: 1
    target_label: __tmp_hash
    replacement: $1
    action: hashmod
  - source_labels: [__tmp_hash]
    separator: ;
    regex: "0"
    replacement: $1
    action: keep
  kubernetes_sd_configs:
  - role: endpoints
    follow_redirects: true
    namespaces:
      names:
      - monitoring
- job_name: serviceMonitor/monitoring/prometheus-kube-prometheus-kube-controller-manager/0
  honor_timestamps: true
  scrape_interval: 30s
  scrape_timeout: 10s
  metrics_path: /metrics
  scheme: http
  authorization:
    type: Bearer
    credentials_file: /var/run/secrets/kubernetes.io/serviceaccount/token
  follow_redirects: true
  relabel_configs:
  - source_labels: [job]
    separator: ;
    regex: (.*)
    target_label: __tmp_prometheus_job_name
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_label_app]
    separator: ;
    regex: kube-prometheus-stack-kube-controller-manager
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_service_label_release]
    separator: ;
    regex: prometheus
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_port_name]
    separator: ;
    regex: http-metrics
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Node;(.*)
    target_label: node
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Pod;(.*)
    target_label: pod
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_namespace]
    separator: ;
    regex: (.*)
    target_label: namespace
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: service
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_name]
    separator: ;
    regex: (.*)
    target_label: pod
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_container_name]
    separator: ;
    regex: (.*)
    target_label: container
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: job
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_service_label_jobLabel]
    separator: ;
    regex: (.+)
    target_label: job
    replacement: ${1}
    action: replace
  - separator: ;
    regex: (.*)
    target_label: endpoint
    replacement: http-metrics
    action: replace
  - source_labels: [__address__]
    separator: ;
    regex: (.*)
    modulus: 1
    target_label: __tmp_hash
    replacement: $1
    action: hashmod
  - source_labels: [__tmp_hash]
    separator: ;
    regex: "0"
    replacement: $1
    action: keep
  kubernetes_sd_configs:
  - role: endpoints
    follow_redirects: true
    namespaces:
      names:
      - kube-system
- job_name: serviceMonitor/monitoring/prometheus-kube-prometheus-kube-etcd/0
  honor_timestamps: true
  scrape_interval: 30s
  scrape_timeout: 10s
  metrics_path: /metrics
  scheme: http
  authorization:
    type: Bearer
    credentials_file: /var/run/secrets/kubernetes.io/serviceaccount/token
  follow_redirects: true
  relabel_configs:
  - source_labels: [job]
    separator: ;
    regex: (.*)
    target_label: __tmp_prometheus_job_name
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_label_app]
    separator: ;
    regex: kube-prometheus-stack-kube-etcd
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_service_label_release]
    separator: ;
    regex: prometheus
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_port_name]
    separator: ;
    regex: http-metrics
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Node;(.*)
    target_label: node
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Pod;(.*)
    target_label: pod
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_namespace]
    separator: ;
    regex: (.*)
    target_label: namespace
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: service
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_name]
    separator: ;
    regex: (.*)
    target_label: pod
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_container_name]
    separator: ;
    regex: (.*)
    target_label: container
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: job
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_service_label_jobLabel]
    separator: ;
    regex: (.+)
    target_label: job
    replacement: ${1}
    action: replace
  - separator: ;
    regex: (.*)
    target_label: endpoint
    replacement: http-metrics
    action: replace
  - source_labels: [__address__]
    separator: ;
    regex: (.*)
    modulus: 1
    target_label: __tmp_hash
    replacement: $1
    action: hashmod
  - source_labels: [__tmp_hash]
    separator: ;
    regex: "0"
    replacement: $1
    action: keep
  kubernetes_sd_configs:
  - role: endpoints
    follow_redirects: true
    namespaces:
      names:
      - kube-system
- job_name: serviceMonitor/monitoring/prometheus-kube-prometheus-kube-proxy/0
  honor_timestamps: true
  scrape_interval: 30s
  scrape_timeout: 10s
  metrics_path: /metrics
  scheme: http
  authorization:
    type: Bearer
    credentials_file: /var/run/secrets/kubernetes.io/serviceaccount/token
  follow_redirects: true
  relabel_configs:
  - source_labels: [job]
    separator: ;
    regex: (.*)
    target_label: __tmp_prometheus_job_name
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_label_app]
    separator: ;
    regex: kube-prometheus-stack-kube-proxy
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_service_label_release]
    separator: ;
    regex: prometheus
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_port_name]
    separator: ;
    regex: http-metrics
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Node;(.*)
    target_label: node
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Pod;(.*)
    target_label: pod
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_namespace]
    separator: ;
    regex: (.*)
    target_label: namespace
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: service
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_name]
    separator: ;
    regex: (.*)
    target_label: pod
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_container_name]
    separator: ;
    regex: (.*)
    target_label: container
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: job
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_service_label_jobLabel]
    separator: ;
    regex: (.+)
    target_label: job
    replacement: ${1}
    action: replace
  - separator: ;
    regex: (.*)
    target_label: endpoint
    replacement: http-metrics
    action: replace
  - source_labels: [__address__]
    separator: ;
    regex: (.*)
    modulus: 1
    target_label: __tmp_hash
    replacement: $1
    action: hashmod
  - source_labels: [__tmp_hash]
    separator: ;
    regex: "0"
    replacement: $1
    action: keep
  kubernetes_sd_configs:
  - role: endpoints
    follow_redirects: true
    namespaces:
      names:
      - kube-system
- job_name: serviceMonitor/monitoring/prometheus-kube-prometheus-kube-scheduler/0
  honor_timestamps: true
  scrape_interval: 30s
  scrape_timeout: 10s
  metrics_path: /metrics
  scheme: http
  authorization:
    type: Bearer
    credentials_file: /var/run/secrets/kubernetes.io/serviceaccount/token
  follow_redirects: true
  relabel_configs:
  - source_labels: [job]
    separator: ;
    regex: (.*)
    target_label: __tmp_prometheus_job_name
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_label_app]
    separator: ;
    regex: kube-prometheus-stack-kube-scheduler
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_service_label_release]
    separator: ;
    regex: prometheus
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_port_name]
    separator: ;
    regex: http-metrics
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Node;(.*)
    target_label: node
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Pod;(.*)
    target_label: pod
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_namespace]
    separator: ;
    regex: (.*)
    target_label: namespace
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: service
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_name]
    separator: ;
    regex: (.*)
    target_label: pod
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_container_name]
    separator: ;
    regex: (.*)
    target_label: container
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: job
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_service_label_jobLabel]
    separator: ;
    regex: (.+)
    target_label: job
    replacement: ${1}
    action: replace
  - separator: ;
    regex: (.*)
    target_label: endpoint
    replacement: http-metrics
    action: replace
  - source_labels: [__address__]
    separator: ;
    regex: (.*)
    modulus: 1
    target_label: __tmp_hash
    replacement: $1
    action: hashmod
  - source_labels: [__tmp_hash]
    separator: ;
    regex: "0"
    replacement: $1
    action: keep
  kubernetes_sd_configs:
  - role: endpoints
    follow_redirects: true
    namespaces:
      names:
      - kube-system
- job_name: serviceMonitor/monitoring/prometheus-kube-prometheus-kube-state-metrics/0
  honor_labels: true
  honor_timestamps: true
  scrape_interval: 30s
  scrape_timeout: 10s
  metrics_path: /metrics
  scheme: http
  follow_redirects: true
  relabel_configs:
  - source_labels: [job]
    separator: ;
    regex: (.*)
    target_label: __tmp_prometheus_job_name
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_instance]
    separator: ;
    regex: prometheus
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_name]
    separator: ;
    regex: kube-state-metrics
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_port_name]
    separator: ;
    regex: http
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Node;(.*)
    target_label: node
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Pod;(.*)
    target_label: pod
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_namespace]
    separator: ;
    regex: (.*)
    target_label: namespace
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: service
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_name]
    separator: ;
    regex: (.*)
    target_label: pod
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_container_name]
    separator: ;
    regex: (.*)
    target_label: container
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: job
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_name]
    separator: ;
    regex: (.+)
    target_label: job
    replacement: ${1}
    action: replace
  - separator: ;
    regex: (.*)
    target_label: endpoint
    replacement: http
    action: replace
  - source_labels: [__address__]
    separator: ;
    regex: (.*)
    modulus: 1
    target_label: __tmp_hash
    replacement: $1
    action: hashmod
  - source_labels: [__tmp_hash]
    separator: ;
    regex: "0"
    replacement: $1
    action: keep
  kubernetes_sd_configs:
  - role: endpoints
    follow_redirects: true
    namespaces:
      names:
      - monitoring
- job_name: serviceMonitor/monitoring/prometheus-kube-prometheus-kubelet/0
  honor_labels: true
  honor_timestamps: true
  scrape_interval: 30s
  scrape_timeout: 10s
  metrics_path: /metrics
  scheme: https
  authorization:
    type: Bearer
    credentials_file: /var/run/secrets/kubernetes.io/serviceaccount/token
  tls_config:
    ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
    insecure_skip_verify: true
  follow_redirects: true
  relabel_configs:
  - source_labels: [job]
    separator: ;
    regex: (.*)
    target_label: __tmp_prometheus_job_name
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_managed_by]
    separator: ;
    regex: prometheus-operator
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_service_label_k8s_app]
    separator: ;
    regex: kubelet
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_port_name]
    separator: ;
    regex: https-metrics
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Node;(.*)
    target_label: node
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Pod;(.*)
    target_label: pod
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_namespace]
    separator: ;
    regex: (.*)
    target_label: namespace
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: service
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_name]
    separator: ;
    regex: (.*)
    target_label: pod
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_container_name]
    separator: ;
    regex: (.*)
    target_label: container
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: job
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_service_label_k8s_app]
    separator: ;
    regex: (.+)
    target_label: job
    replacement: ${1}
    action: replace
  - separator: ;
    regex: (.*)
    target_label: endpoint
    replacement: https-metrics
    action: replace
  - source_labels: [__metrics_path__]
    separator: ;
    regex: (.*)
    target_label: metrics_path
    replacement: $1
    action: replace
  - source_labels: [__address__]
    separator: ;
    regex: (.*)
    modulus: 1
    target_label: __tmp_hash
    replacement: $1
    action: hashmod
  - source_labels: [__tmp_hash]
    separator: ;
    regex: "0"
    replacement: $1
    action: keep
  kubernetes_sd_configs:
  - role: endpoints
    follow_redirects: true
    namespaces:
      names:
      - kube-system
- job_name: serviceMonitor/monitoring/prometheus-kube-prometheus-kubelet/1
  honor_labels: true
  honor_timestamps: true
  scrape_interval: 30s
  scrape_timeout: 10s
  metrics_path: /metrics/cadvisor
  scheme: https
  authorization:
    type: Bearer
    credentials_file: /var/run/secrets/kubernetes.io/serviceaccount/token
  tls_config:
    ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
    insecure_skip_verify: true
  follow_redirects: true
  relabel_configs:
  - source_labels: [job]
    separator: ;
    regex: (.*)
    target_label: __tmp_prometheus_job_name
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_managed_by]
    separator: ;
    regex: prometheus-operator
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_service_label_k8s_app]
    separator: ;
    regex: kubelet
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_port_name]
    separator: ;
    regex: https-metrics
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Node;(.*)
    target_label: node
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Pod;(.*)
    target_label: pod
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_namespace]
    separator: ;
    regex: (.*)
    target_label: namespace
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: service
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_name]
    separator: ;
    regex: (.*)
    target_label: pod
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_container_name]
    separator: ;
    regex: (.*)
    target_label: container
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: job
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_service_label_k8s_app]
    separator: ;
    regex: (.+)
    target_label: job
    replacement: ${1}
    action: replace
  - separator: ;
    regex: (.*)
    target_label: endpoint
    replacement: https-metrics
    action: replace
  - source_labels: [__metrics_path__]
    separator: ;
    regex: (.*)
    target_label: metrics_path
    replacement: $1
    action: replace
  - source_labels: [__address__]
    separator: ;
    regex: (.*)
    modulus: 1
    target_label: __tmp_hash
    replacement: $1
    action: hashmod
  - source_labels: [__tmp_hash]
    separator: ;
    regex: "0"
    replacement: $1
    action: keep
  kubernetes_sd_configs:
  - role: endpoints
    follow_redirects: true
    namespaces:
      names:
      - kube-system
- job_name: serviceMonitor/monitoring/prometheus-kube-prometheus-kubelet/2
  honor_labels: true
  honor_timestamps: true
  scrape_interval: 30s
  scrape_timeout: 10s
  metrics_path: /metrics/probes
  scheme: https
  authorization:
    type: Bearer
    credentials_file: /var/run/secrets/kubernetes.io/serviceaccount/token
  tls_config:
    ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
    insecure_skip_verify: true
  follow_redirects: true
  relabel_configs:
  - source_labels: [job]
    separator: ;
    regex: (.*)
    target_label: __tmp_prometheus_job_name
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_managed_by]
    separator: ;
    regex: prometheus-operator
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_service_label_k8s_app]
    separator: ;
    regex: kubelet
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_port_name]
    separator: ;
    regex: https-metrics
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Node;(.*)
    target_label: node
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Pod;(.*)
    target_label: pod
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_namespace]
    separator: ;
    regex: (.*)
    target_label: namespace
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: service
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_name]
    separator: ;
    regex: (.*)
    target_label: pod
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_container_name]
    separator: ;
    regex: (.*)
    target_label: container
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: job
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_service_label_k8s_app]
    separator: ;
    regex: (.+)
    target_label: job
    replacement: ${1}
    action: replace
  - separator: ;
    regex: (.*)
    target_label: endpoint
    replacement: https-metrics
    action: replace
  - source_labels: [__metrics_path__]
    separator: ;
    regex: (.*)
    target_label: metrics_path
    replacement: $1
    action: replace
  - source_labels: [__address__]
    separator: ;
    regex: (.*)
    modulus: 1
    target_label: __tmp_hash
    replacement: $1
    action: hashmod
  - source_labels: [__tmp_hash]
    separator: ;
    regex: "0"
    replacement: $1
    action: keep
  kubernetes_sd_configs:
  - role: endpoints
    follow_redirects: true
    namespaces:
      names:
      - kube-system
- job_name: serviceMonitor/monitoring/prometheus-kube-prometheus-node-exporter/0
  honor_timestamps: true
  scrape_interval: 30s
  scrape_timeout: 10s
  metrics_path: /metrics
  scheme: http
  follow_redirects: true
  relabel_configs:
  - source_labels: [job]
    separator: ;
    regex: (.*)
    target_label: __tmp_prometheus_job_name
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_label_app]
    separator: ;
    regex: prometheus-node-exporter
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_service_label_release]
    separator: ;
    regex: prometheus
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_port_name]
    separator: ;
    regex: metrics
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Node;(.*)
    target_label: node
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Pod;(.*)
    target_label: pod
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_namespace]
    separator: ;
    regex: (.*)
    target_label: namespace
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: service
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_name]
    separator: ;
    regex: (.*)
    target_label: pod
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_container_name]
    separator: ;
    regex: (.*)
    target_label: container
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: job
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_service_label_jobLabel]
    separator: ;
    regex: (.+)
    target_label: job
    replacement: ${1}
    action: replace
  - separator: ;
    regex: (.*)
    target_label: endpoint
    replacement: metrics
    action: replace
  - source_labels: [__address__]
    separator: ;
    regex: (.*)
    modulus: 1
    target_label: __tmp_hash
    replacement: $1
    action: hashmod
  - source_labels: [__tmp_hash]
    separator: ;
    regex: "0"
    replacement: $1
    action: keep
  kubernetes_sd_configs:
  - role: endpoints
    follow_redirects: true
    namespaces:
      names:
      - monitoring
- job_name: serviceMonitor/monitoring/prometheus-kube-prometheus-operator/0
  honor_labels: true
  honor_timestamps: true
  scrape_interval: 30s
  scrape_timeout: 10s
  metrics_path: /metrics
  scheme: https
  tls_config:
    ca_file: /etc/prometheus/certs/secret_monitoring_prometheus-kube-prometheus-admission_ca
    server_name: prometheus-kube-prometheus-operator
    insecure_skip_verify: false
  follow_redirects: true
  relabel_configs:
  - source_labels: [job]
    separator: ;
    regex: (.*)
    target_label: __tmp_prometheus_job_name
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_label_app]
    separator: ;
    regex: kube-prometheus-stack-operator
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_service_label_release]
    separator: ;
    regex: prometheus
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_port_name]
    separator: ;
    regex: https
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Node;(.*)
    target_label: node
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Pod;(.*)
    target_label: pod
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_namespace]
    separator: ;
    regex: (.*)
    target_label: namespace
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: service
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_name]
    separator: ;
    regex: (.*)
    target_label: pod
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_container_name]
    separator: ;
    regex: (.*)
    target_label: container
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: job
    replacement: ${1}
    action: replace
  - separator: ;
    regex: (.*)
    target_label: endpoint
    replacement: https
    action: replace
  - source_labels: [__address__]
    separator: ;
    regex: (.*)
    modulus: 1
    target_label: __tmp_hash
    replacement: $1
    action: hashmod
  - source_labels: [__tmp_hash]
    separator: ;
    regex: "0"
    replacement: $1
    action: keep
  kubernetes_sd_configs:
  - role: endpoints
    follow_redirects: true
    namespaces:
      names:
      - monitoring
- job_name: serviceMonitor/monitoring/prometheus-kube-prometheus-prometheus/0
  honor_timestamps: true
  scrape_interval: 30s
  scrape_timeout: 10s
  metrics_path: /metrics
  scheme: http
  follow_redirects: true
  relabel_configs:
  - source_labels: [job]
    separator: ;
    regex: (.*)
    target_label: __tmp_prometheus_job_name
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_label_app]
    separator: ;
    regex: kube-prometheus-stack-prometheus
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_service_label_release]
    separator: ;
    regex: prometheus
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_service_label_self_monitor]
    separator: ;
    regex: "true"
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_port_name]
    separator: ;
    regex: web
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Node;(.*)
    target_label: node
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Pod;(.*)
    target_label: pod
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_namespace]
    separator: ;
    regex: (.*)
    target_label: namespace
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: service
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_name]
    separator: ;
    regex: (.*)
    target_label: pod
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_pod_container_name]
    separator: ;
    regex: (.*)
    target_label: container
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: job
    replacement: ${1}
    action: replace
  - separator: ;
    regex: (.*)
    target_label: endpoint
    replacement: web
    action: replace
  - source_labels: [__address__]
    separator: ;
    regex: (.*)
    modulus: 1
    target_label: __tmp_hash
    replacement: $1
    action: hashmod
  - source_labels: [__tmp_hash]
    separator: ;
    regex: "0"
    replacement: $1
    action: keep
  kubernetes_sd_configs:
  - role: endpoints
    follow_redirects: true
    namespaces:
      names:
      - monitoring

- Prometheus Targets:

[scholzj]

@ppatierno @sknot-rh Any ideas?

[LiamClarkeNZ]

Hi @emy-lee,

Can you please post the contents of the strimzi-pod-monitor.yaml you applied?

[emy-lee]

maybe my prometheus doesn't support podmonitor? Is it possible?

[sknot-rh]

What version of prometheus operator are you using? Do its logs says something suspisious?

[emy-lee]

I installed prometheus operator with this command:
helm install prometheus prometheus-community/kube-prometheus-stack -n myproject

And this command says that I am using the version 0.47.1:

$ kubectl describe pod prometheus-kube-prometheus-operator-5bf4c6d69f-tx4h8 -n myproject
Name:         prometheus-kube-prometheus-operator-5bf4c6d69f-tx4h8
Namespace:    myproject
Priority:     0
Node:         gke-cluster-1-default-pool-2c6dccd3-xrvn/10.128.15.230
Start Time:   Thu, 27 May 2021 14:02:57 +0200
Labels:       app=kube-prometheus-stack-operator
              app.kubernetes.io/instance=prometheus
              app.kubernetes.io/managed-by=Helm
              app.kubernetes.io/part-of=kube-prometheus-stack
              app.kubernetes.io/version=16.0.1
              chart=kube-prometheus-stack-16.0.1
              heritage=Helm
              pod-template-hash=5bf4c6d69f
              release=prometheus
Annotations:  <none>
Status:       Running
IP:           10.4.0.12
IPs:
  IP:           10.4.0.12
Controlled By:  ReplicaSet/prometheus-kube-prometheus-operator-5bf4c6d69f
Containers:
  kube-prometheus-stack:
    Container ID:  containerd://489028d44c0308ac51fd130a2ed49a6ac0a5e1dd59d8c04b292981ea5b6f4b1b
    Image:         quay.io/prometheus-operator/prometheus-operator:v0.47.1
    Image ID:      quay.io/prometheus-operator/prometheus-operator@sha256:dd7b90c19e2bdce9db5832d9f4e51045b86972a1b1cf13f8e6fffcc505c93d7c
    Port:          10250/TCP
    Host Port:     0/TCP

[sknot-rh]

0.47.1 definitely supports PodMonitors

[bj9306]

did we figure it out what caused this issue?
