Azure LB Creation Issue

[subash-subramaniyan]

Hi Team,

Unable to create Azure internal LB, Please help me to fix the issue.

apiVersion: kafka.strimzi.io/v1beta2
kind: Kafka
metadata:
name: prod1
spec:
kafka:
template:
externalBootstrapService:
metadata:
annotations:
service.beta.kubernetes.io/azure-load-balancer-internal: "true"
perPodService:
metadata:
annotations:
service.beta.kubernetes.io/azure-load-balancer-internal: "true"
version: 3.2.0
replicas: 1
listeners:
- name: plain
port: 9092
type: internal
type: loadbalancer
tls: false
- name: tls
port: 9093
type: internal
tls: true
configuration:
bootstrap:
annotations:
service.beta.kubernetes.io/azure-load-balancer-internal: "true"
brokers:
- broker: 0
annotations:
service.beta.kubernetes.io/azure-load-balancer-internal: "true"
config:
offsets.topic.replication.factor: 1
transaction.state.log.replication.factor: 1
transaction.state.log.min.isr: 1
default.replication.factor: 1
min.insync.replicas: 1
inter.broker.protocol.version: "3.2"
storage:
type: jbod
volumes:
- id: 0
type: persistent-claim
size: 5Gi
deleteClaim: false
zookeeper:
replicas: 1
storage:
type: persistent-claim
size: 5Gi
deleteClaim: false
entityOperator:
topicOperator: {}
userOperator: {}

[scholzj]

Can you please format it properly? Without the proper formatting with the whitespaces etc., it is hard to say what might be wrong.

[subash-subramaniyan]

kafka.zip

[subash-subramaniyan]

Not able to upload formated file, Please review the file and do the needfull ASAP

[scholzj]

You have mixed up the listeners I think. You have the annotations configured for the type: internal listener. But that needs to be with the type: loadbalancer listener. So I think you need to fix that.

If that still doesn't help, share the updated custom resource. But you should also check the services:

• What state are they in
• If they have the right annotation

[subash-subramaniyan]

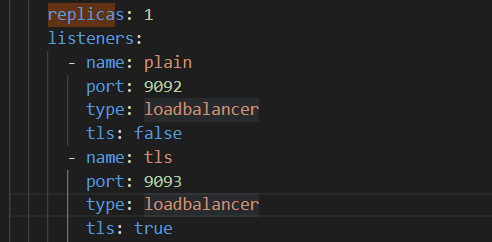

changed the type to loadblancer, But its not working , Please find the attached image

I have deploy the kafka using cluster.yaml file which is ziped in above the file, Please review and do the needfull.

[scholzj]

Ok, well ... did you checked the services then as I suggested?

[subash-subramaniyan]

kafka.zip

Please find the ZIP fle , Im not able to format, Kindly do the needful

[subash-subramaniyan]

I will check the services and let you know, Can you please help whiche is best way to deploy the strimzi Kafka helm or cluster.yaml file

…

On Thu, Oct 13, 2022, 8:42 PM Jakub Scholz ***@***.***> wrote: Ok, well ... did you checked the services then as I suggested? — Reply to this email directly, view it on GitHub <#7474 (reply in thread)>, or unsubscribe <https://github.com/notifications/unsubscribe-auth/AWM3TAUELFJIWPW3NHDQNELWDAREDANCNFSM6AAAAAAREJ73SM> . You are receiving this because you authored the thread.Message ID: <strimzi/strimzi-kafka-operator/repo-discussions/7474/comments/3871197@ github.com>

[scholzj]

Can you please help whiche is
best way to deploy the strimzi Kafka helm or cluster.yaml file

That is up to you. I personally don't use Helm for anything.

[subash-subramaniyan]

Thank you
