Subdirectory with Apache virtual host

[pcclarke]

I'm trying to use SvelteKit in a subfolder on an Apache server, as in http://mysite/kit. Unfortunately, it seems like no matter what options I pick for the paths, something has a broken url.

On the Apache side, I have what should be a pretty straightforward reverse proxy:

<VirtualHost *:80>
    ProxyPreserveHost On

    ProxyPass /kit http://localhost:3000
    ProxyPassReverse /kit http://localhost:3000

    ServerName mysite
</VirtualHost>

Then I'm using Node v16.19.1 (it's an old server, I'm afraid) to run the "Sverdle" demo app on the server. I'm just trying to do the bare minimum to see if I can get SvelteKit working on this server. If I go to mysite:3000 everything appears as expected, as if I'm running the demo app locally.

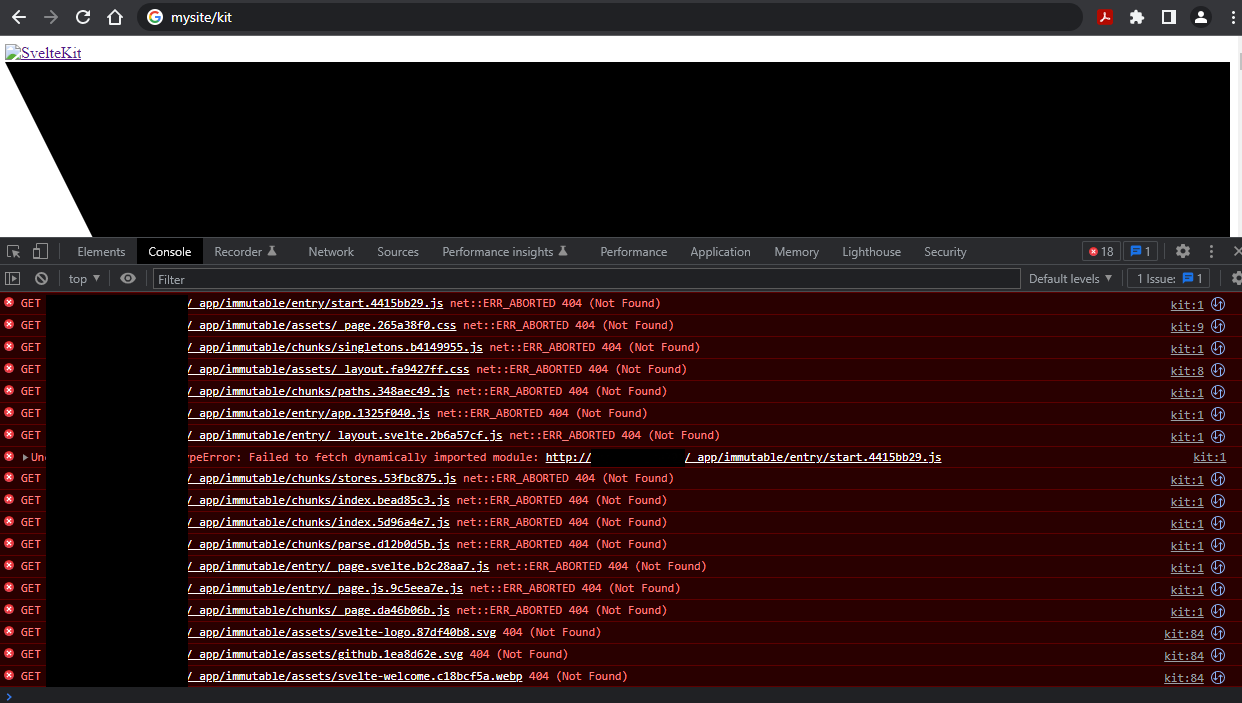

Seeing as I'm running this demo app from a subdirectory, my first thought was to use relative: true in my paths configuration so that urls would be relative to the subdirectory. However, when I go to mysite/kit, I get a large number of 404s. The demo app is trying to access files from the root of the site instead of the subdirectory.

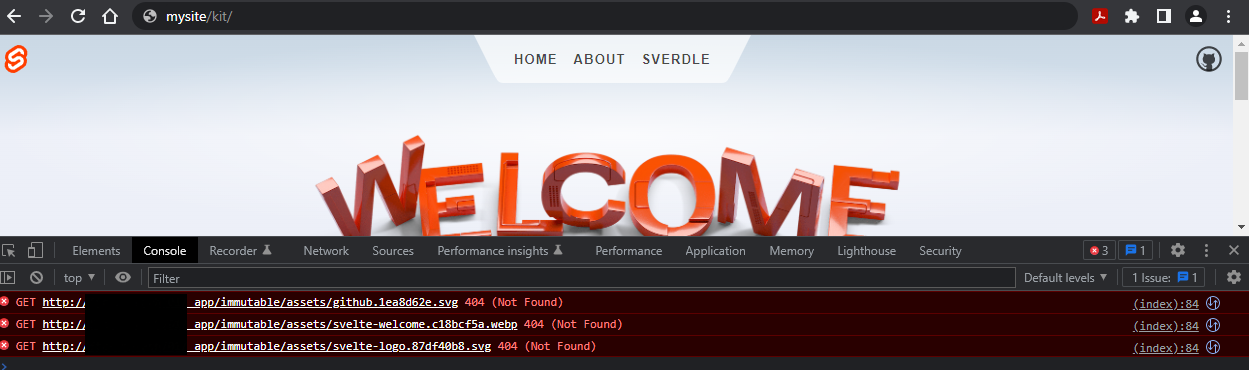

Oddly, this does sort of work with mysite/kit/ when the forward slash is added. Still, a number of 404s remain:

From what I can tell, there's some confusion in SvelteKit where some of it does recognize the subdirectory, but other parts are looking for files from the root.

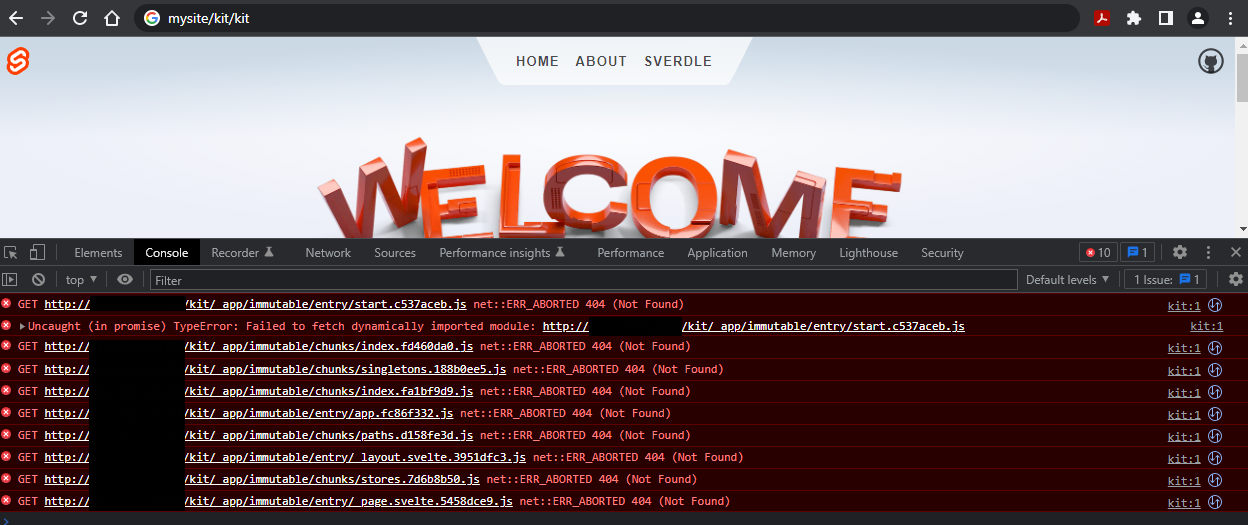

My next thought was to use base: '/kit', which should allow the app to live in a subdirectory. Unfortunately, this rearranges the routing so now the app is at mysite/kit/kit, while the JavaScript files have urls under mysite/kit.

Is what I'm trying to do even possible? And if so, how can I control the paths so that the routing and urls match how I've set up the proxy?
