Boosting JSONDecoder/Encoder performance for large apps

[ChrisBenua]

Table of Contents

1. JSONDecoder/Encoder Performance Problem

2. JSONDecoder Performance Flaws

3. Proposed Optimizations

4. Optimizations Results

5. Apple Benchmark Overview

6. Apple Benchmark Flaws

7. My Benchmark

JSONDecoder/Encoder Performance Problem

Introduction

swift_conformsToProtocolMaybeInstantiateSuperclasses method is slow, because it traverses all protocol-conformance-descriptors in whole app when gets called first time for pair (class/enum/struct, protocol).

EmergeTools have great article about poor performance of swift_conformsToProtocolMaybeInstantiateSuperclasses.

Briefly, the more protocol-conformance your app has, the slower is swift_conformsToProtocolMaybeInstantiateSuperclasses. Our app has more than 150k of protocol conformances. It can be easily measured using this bash one-liner.

otool -l path/to/your/binary | grep '__swift5_proto$' -A 5 | grep 'size' | awk '/size/ { hex = $2; sub("0x", "", hex); print int("0x" hex)/4 + 0 }'

We take size of __swift5_proto section and divide it by 4 (4-byte integer offsets are stored here).

When swift_conformsToProtocol is called

In short, there are 3 ways to trigger this method:

• T.self is SomeProtocol.Type
• as?/as!/as (in switch statement) SomeProtocol
• Generic-classes with type-generic-constraints
  • swift_conformsToProtocol is triggered because class metadata contains GenericParameterVector. And GenericParameterVector has to contain protocol-witness-tables for each protocol that generic parameter conforms.

JSONDecoder Performance Flaws

unwrap function

The first place in JSONDecoder where swift_conformsToProtocolMaybeInstantiateSuperclasses is used is unwrap function

func unwrap<T: Decodable>(_ mapValue: JSONMap.Value, as type: T.Type, for codingPathNode: _CodingPathNode, _ additionalKey: (some CodingKey)? = nil) throws -> T {
    ...
    if T.self is _JSONStringDictionaryDecodableMarker.Type {
        return try self.unwrapDictionary(from: mapValue, as: type, for: codingPathNode, additionalKey)
    }
    ...
}

KeyedDecodingContainer

KeyedDecodingContainer has type-generic-constraint: K: CodingKey. It is the second place where swift_conformsToProtocol gets called.

JSONDecoder swift_conformsToProtocol Performance Impact

swift_conformsToProtocol consumes at least 84% of all JSONDecoder.decode time in our app startup scenario.

JSONEncoder Performance Flaws

wrapGeneric function

The first place in JSONEncoder where swift_conformsToProtocolMaybeInstantiateSuperclasses is used is wrapGeneric function

func wrapGeneric<T: Encodable>(_ value: T, for additionalKey: (some CodingKey)? = _CodingKey?.none) throws -> JSONEncoderValue? {
    ...
    else if let encodable = value as? _JSONStringDictionaryEncodableMarker {
        return try self.wrap(encodable as! [String:Encodable], for: additionalKey)
    } else if let array = value as? _JSONDirectArrayEncodable {
        ...
    }
    ...
}

KeyedEncodingContainer

KeyedEncodingContainer has type-generic-constraint: K: CodingKey. It is the second place where swift_conformsToProtocol gets called.

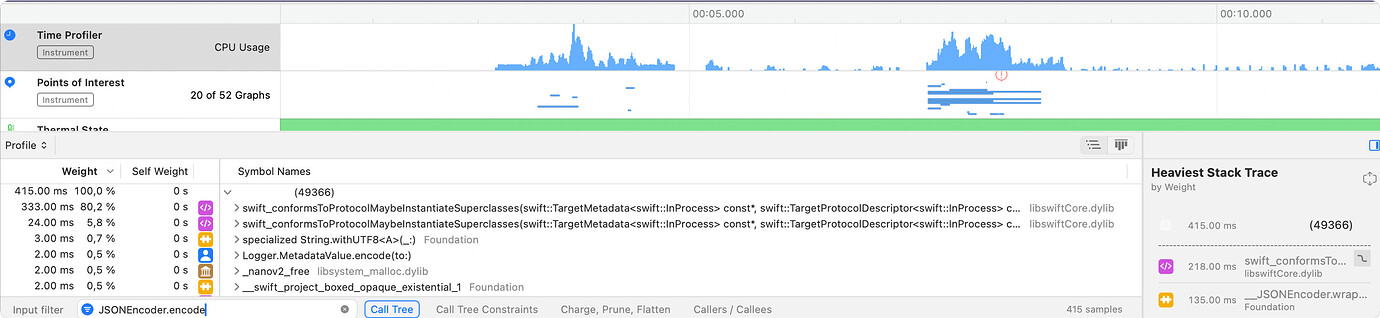

JSONEncoder swift_conformsToProtocol Performance Impact

.

swift_conformsToProtocol consumes at least 84% of all JSONEncoder.encode time in out app startup scenario.

Proposed Optimizations

Firstly ABI/API break-free optimizations will be covered:

№1 JSONDecoder unwrap optimization

_JSONStringDictionaryDecodableMarker is used to make String-keyed Dictionaries exempt from key conversion. So if there is no key-conversion we can skip this slow check:

switch options.keyDecodingStrategy {
  case .useDefaultKeys:
    break
  case .convertFromSnakeCase, .custom:
    if T.self is _JSONStringDictionaryDecodableMarker.Type {
       return try unwrapDictionary(...)
    }
}

return try self.with(value: mapValue, path: codingPathNode.appending(additionalKey)) {
    try type.init(from: self)
}

instead of

if T.self is _JSONStringDictionaryDecodableMarker.Type {
    return try self.unwrapDictionary(from: mapValue, as: type, for: codingPathNode, additionalKey)
}

return try self.with(value: mapValue, path: codingPathNode.appending(additionalKey)) {
    try type.init(from: self)
}

So this optimization is suitable only for .useDefaultKeys strategy.

№2 JSONEncoder wrapGeneric optimization

There are two ways to attempt optimization of this function.

• If we believe that as? _JSONDirectArrayEncodable deals more benefit than harm to performance (at least in our app and in this benchmark it does more harm), then we will optimize only _JSONStringDictionaryEncodableMarker check the same way we did it for JSONDecoder and _JSONStringDictionaryDecodableMarker
• If not it's better to remove as? _JSONDirectArrayEncodable check at all

Here is _JSONStringDictionaryEncodableMarker check optimization:

switch options.keyEncodingStrategy {
  case .useDefaultKeys:
    break
  case .convertToSnakeCase, .custom:
    if let encodable = value as? _JSONStringDictionaryEncodableMarker {
      return try wrap(encodable as! [String: Encodable], for: additionalKey)
    }
}

So this optimization is suitable only for .useDefaultKeys strategy.

Optimization №1 and №2 are implemented in FastCoders library.

№3 Possibly ABI/API breaking optimizations

So here we will try to solve performance issue with KeyedDecodingContainer and KeyedEncodingContainer type-generic-constraints.

The problem is not about calling KeyedDecodingContainer or KeyedEncodingContainer init, it is about referencing type with specified generic-type:

For example, take this code:

import Foundation

struct A: Codable {
    let a: Int
}

Its init(from: Decoder) throws method SIL has line like

%5 = alloc_stack [lexical] [var_decl] $KeyedDecodingContainer<A.CodingKeys>, scope 22

And its IR is:

  %4 = call ptr @__swift_instantiateConcreteTypeFromMangledName(ptr @"demangling cache variable for type metadata for Swift.KeyedDecodingContainer<output.A.(CodingKeys in _60494E8B9C642A7C4A26F3A3B6CECEB9)>") #2, !dbg !194

Internally __swift_instantiateConcreteTypeFromMangledName triggers swift_conformsToProtocol in this scenario.

So we mention type KeyedDecodingContainer with specific type A.CodingKeys.

func encode(to: Encoder) throws has the same flaw.

There are two possible ways to tackle them:

• Change KeyedDecodingContainer and KeyedEncodingContainer type signature to avoid type generic constraints (wasn't implemented in this repository)
• Use the same CodingKey in Codable/Decodable/Encodable conformance auto-generated code. For example, String.

№3.1 Changing type signature

So the trick is to get rid of K: CodingKey type-generic-constraint in type-declaration and move it to extension. So there will be no need for GenericParameterVector to contain protocol-witness-table and there will be no swift_conformsToProtocol call when generic-type is mentioned or instantiated.

Before:

public struct KeyedDecodingContainer<K: CodingKey> :
  KeyedDecodingContainerProtocol
{
  public typealias Key = K

  /// The container for the concrete decoder.
  internal var _box: _KeyedDecodingContainerBase

  /// Creates a new instance with the given container.
  ///
  /// - parameter container: The container to hold.
  public init<Container: KeyedDecodingContainerProtocol>(
    _ container: Container
  ) where Container.Key == Key {
    _box = _KeyedDecodingContainerBox(container)
  }

  /// The path of coding keys taken to get to this point in decoding.
  public var codingPath: [any CodingKey] {
    return _box.codingPath
  }

  // continue to conform to KeyedDecodingContainerProtocol protocol
  ...
}

After:

public struct KeyedDecodingContainer<K>
{
  /// The container for the concrete decoder.
  internal var _box: _KeyedDecodingContainerBase

  /// Creates a new instance with the given container.
  ///
  /// - parameter container: The container to hold.
  public init<Container: KeyedDecodingContainerProtocol>(
    _ container: Container
  ) where Container.Key == Key {
    _box = _KeyedDecodingContainerBox(container)
  }
}

extension KeyedDecodingContainer: KeyedDecodingContainerProtocol where K: CodingKey {
  public typealias Key = K

  /// The path of coding keys taken to get to this point in decoding.
  public var codingPath: [any CodingKey] {
    return _box.codingPath
  }

  // continue to conform to KeyedDecodingContainerProtocol protocol
  ...
}

Same trick can be applied to KeyedEncodingContainer.

Note: despite _KeyedDecodingContainerBox has type-generic-constraint it seems like we can avoid rewriting code to avoid it because of the way it gets called:

public init<Container: KeyedDecodingContainerProtocol>(
    _ container: Container
) where Container.Key == Key {
    _box = _KeyedDecodingContainerBox(container)
}

In this scenario, in IR-code there is reference to protocol-witness-table of Container implementing KeyedDecodingContainerProtocol:

define protected swiftcc ptr @"output.KeyedDecodingContainerV2.init<A where A == A1.Key, A1: Swift.KeyedDecodingContainerProtocol>(A1) -> output.KeyedDecodingContainerV2<A>"(ptr noalias %0, ptr %K, ptr %Container, ptr %Container.KeyedDecodingContainerProtocol) #0 !dbg !84

and there is no __swift_instantiateConcreteTypeFromMangledName call.

№3.2 Use String as CodingKey

Why this would be faster:

• swift_conformsToProtocol works slowly only when it gets called for the first time for each (class/enum/struct, protocol) pair.
• So if we will use String as CodingKey, swift_conformsToProtocol will be called with the same types: String and CodingKey
• And only first call will be slow. All subsequent calls are going to be much-much faster, because ConcurrentReadableHashMap is used for caching in swift_conformsToProtocol.

How String can conform CodingKey

extension String: CodingKey {
  public init?(stringValue: String) {
    self = stringValue
  }
  public init?(intValue: Int) { nil }
  public var intValue: Int? { nil }
  public var stringValue: String {
    self
  }
}

How this can be implemented

We can introduce experimental flag. When flag is enabled, we don't auto-generate enum CodingKeys for our struct/enum and use raw String as CodingKeys in init(from: Decoder) throws and encode(to: Encoder) throws.

Additional advantages

Each auto-generated enum CodingKeys adds 5 protocol-conformance-descriptors. godbolt:

• CodingKey
• Hashable
• Equatable
• CustomDebugStringConvertible
• CustomStringConvertible

Also, it each CodingKey adds around 1.8 kb to app size (measured on the same 10k Codable structures):

• codable-benchmark-package-no-coding-keys - where String is used as CodingKey but there are CodingKeys to match __swift5_proto section size
  • 49 mb
• codable-benchmark-package-no-coding-keys-measure-size - where String is used as CodingKey and there are no CodingKeys
  • 31.1 mb
• So each CodingKey adds around 1.8 kb to application binary size.

So if shared CodingKey is implemented we could:

• Optimize application size
• Optimize overall application performance due to boosting swift_conformsToProtocol method by __swift5_proto section size reduction.
  • codable-benchmark-package-no-coding-keys has 70321 protocol conformance descriptos
  • codable-benchmark-package-no-coding-keys-measure-size has only 20321 protocol conformance descriptos

Optimizations results

Measurements in our app

In our app we applied only JSONDecoder.unwrap and JSONEncoder.wrapGeneric optimizations without using String as CodingKeys.

We've measured all JSONDecoder.decode and JSONEncoder.encode durations and added them together.

We have 80k measurements from different devices. ~40k with optimized JSONDecoder and JSONEncoder and ~40k with standard JSONDecoder and JSONEncoder with duration logging.

quantile	0.1	0.25	0.5	0.75	0.9
standard JSONDecoder	198 ms	282 ms	422 ms	667 ms	1017 ms
optimized JSONDecoder	100 ms	133 ms	200 ms	322 ms	528 ms
Difference	↑49.5%	↑52.8%	↑52.6%	↑51.7%	↑48.1%

And for JSONEncoder:

quantile	0.1	0.25	0.5	0.75	0.9
standard JSONEncoder	59 ms	94 ms	159 ms	289 ms	547 ms
optimized JSONEncoder	14 ms	30 ms	73 ms	135 ms	220 ms
Difference	↑76%	↑68%	↑54%	↑53.2%	↑59.8%

Briefly, new JSONDecoder became as twice as fast as standard JSONDecoder and JSONEncoder is at least twice as fast as standard JSONEncoder.

My benchmark measurements

I've implemented my own benchmark for JSONDecoder/Encoder: https://github.com/ChrisBenua/JSONDecoderEncoderBenchmarks?tab=readme-ov-file#proposed-optimizations

JSONDecoder

In this benchmark I've measured performance in 4 variations:

• standard JSONDecoder
• standard JSONDecoder + String as CodingKey
• optimized JSONDecoder
• optimized JSONDecoder + String as CodingKey

quantile	0.25	0.5	0.75
standard JSONDecoder	5.81 s	5.826 s	5.86 s
standard JSONDecoder + String as CodingKey	3.24 s (↑44%)	3.26 s (↑44%)	3.29 s (↑43.9%)
optimized JSONDecoder	2.64 s (↑55%)	2.65 s (↑55%)	2.66 s (↑54.6%)
optimized JSONDecoder + String as CodingKey	0.113 s (↑98%)	0.114 s (↑98%)	0.116 s (↑98%)

JSONEncoder

In this benchmark I've measured performance in 4 variations:

• standard JSONEncoder
• standard JSONEncoder + String as CodingKey
• optimized JSONEncoder
• optimized JSONEncoder + String as CodingKey

quantile	0.25	0.5	0.75
standard JSONEncoder	8.06 s	8.08 s	8.12 s
standard JSONEncoder + String as CodingKey	5.49 s (↑32%)	5.52 s (↑32%)	5.55 s (↑32%)
optimized JSONEncoder	2.67 s (↑67%)	2.68 s (↑67%)	2.69 s (↑67%)
optimized JSONEncoder + String as CodingKey	0.148 s (↑98.1%)	0.149 s (↑98.2%)	0.151 s (↑98.1%)

My benchmark illustrates how big Swift Runtime slows down JSONDecoder and JSONEncoder.

Apple Benchmark

Swift-foundation repository has some JSONDecoder/Encoder benchmarking logic: JSONBenchmark.swift.

Apple Benchmark Flaws

• It decodes/encode the same models for 1 bln times without relaunching app
  • This way all swift_conformsToProtocol overhead is disguised, because swift_conformsToProtocol is slow only on first iteration.
  • Small binary size and small __swift5_proto section

My benchmark

Structure

• Library FastCoders contains optimized realizations of JSONDecoder/JSONEncoder
• RegularModels contains 10k Codable models with standard Codable implementation. These 10k Codable models can be semantically splitted to 2.5k groups of 4.
• StringCodingKeyModels contains same 10k Codable models with manually implemented Codable with String as CodingKey
• codable-benchmark-package - target where 2.5k decodings and encodings of RegularModels duration is measured
• codable-benchmark-package-no-coding-keys - target where 2.5k decodings and encodings of StringCodingKeyModels duration is measured.
• codable-benchmark-package and codable-benchmark-package-no-coding-keys use A1_Hierarchy.json file for decoding. Its size is only 319 bytes.

Notes:

• To match size of __swift5_proto in codable-benchmark-package-no-coding-keys match size of __swift5_proto in codable-benchmark-package I've generated CodingKeys enum in each class but it is not used in encode(to: Encoder) or decode(from: Decoder).

Building

Use ./build.sh for building and stripping codable-benchmark-package and codable-benchmark-package-no-coding-key.

Checking __swift5_proto size

To get amount of protocol-conformance-descriptors in binary use this script:

• otool -l .build/arm64-apple-macosx/release/codable-benchmark-package | grep '__swift5_proto$' -A 5 | grep 'size' | awk '/size/ { hex = $2; sub("0x", "", hex); print int("0x" hex)/4 + 0 }' outputs 70320.
• otool -l .build/arm64-apple-macosx/release/codable-benchmark-package-no-coding-keys | grep '__swift5_proto$' -A 5 | grep 'size' | awk '/size/ { hex = $2; sub("0x", "", hex); print int("0x" hex)/4 + 0 }' outputs 70321.
• So in case of swift_conformsToProtocol performance both binaries are pretty similar.

Running

• codable-benchmark-package and codable-benchmark-package-no-coding-key has 4 modes:
  • decode - measures decoding using standard JSONDecoder
  • decode_new - measure decoding using optimized JSONDecoder
  • encode - measure encoding using standard JSONEncoder
  • encode_new - measure encoding using standard JSONEncoder

I've used run_bench.py script to run binary for each mode. It measures each binary and each mode 100 times. It takes a while to run. You can easiliy adjust amount of repetitions in run_bench.py.

[ChrisBenua]

Optimizations №1 and №2 can be implemented easily. The only question is: should we remove _JSONDirectArrayEncodable or leave it?

From my point of view type check to _JSONDirectArrayEncodable make JSONEncoder more slow despite removing overhead of UnkeyedEncodingContainer. Maybe we should let _JSONDirectArrayEncodable stay but make some boolean-flag to disable this check

@jmschonfeld Could you please share your perspective on this?

[ChrisBenua]

In my pull request #1481 I've optimized checks only for _JSONStringDictionaryDecodableMarker and _JSONStringDictionaryEncodableMarker.

I'll leave _JSONDirectArrayEncodable as it is for now until we discuss it

[ChrisBenua]

Swift forum discussion:
https://forums.swift.org/t/improving-jsondecoder-encoder-performance-for-large-apps/81839

[ChrisBenua]

Optimizations №1 and №2 can be implemented easily. The only question is: should we remove _JSONDirectArrayEncodable or leave it?

From my point of view type check to _JSONDirectArrayEncodable make JSONEncoder more slow despite removing overhead of UnkeyedEncodingContainer. Maybe we should let _JSONDirectArrayEncodable stay but make some boolean-flag to disable this check

@parkera @kperryua Tony, Kevin, I would be pleased if we could discuss _JSONDirectArrayEncodable future: should we leave it or completely remove it. Please share your thoughts on this subject.

Thanks in advance!

[kperryua]

@parkera @kperryua Tony, Kevin, I would be pleased if we could discuss _JSONDirectArrayEncodable future: should we leave it or completely remove it. Please share your thoughts on this subject.

It's very difficult to make such a judgement, as it depends on many different factors. For instance, if you've got a small array of very complex types, the cast will likely be undesirable for optimal performance. However, if you were to decode a large array of simple UInt8 values, the cast makes a huge improvement. Unfortunately, without doing such a cast, we have no way of determining which case we're dealing with. We could probably get better benchmarking here (which I see you've looked into), but even then, it becomes a human judgement call as to whether X% improvement in benchmark A is worth a Y% regression in benchmark B. We made one such judgement call with this special-case, but I'm happy to listen to any evidence or argument that you think demonstrates that we're better off without it.

Or we potentially look for ways to give the implementation more information.

[ChrisBenua]

We could probably get better benchmarking here (which I see you've looked into), but even then, it becomes a human judgement call as to whether X% improvement in benchmark A is worth a Y% regression in benchmark B. We made one such judgement call with this special-case, but I'm happy to listen to any evidence or argument that you think demonstrates that we're better off without it.

I've tested locally [UInt8] of 100k elements array encoding. The performance gain when using _JSONDirectArrayEncodable is massive. Even if this array is encoded exactly once (so we don't hit protocol-conformance-cache) JSONEncoder with _JSONDirectArrayEncodable works 8 times faster. So we definitely can't just remove _JSONDirectArrayEncodable check and my initial intention to remove was premature.

But we can introduce new field to _Options struct along with new computed property in JSONEncoder. It shouldn't break any ABI/API, I've checked this locally using swift-api-digester.

I don't want to stick with Boolean-flag option, because it can introduce API/ABI breaking changes in future, that's why I think new enum like DateEncodingStrategy should be introduced. I'm really bad at naming things, but there are my naming-options: DirectArrayEncodingStrategy, DirectArrayEncodingOption, DirectArrayEncodingOptimizationMode.

/// The array of primitives encoding options available when encoding arrays as JSON
enum DirectArrayEncodingOptimizationMode {
    /// Option that disables optimization. With this option `JSONEncoder` encodes faster for all cases except encoding large array of primitives
    case disabled
    /// Option that enables optimization. With this option `JSONEncoder` encodes fast large array of primitives but may introduce overhead for other cases
    case enabled
}

Default value will be .enabled so users of JSONEncoder won't face any accidental performance degradations.

@kperryua I'd love to hear your perspective on this solution, naming options and doc-strings

After we agree on naming and docs I will update my PR shortly

Thanks in advance!

[ChrisBenua]

Or may be we can do the whole different thing.

There are limited amount of types that conform to _JSONSimpleValueArrayElement:

• Int, Int8, Int16, Int32, Int64, Int128
• UInt, UInt8, UInt16, UInt32, UInt64, UInt128
• String
• Float
• Double

So there are limited amount of types that conform to _JSONDirectArrayEncodable:

• Array of Int, Int8, Int16, Int32, Int64 or Int128
• Array of UInt, UInt8, UInt16, UInt32, UInt64 or UInt128
• Array of Strings
• Array of Floats
• Array of Double

So we can replace protocol conformance check with more type-checks instead (15 type checks).

I think this solution is better than my previous one. Because:

1. We do not introduce any new public API
2. We optimize performance without any boolean flags or conditions

[kperryua]

Or may be we can do the whole different thing.

It's certainly worth a try. If 15 type checks are cheaper than a single protocol conformance check, then maybe that's the better option. There's some tradeoff with code size, but considering this code isn't inlined into clients, that shouldn't be a primary concern.

[xwu]

this code isn't inlined into clients

I'd imagine it also mustn't be (and if implemented in this way should be called out as such) because, on ABI stable platforms, adding a new integer or floating-point type would bring all sorts of backdeployment trouble...

[ChrisBenua]

It's certainly worth a try. If 15 type checks are cheaper than a single protocol conformance check

They certainly are faster. Because type check, as far as I remember, require just comparing isa-pointers when casting to a class. That should be much faster than linear-scan all protocol-conformance-descriptors when casting to protocols

@kperryua I've updated my PR where I replaced as? _JSONDirectArrayEncodable with 15 if conditions. Benchmarks are fine, I've posted updated benchmark results in my PR comment:
#1481

[ChrisBenua]

Merged in #1481.
