Plugin Structure

All plugins are registered to Composer autoloader manually. It needs a plugin.json file to provide all needed information for auto loading.

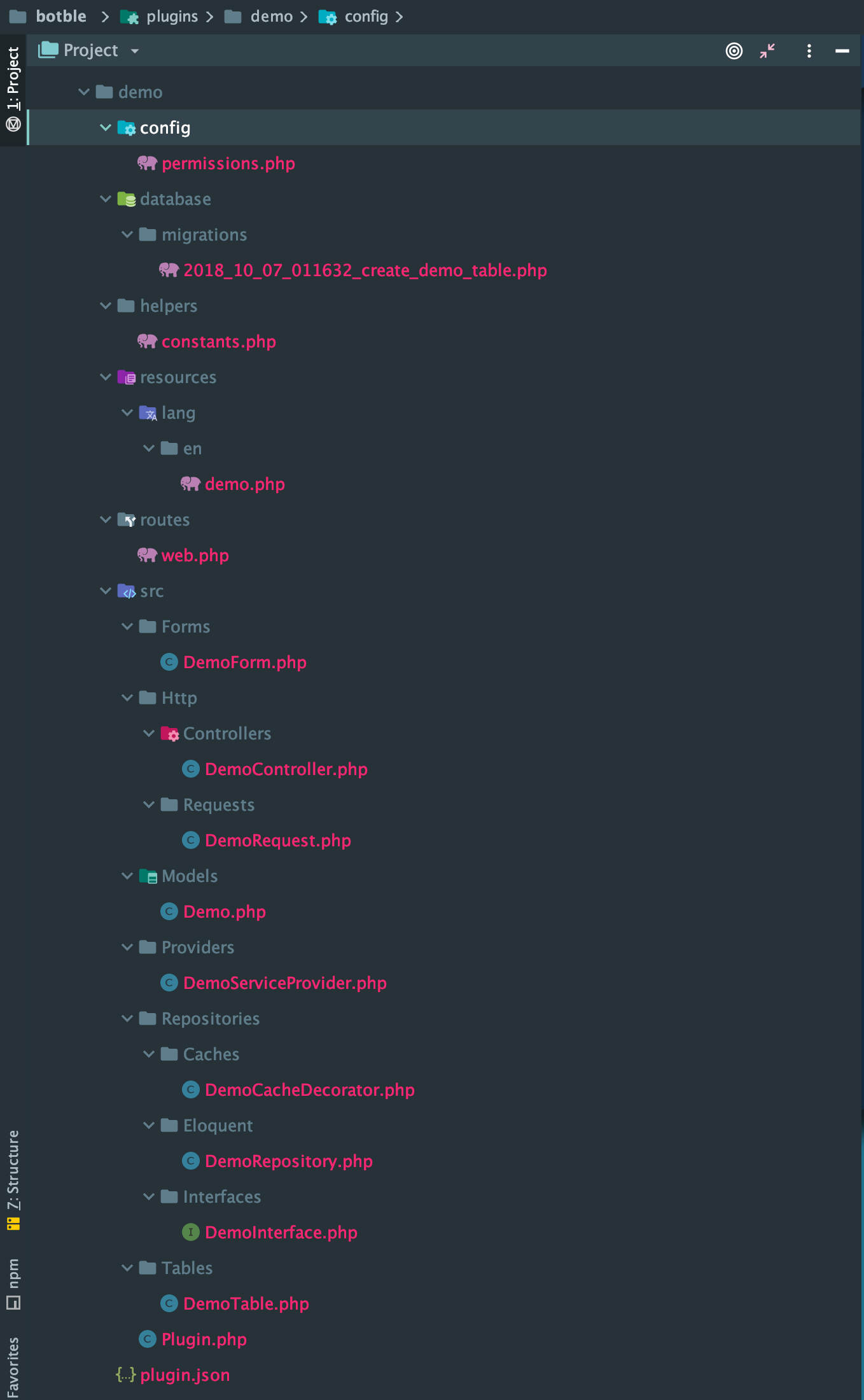

A basic plugin structure.

• plugin.json: All information about this plugin.

Example:

{
    "name": "Demo",
    "namespace": "Botble\\Demo\\",
    "provider": "Botble\\Demo\\Providers\\DemoServiceProvider",
    "author": "Sang Nguyen",
    "url": "https://sangnguyen.info",
    "version": "1.0",
    "description": "The description for plugin demo"
}

• src/Plugin.php: Using to handle activate, deactivate, remove events for plugin.

Example:

namespace Botble\Demo;

use Schema;
use Botble\Base\Interfaces\PluginInterface;

class Plugin implements PluginInterface
{

    /**
     * @author Sang Nguyen
     */
    public static function activate()
    {
    }

    /**
     * @author Sang Nguyen
     */
    public static function deactivate()
    {
    }

    /**
     * @author Sang Nguyen
     */
    public static function remove()
    {
        Schema::dropIfExists('demos'); // Remove table demo when removing plugin "demo"
    }
}

• config/permissions.php: Each plugin should have a configuration for permission. Permissions are codebase so we need to define it in this file.

Example:

return [
    [
        'name' => 'Demo',
        'flag' => 'demo.list',
    ],
    [
        'name' => 'Create',
        'flag' => 'demo.create',
        'parent_flag' => 'demo.list',
    ],
    [
        'name' => 'Edit',
        'flag' => 'demo.edit',
        'parent_flag' => 'demo.list',
    ],
    [
        'name' => 'Delete',
        'flag' => 'demo.delete',
        'parent_flag' => 'demo.list',
    ],
];

• database/migrations/2018_10_07_011632_create_demo_table.php: After generating a plugin, it'll create a first migration, you should modify it before activating a plugin. When activating a plugin, its migrations will run automatically.

Example:

use Illuminate\Database\Migrations\Migration;
use Illuminate\Database\Schema\Blueprint;

class CreateDemoTable extends Migration
{
    /**
     * Run the migrations.
     *
     * @return void
     */
    public function up()
    {
        Schema::create('demos', function (Blueprint $table) {
            $table->increments('id');
            $table->string('name', 120);
            $table->tinyInteger('status')->unsigned()->default(1);

            $table->timestamps();
            $table->engine = 'InnoDB';
        });
    }

    /**
     * Reverse the migrations.
     *
     * @return void
     */
    public function down()
    {
        Schema::dropIfExists('demos');
    }
}

• helpers/constants.php: to define all PHP constants for this plugin. It must have a constant for its screen name.

Example:

if (!defined('DEMO_MODULE_SCREEN_NAME')) {
    define('DEMO_MODULE_SCREEN_NAME', 'demo');
}

• resources/lang/en/demo.php: language for your plugin. If you need to translate to more languages, let add new translation file. Ex: resources/lang/vi/demo.php

Example:

return [
    'name' => 'Demo',
    'create' => 'New demo',
    'edit' => 'Edit demo',
];

• routes/web.php: Routes for this plugin. You can create routes\api.php if you need to work on API.

Example:

Route::group(['namespace' => 'Botble\Demo\Http\Controllers', 'middleware' => 'web'], function () {

    Route::group(['prefix' => config('core.base.general.admin_dir'), 'middleware' => 'auth'], function () {
        Route::group(['prefix' => 'demos'], function () {

            Route::get('/', [
                'as' => 'demo.list',
                'uses' => 'DemoController@getList',
            ]);

            Route::get('/create', [
                'as' => 'demo.create',
                'uses' => 'DemoController@getCreate',
            ]);

            Route::post('/create', [
                'as' => 'demo.create',
                'uses' => 'DemoController@postCreate',
            ]);

            Route::get('/edit/{id}', [
                'as' => 'demo.edit',
                'uses' => 'DemoController@getEdit',
            ]);

            Route::post('/edit/{id}', [
                'as' => 'demo.edit',
                'uses' => 'DemoController@postEdit',
            ]);

            Route::get('/delete/{id}', [
                'as' => 'demo.delete',
                'uses' => 'DemoController@getDelete',
            ]);

            Route::post('/delete-many', [
                'as' => 'demo.delete.many',
                'uses' => 'DemoController@postDeleteMany',
                'permission' => 'demo.delete',
            ]);
        });
    });

});

• src/Forms/DemoForm.php: Create and update form.

• src/Http/Controllers/DemoController.php: Controller, you can create many controllers as you want.

• src/Http/Requests/DemoRequest.php: Request to validate submit form.

• src/Models/Demo.php.

• src/Providers/DemoServiceProvider.php: This is the main file of a plugin. A plugin must have this file.

Example:

public function register()
{
    if (setting('enable_cache', false)) { // Check if cache is enabled or disabled.
        // Binding repositories if cache is enabled.
        $this->app->singleton(DemoInterface::class, function () {
            return new DemoCacheDecorator(new DemoRepository(new Demo()), new Cache($this->app['cache'], DemoRepository::class));
        });
    } else {
        // Binding repositories if cache is disabled.
        $this->app->singleton(DemoInterface::class, function () {
            return new DemoRepository(new Demo());
        });
    }

    Helper::autoload(__DIR__ . '/../../helpers'); // Load all constants/helpers from helpers folder.
}

public function boot()
{
    $this->setIsInConsole($this->app->runningInConsole())
        ->setNamespace('plugins/demo') // Set namespace of a plugin, it's used for views/lang. Example: view('plugins.demo::create'), trans('plugins.demo::demo.create')
        ->loadAndPublishConfigurations(['permissions']) // Load configuration from config folder.
        ->loadAndPublishViews()
        ->loadAndPublishTranslations()
        ->loadRoutes(); // Load route. It's equal ->loadRoutes(['web']), if you need to work on API, you can add "api" to load it.

    // Register plugin menu to admin menu
    Event::listen(SessionStarted::class, function () {
        dashboard_menu()->registerItem([
            'id' => 'cms-plugins-demo', // Id of menu. It must be unique
            'priority' => 5, // Position of plugin
            'parent_id' => null, // Parent ID, if it's not null, this menu will be submenu
            'name' => trans('plugins.demo::demo.name'),
            'icon' => 'fa fa-list',
            'url' => route('demo.list'),
            'permissions' => ['demo.list'], // Permission key, it's defined in /config/permisisons.php
        ]);
    });
}

• src/Repositories: Define all needed repositories for plugin models.

• src/Tables/DemoTable.php: Using in listing page.
